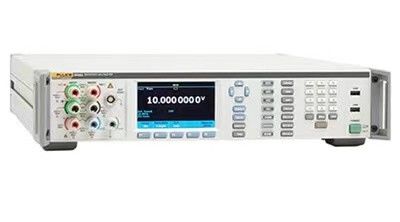

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit

Name: ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 8588A
Availability: InStock

Brand Name:	Fluke
Model Number:	8588A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Certification:

ISO:17025 Accredited Calibration

Product Name:

Digit Reference Multimeter

Digit Resolution:

8.5

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Highlight:

ISO 17025 Fluke 8588A Reference Multimeter

Fluke 8588A 8.5 Digit Multimeter

8.5 Digit Multimeter With Probe Kit

Product Description

Fluke 8588A Reference Multimeter 8.5 Digits an improved alternative for 8508A

Description of Fluke 8588A

The 8558A 8.5 digit multimeter offers 5 mega-samples-per-second high resolution digitizing for system automation in labs and manufacturing test environments. Fluke’s new high-speed system design and the industry’s fastest direct digitizing capability enable significant throughput increases for many automated system applications that require a combination of highest speed and best accuracy. The superb accuracy is delivered over a wide measurement range, over nine functions, with an intuitive user interface on a color display.

The 8558A shares the same platform as the fully loaded 8588A Reference Multimeter. The platform features a common intuitive user interface with easy-to-navigate menu structure for all configuration and matching SCPI-compliant commands for automated environment. The 8588A platform guarantees a minimum of 100,000 readings per second at 4.5 digits across GPIB, USBTMC or Ethernet, and an onboard data memory that can hold up to 15 million readings.

Accurate data, delivered amazingly fast

Shorter test time on the 8588A/8558A high-speed digital platform enables you to increase throughput, improve yield and realize a greater return on your investment. The 8588A/8558A digitizes to memory at 200 nanoseconds per reading and delivers 4.5 digit data to a PC via USB, Ethernet and GPIB at 100,000 readings per second. Fast, high resolution data capture gives you the quantity and quality of information you need to make timely, correct decisions affecting system throughput and efficiency.

0 ns to 100 s aperture setting allows industry’s widest flexibility to control data capture window
Reading speed: 1 reading /s @ 8.5 digits to 100,000 reading /s @ 4.5 digits
Data transfer from memory to PC: up to 500,000 readings /s in binary format through USB, up to 200,000 through Ethernet and GPIB

Model Name

Description

8558A

8.5 Digit Multimeter

Includes:

Meter
8588A-LEAD KIT-OSP General purpose probe kit & pouch with 2x 4-way shorting PCB

8588A

Reference Multimeter

Includes:

Meter
8588A-LEAD KIT-OSP General purpose probe kit & pouch with 2x 4-way shorting PCB

Accessories common to all models:

Accessory	Description
Y8588	Rack Mount Kit (2U – 3.5 in)
Y8588S	Slide Rack Mount Kit
8588A-LEAD	Comprehensive Measurement Lead Kit Includes: 1x 8588A-LEAD KIT-OSP 1x 1 m screen 322/0.1 copper (30 Amp Rating) with 6 mm gold plated copper spade terminals 4X 8588A-LEAD/THERMAL 2x locking adapter 4 mm binding post to safety
8588A-SHORT	4-Way Shorting PCB
8588A-LEAD/THERMAL	Low Thermal Lead Kit
8588A-7000K	Cal Kit with 1 Gohm Standard and Connecting Leads
96000SNS	Additional Power Sensor
8588A/CASE	Transit Case

8558A key features and performance

DC voltage

100 mV to 1000 V, (1050V max)
2.02x full scale
Maximum resolution: 1 nV
4.0 μV/V (95 %) 5.7 μV/V (99 %), 1 year
0.5 μV/V (95 %) 0.65 μV/V (99 %), 24 hour stability
0 to 10 s reading aperture (200 ns resolution)

DC current

10 uA to 2 A (8558A)
2.02x full scale
Maximum resolution: 1 pA
9 μA/A (95 %), 12 μA/V (99 %), 1 year
0 ns to 100 s reading aperture

AC voltage

10 mV to 1000 V, 1 Hz to 10 MHz, (1050 Vrms max)
2.02x full scale Vpp, 1.2x full scale Vrms
Maximum resolution: 1 nV
80 μV/V (95 %), 103 μV/V (99 %), 1 year

AC current

10 uA to 30 A (8588A only; 2 A for 8558A)
2.02x full scale Vpp, 1 Hz to 100 kHz 1.2x full scale Vrms
Maximum resolution: 1 pA
300 μA/A (95 %), 387 μA/V (99 %), 1 year

Resistance

1Ω to 10 GΩ (20 GΩ max)
2.02x full scale
Maximum resolution: 10 nΩ
10 μΩ/Ω (95 %), 13 μΩ/Ω (99 %), 1 year
Low current mode, high voltage mode and current-reversal Tru Ohms™

Digitize V

100 mV to 1000 V, (1050 V max)
2.02x full scale
Maximum resolution: 18 bits
5 mega-samples per second sample rate
Up to 20 MHz bandwidth

Digitize I

10 μA to 30 A (8588A only; 2 A for 8558A)
2.02x full scale
Maximum resolution: 18 bits
5 mega-samples per second sample rate
Up to 4 MHz bandwidth

Frequency or period

Voltage, up to 10 MHz
Current, up to 100 kHz
Frequency up to 100 MHz on BNC
0.5 μHz/Hz, 1 year

Capacitance

1 nF to 100 mF
400 μF/F, 1 year

Temperature

PRT and thermocouple
5 mK PRT, 25 mK TC - 1 year

RF power

Rhode & Schwarz NRP series DC I and AC I external shunt

DC I and AC I external shunt

A40B and any other external shunt

Reading speed

1 reading /s @ 8.5 digit into memory
100,000 readings /s @ 4.5 digit into memory
Up to 5,000,000 (5 MS/s) readings /s into volatile memory in digitize V and I
Up to 500,000 readings/s transfer through USB in binary format

Measurement memory

15 million readings volitile
7.5 million readings with volitile time stamp
16 GB non-volitile

GPIB, USBTMC, Ethernet

Native SCPI compliant remote commands
8508A and 3458A emulation mode
Fully support MET/CAL™ calibration procedures library in Fluke 8508A emulation
IVI driver
USB thumb drive for convenient data transfer in .csv format

Trigger mechanisms

Manual trigger
External BNC Trig In and Trig Out
Internal or level trigger
Timer trigger
Epoch trigger
Line trigger
BUS trigger

FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit 0

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit 1

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit 2

Tags:

Products Details

Home Products

Multi Function Calibrator

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit

All Category

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit

Brand Name:	Fluke
Model Number:	8588A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Brand Name:

Fluke

Certification:

ISO:17025 Accredited Calibration

Model Number:

8588A

Product Name:

Digit Reference Multimeter

Digit Resolution:

8.5

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Minimum Order Quantity:

1 set

Price:

Negotiation

Payment Terms:

T/T

Supply Ability:

in stock

Highlight:

ISO 17025 Fluke 8588A Reference Multimeter

Fluke 8588A 8.5 Digit Multimeter

8.5 Digit Multimeter With Probe Kit

Product Description

Fluke 8588A Reference Multimeter 8.5 Digits an improved alternative for 8508A

Description of Fluke 8588A

Accurate data, delivered amazingly fast

0 ns to 100 s aperture setting allows industry’s widest flexibility to control data capture window
Reading speed: 1 reading /s @ 8.5 digits to 100,000 reading /s @ 4.5 digits
Data transfer from memory to PC: up to 500,000 readings /s in binary format through USB, up to 200,000 through Ethernet and GPIB

Model Name

Description

8558A

8.5 Digit Multimeter

Includes:

Meter
8588A-LEAD KIT-OSP General purpose probe kit & pouch with 2x 4-way shorting PCB

8588A

Reference Multimeter

Includes:

Meter
8588A-LEAD KIT-OSP General purpose probe kit & pouch with 2x 4-way shorting PCB

Accessories common to all models:

Accessory	Description
Y8588	Rack Mount Kit (2U – 3.5 in)
Y8588S	Slide Rack Mount Kit
8588A-LEAD	Comprehensive Measurement Lead Kit Includes: 1x 8588A-LEAD KIT-OSP 1x 1 m screen 322/0.1 copper (30 Amp Rating) with 6 mm gold plated copper spade terminals 4X 8588A-LEAD/THERMAL 2x locking adapter 4 mm binding post to safety
8588A-SHORT	4-Way Shorting PCB
8588A-LEAD/THERMAL	Low Thermal Lead Kit
8588A-7000K	Cal Kit with 1 Gohm Standard and Connecting Leads
96000SNS	Additional Power Sensor
8588A/CASE	Transit Case

8558A key features and performance

DC voltage

100 mV to 1000 V, (1050V max)
2.02x full scale
Maximum resolution: 1 nV
4.0 μV/V (95 %) 5.7 μV/V (99 %), 1 year
0.5 μV/V (95 %) 0.65 μV/V (99 %), 24 hour stability
0 to 10 s reading aperture (200 ns resolution)

DC current

10 uA to 2 A (8558A)
2.02x full scale
Maximum resolution: 1 pA
9 μA/A (95 %), 12 μA/V (99 %), 1 year
0 ns to 100 s reading aperture

AC voltage

10 mV to 1000 V, 1 Hz to 10 MHz, (1050 Vrms max)
2.02x full scale Vpp, 1.2x full scale Vrms
Maximum resolution: 1 nV
80 μV/V (95 %), 103 μV/V (99 %), 1 year

AC current

10 uA to 30 A (8588A only; 2 A for 8558A)
2.02x full scale Vpp, 1 Hz to 100 kHz 1.2x full scale Vrms
Maximum resolution: 1 pA
300 μA/A (95 %), 387 μA/V (99 %), 1 year

Resistance

1Ω to 10 GΩ (20 GΩ max)
2.02x full scale
Maximum resolution: 10 nΩ
10 μΩ/Ω (95 %), 13 μΩ/Ω (99 %), 1 year
Low current mode, high voltage mode and current-reversal Tru Ohms™

Digitize V

100 mV to 1000 V, (1050 V max)
2.02x full scale
Maximum resolution: 18 bits
5 mega-samples per second sample rate
Up to 20 MHz bandwidth

Digitize I

10 μA to 30 A (8588A only; 2 A for 8558A)
2.02x full scale
Maximum resolution: 18 bits
5 mega-samples per second sample rate
Up to 4 MHz bandwidth

Frequency or period

Voltage, up to 10 MHz
Current, up to 100 kHz
Frequency up to 100 MHz on BNC
0.5 μHz/Hz, 1 year

Capacitance

1 nF to 100 mF
400 μF/F, 1 year

Temperature

PRT and thermocouple
5 mK PRT, 25 mK TC - 1 year

RF power

Rhode & Schwarz NRP series DC I and AC I external shunt

DC I and AC I external shunt

A40B and any other external shunt

Reading speed

1 reading /s @ 8.5 digit into memory
100,000 readings /s @ 4.5 digit into memory
Up to 5,000,000 (5 MS/s) readings /s into volatile memory in digitize V and I
Up to 500,000 readings/s transfer through USB in binary format

Measurement memory

15 million readings volitile
7.5 million readings with volitile time stamp
16 GB non-volitile

GPIB, USBTMC, Ethernet

Native SCPI compliant remote commands
8508A and 3458A emulation mode
Fully support MET/CAL™ calibration procedures library in Fluke 8508A emulation
IVI driver
USB thumb drive for convenient data transfer in .csv format

Trigger mechanisms

Manual trigger
External BNC Trig In and Trig Out
Internal or level trigger
Timer trigger
Epoch trigger
Line trigger
BUS trigger

FAQ:

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit 0

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit 1

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit 2

Tags:

RF Spectrum Analyzer

Signal Spectrum Analyzer

Optical Spectrum Analyzer

Vector Network Analyzer

RF Signal Generator

RF Communications Test Set

Analog Digital Oscilloscope

AC DC Variable Power Supply

RF Power Meter

Multi Function Calibrator

EMC Test System

Electronic Test And Measurement Equipment

EMC Test Equipment

RF Power Sensor

RF Spectrum Analyzer

Signal Spectrum Analyzer

Optical Spectrum Analyzer

Vector Network Analyzer

RF Signal Generator

RF Communications Test Set

Analog Digital Oscilloscope

AC DC Variable Power Supply

RF Power Meter

Multi Function Calibrator

EMC Test System

Electronic Test And Measurement Equipment

EMC Test Equipment

RF Power Sensor

products details

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit

ISO 17025 Fluke 8588A Reference Multimeter

Fluke 8588A 8.5 Digit Multimeter

8.5 Digit Multimeter With Probe Kit

Accurate data, delivered amazingly fast

Accessories common to all models:

8558A key features and performance

FAQ:

Products Details

RF Spectrum Analyzer

Signal Spectrum Analyzer

Optical Spectrum Analyzer

Vector Network Analyzer

RF Signal Generator

RF Communications Test Set

Analog Digital Oscilloscope

AC DC Variable Power Supply

RF Power Meter

Multi Function Calibrator

EMC Test System

Electronic Test And Measurement Equipment

EMC Test Equipment

RF Power Sensor

ISO 17025 Fluke 8588A Reference Multimeter 8.5 Digits With General Purpose Probe Kit

ISO 17025 Fluke 8588A Reference Multimeter

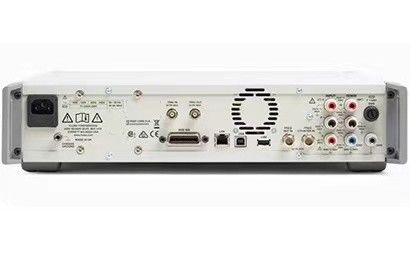

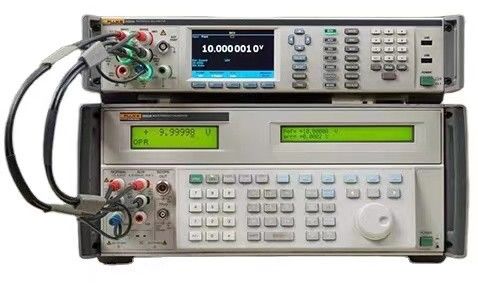

Fluke 8588A 8.5 Digit Multimeter

8.5 Digit Multimeter With Probe Kit

Accurate data, delivered amazingly fast

Accessories common to all models:

8558A key features and performance

FAQ:
