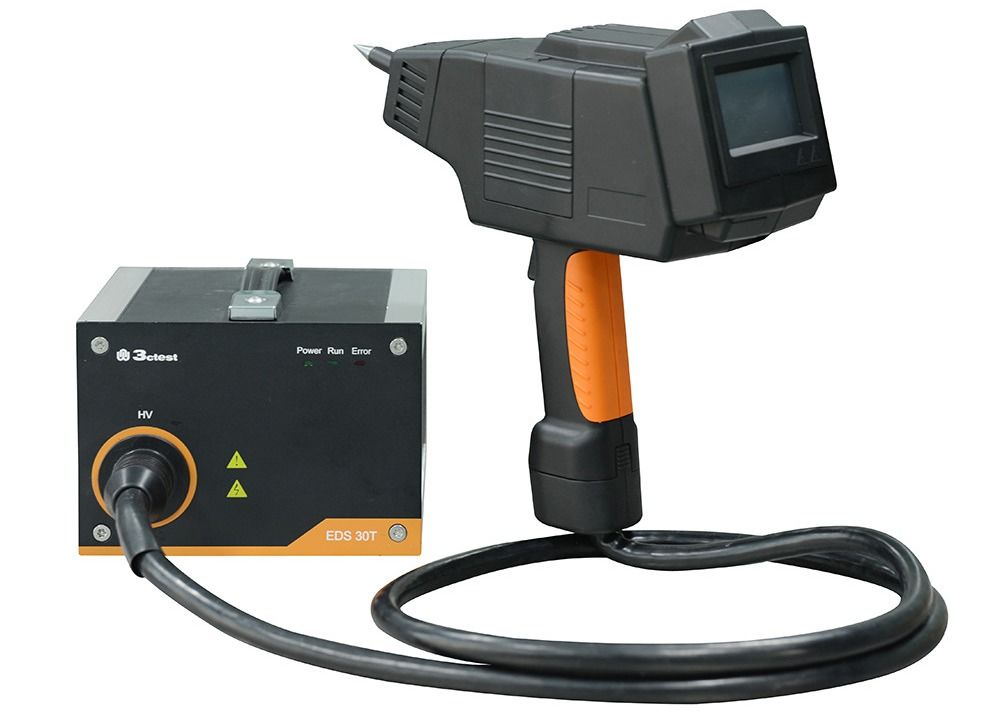

EDS 30T 30 KV Electrostatic Discharge Simulator with Touch Screen Control and Changeable RC Module ESD Tester

Name: EDS 30T 30 KV Electrostatic Discharge Simulator with Touch Screen Control and Changeable RC Module ESD Tester
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: EDS 30T
Availability: InStock

Brand Name:	3ctest
Model Number:	EDS 30T
MOQ:	1
Price:	Negotiation
Delivery Time:	1~3 Working Days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

CHINA

Certification:

IEC/EN 61000-4-2

Type:

Electrostatic Discharge Simulator

Model:

EDS 30T

Condition:

Pre-Owned/brand New

Functions:

Tested, In Full Working Conditions

Calibration:

Packaging Details:

Carton

Supply Ability:

In Stock

Highlight:

EDS 30T Electrostatic Discharge Simulator

30 kV Electrostatic Discharge Simulator

IEC 61000-4-2 ESD Generator

Product Description

EDS 30T Electrostatic Discharge Simulator 30 kV IEC 61000-4-2 ESD Tester EMC Test Systems

Product Overview

The EDS 30T Electrostatic Discharge Simulator is designed in compliance with EN/IEC 61000-4-2 standards with output voltage up to 30 kV. Featuring ergonomic design, it integrates discharge tips and touch screen control into a single unit. The EDS 30T offers easy-to-operate touch screen interface, built-in temperature and humidity meter, and changeable RC module, ensuring reliability across various test environments. Available with AC power or battery box for flexible power supply options.

Key Features

Ergonomic design
LCD touch screen interface
All-in-one design (no base unit required)
Changeable R/C networks
Automatic polarity switching
Battery or mains operation with long battery life
Built-in temperature and humidity monitoring
Integrated standard test library
Intelligent detection of air discharge failures

Compliance Standards

Bellcore GR-1089-Core
ISO 14304
IEC 61000-6-2
IEC 61000-6-1
IEC 61326
IEC 61340-3-1
IEC 61000-4-2
GB/T 17626.2
EN 61000-6-1
EN 61000-6-2
EN 61326
ITU-T K.20

Technical Specifications

Parameter	Specification
Contact discharge	200 V - 30,000 V (±5%)
Air discharge	200 V - 30,000 V (±5%)
Voltage step	100 V
Hold time	> 5 s
Polarity	Positive, negative
RC module recognition	Automatic recognition & LCD display
Temperature and humidity	Built-in meter with record and protection functions
Repetition frequency	Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger mode	Manual / automatic
Pulse Counter	1-9999
Contact discharge	150pF / 330 ohm
Rise time	0.8 ns +/- 25%
Quick start test program	Simple and easy to reset data online
Evaluate procedure	Contact discharge test at 20 Hz, evaluate DUT test points
Standard Test Procedure	Compliant with EN/IEC 61000-4-2
Weight	Approx. 12.0 kg
Weight (EDS gun)	Approx. 2.0 kg
Temperature (operation)	15 ℃ - 35 ℃
Humidity (operation)	30% - 60%
Air pressure	86 kPa - 106 kPa
Working power supply	100 V - 240 V (±10%); 50/60 Hz (default AC 220 V 50 Hz for China Mainland)

Our Services

One-stop service from manufacture to shipping

Inquiry response within 24 hours

Well-trained English-speaking support staff

Distributor program for unique designs and current models

Protection of sales areas, design ideas, and private information

Frequently Asked Questions

Can you ship orders to Canada or Australia?

Yes, we ship worldwide.

What delivery methods do you use and what is the delivery time?

We ship via EMS, DHL, FedEx, UPS, TNT with tracking. Delivery time is typically 4-7 business days.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other questions?

You can contact us online or leave messages below.
