EDS 20H Handheld ESD Simulator Gun with Ergonomic Design LCD Touch Screen and Battery Powered for Electrostatic Discharge Testing

Name: EDS 20H Handheld ESD Simulator Gun with Ergonomic Design LCD Touch Screen and Battery Powered for Electrostatic Discharge Testing
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: EDS 20H
Availability: InStock

Brand Name:	3ctest
Model Number:	EDS 20H
MOQ:	1
Price:	Negotiation
Delivery Time:	1~3 Working Days
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

IEC/EN 61000-4-2

Contact Discharge:

150 PF / 330 Ω

Voltage Step:

100 V

Pulse:

1 – 9,999

Trigger Mode:

Manual / Automatic

Operating Temperature:

15 ℃-35 ℃

Weight:

Approx. 8.5 Kg

Weight(EDS Gun):

Approx. 1.8 Kg

Packaging Details:

Carton

Supply Ability:

In Stock

Highlight:

EDS 20H Electrostatic Discharge Simulator

Handheld Electrostatic Discharge Simulator

Ergonomic ESD Simulator Gun

Product Description

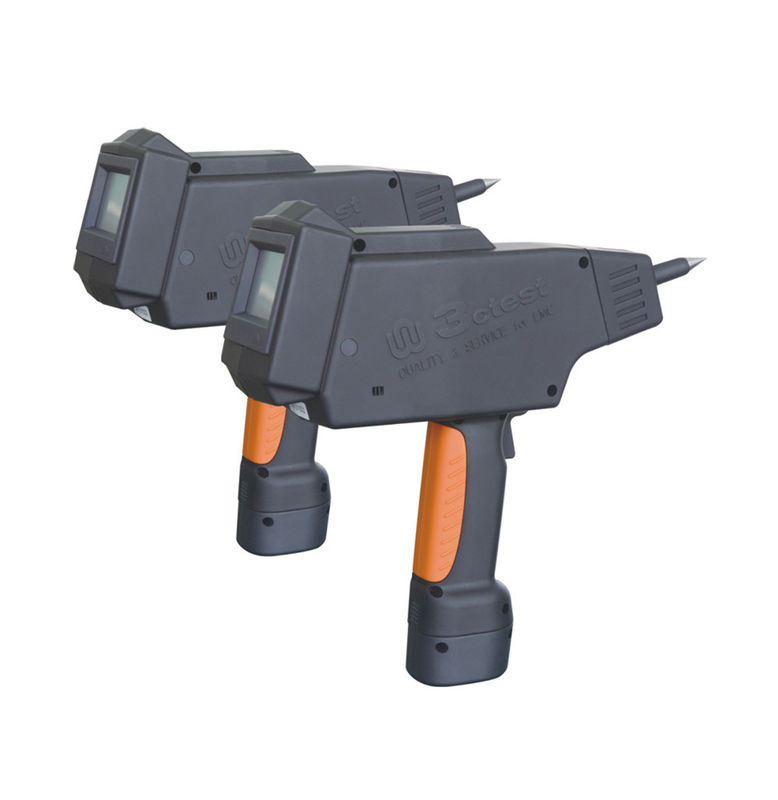

EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun

Electrostatic discharge between human body and metal objects can reach thousands of volts, potentially causing malfunctions or damage to connected electrical equipment. The EDS 20H Handheld Electrostatic Discharge Simulator is a state-of-the-art ESD generator, representing the first of its kind independently researched and developed in China. Designed according to IEC/EN 61000-4-2 standards, it features ergonomic design, integrated construction, battery power with optional mains adapter operation, intuitive touch screen controls, built-in temperature and humidity monitoring for safe operation, and stable performance suitable for various testing environments.

Key Features

Ergonomic design for comfortable handling
LCD touch screen interface
All-in-one design (no base unit required)
Changeable R/C networks
Automatic polarity switching
Long battery life for continuous testing
Temperature and humidity monitoring
Built-in standards library
Intelligent detection of air discharge failure

Compliance Standards

Bellcore GR-1089-Core
ISO 14304
IEC 61000-6-2
IEC 61000-6-1
IEC 61326
IEC 61340-3-1
IEC 61000-4-2
GB/T 17626.2
EN 61000-6-1
EN 61000-6-2
EN 61000-4-2
EN 61326
ITU-T K.20

Technical Parameters

Parameter	Specification
Contact discharge	1 kV - 20 kV (±5%)
Air discharge	1 kV - 20 kV (±5%)
Voltage step	100 V
Hold time	>5 s
Polarity	Positive, negative
RC module display	LCD display
Humidity & Temperature	Built-in hygrothermograph for recording and protection
Repetition frequency	Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger mode	Manual / automatic
Pulse count	1 - 9,999
Contact discharge network	150 pF / 330 Ω
Summary Procedure	Test according to different standard levels
Rise Time	0.8 ns ± 25%
Quick Start Test Program	Simple and easy to reset data online
Evaluation Procedure	Contact discharge test at 20 Hz, evaluate DUT test points
Standard Test Procedure	According to IEC / EN 61000-4-2

General Parameters

Parameter	Specification
Operating Temperature	15 ℃ - 35 ℃
Operating Humidity	30% - 60%
Operating Air Pressure / Power	100 V / 240 V (±10%); 50 / 60Hz Default: 220 V, 50 Hz (Mainland China)
Total Weight	Approx. 8.5 kg
EDS Gun Weight	Approx. 1.8 kg
