EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun

EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun

  • EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun
  • EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun
EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun
Product Details:
Place of Origin: China
Brand Name: 3ctest
Certification: IEC/EN 61000-4-2
Model Number: EDS 20H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Contact Discharge: 150 PF / 330 Ω Voltage Step: 100 V
Pulse: 1 – 9,999 Trigger Mode: Manual / Automatic
Operating Temperature: 15 ℃-35 ℃ Weight: Approx. 8.5 Kg
Weight(EDS Gun): Approx. 1.8 Kg
High Light:

EDS 20H Electrostatic Discharge Simulator

,

Handheld Electrostatic Discharge Simulator

,

Ergonomic ESD Simulator Gun

EDS 20H Handheld Electrostatic Discharge Simulator

Profile

The ESD Simulator Guns EDS 20H is the state-of-art handheld ESD generator, and the first of its kind independently researched and developed in China.



Electrostatic discharge between the human body and a metal object or between metal objects can reach up to thousands of volts, which may cause malefactions or damage to connected electrical equipment and devices.


The ESD Simulator Guns EDS 20H is the state-of-art handheld ESD generator, and the first of its kind independently researched and developed in China. It is designed according to IEC/EN 61000-4-2 with ergonomic design, integration design, battery-powered, and mains powered via an adaptor. It boasts easy touch screen operation, safe operation with temperature and humidity monitoring, and stable operation suitable for different testing occasions.



Feature

EDS 20H

Ergonomic design;
LCD touch screen;
All-in-one design (no base unit);
Changeable R / C networks;
Automatic polarity switching;
Long battery life for continuous tests;
Temperature and humidity monitoring;
Built-in standards library;
Intelligent detection of air discharge failure;



Parameter EDS 20H

Technical Parameters

Contact Discharge 1 kV – 20 kV(±5%)
Air Discharge 1 kV – 20 kV(±5%)
Voltage Step 100 V
Hold Time 5 s
Polarity Positive, negative
RC Module LCD display
Humidity &Temperature Built-in hygrothermograph, for recording and protection
Repetition Frequency Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger Mode Manual/automatic
Pulse 1 – 9,999
Contact Discharge 150 pF / 330 Ω
Su Mmary Procedure Test according to different standard levels
Rise Time 0.8 ns ± 25%
Quick Start Test Program Simple and easy to reset data online
Evaluation Procedure Contact discharge test at 20 Hzevaluate the test points of DUT
Standard Test Procedure According to IEC / EN 61000-4-2

General Parameters

Operating Temperature 15 -35
Operating Humidity 30%-60%
Operating Air Pressure 86 kPa-106 kPa
Operating Power 100 V / 240 V (±10%); 50 / 60Hz;
Default configuration: 220 V, 50 Hz (for Mainland China)
Weight Approx. 8.5 kg
Weight (EDS gun) Approx. 1.8 kg

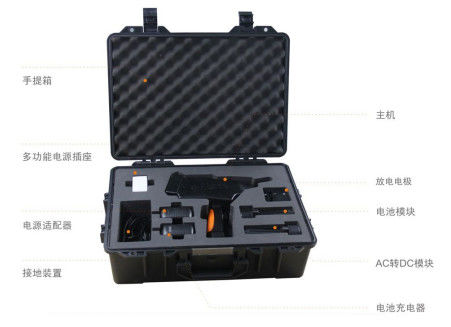

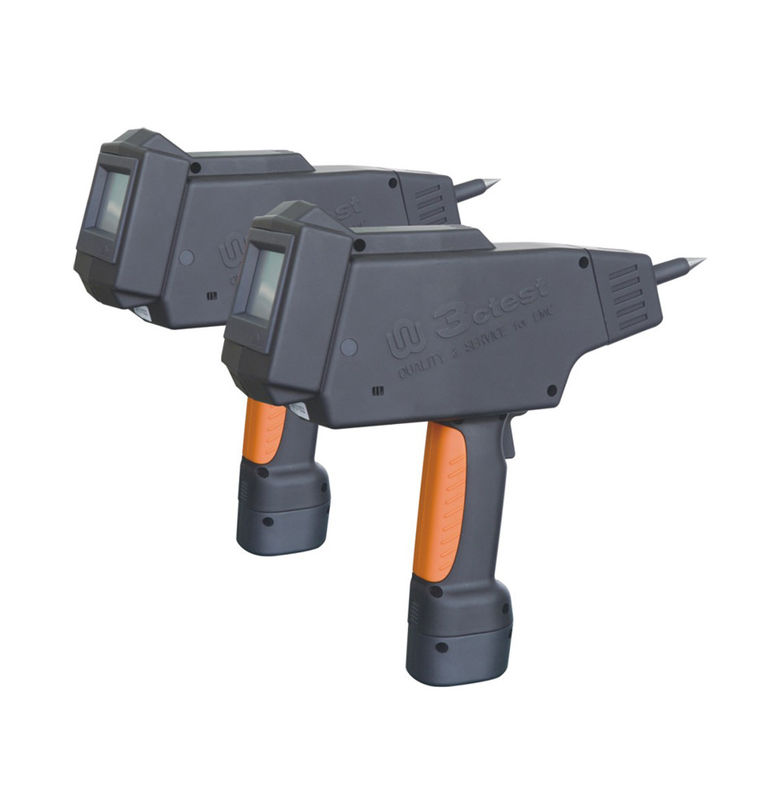

EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun 0EDS 20H Handheld Electrostatic Discharge Simulator Ergonomic ESD Simulator Gun 1
