TESEQ NSG 435 ESD Simulator 200 V To 16.5 KV Modularly Constructed

TESEQ NSG 435 ESD Simulator 200 V To 16.5 KV Modularly Constructed

  • TESEQ NSG 435 ESD Simulator 200 V To 16.5 KV Modularly Constructed
  • TESEQ NSG 435 ESD Simulator 200 V To 16.5 KV Modularly Constructed
  • TESEQ NSG 435 ESD Simulator 200 V To 16.5 KV Modularly Constructed
TESEQ NSG 435 ESD Simulator 200 V To 16.5 KV Modularly Constructed
Product Details:
Brand Name: TESEQ
Model Number: NSG 435
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Air Discharge Voltage: 200 V To 16.5 KV Contact Discharge Voltage: 200 V To 9 KV
Voltage Resolution: 100 Volt Steps Discharge Tips: Ball And Point As Per IEC
Pulse Networks: Network 150 PF/330 Ω As Per IEC/EN 61000-4-2 (included) Holding Time: Over 5 Seconds (±5%)
Polarity: Positive / Negative / Automatic Change Weight: 1.2 Kg (2.6 Lbs) Approx.
High Light:

TESEQ NSG 435 ESD Simulator

,

Modularly Constructed NSG 435 ESD Simulator

,

16.5 KV NSG 435 ESD Simulator

 NSG 435 ESD SIMULATOR



  • Programmable discharge voltage 200 V to 16.5 kV
  • Stabilized charging voltage
  • Pre-programmed IEC/EN 61000-4-2 test settings
  • True air-discharge breakdown voltage
  • Compact and lightweight design
  • Suitable for ANSI C63.16, RTCA/DO-160 and many more ESD immunity standards



Function Modules The NSG 435 simulator is modularly constructed from a number of function units that are all housed in a multi-part, molded shell.

TESEQ NSG 435 ESD Simulator 200 V To 16.5 KV Modularly Constructed 0

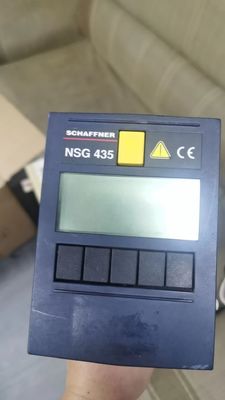

Ergonomic design and advanced functionality. The pistol-shaped NSG 435 simulator is designed to sit comfortably in the operator’s hand, with current operating conditions constantly displayed and clearly visible.



NSG 435’s microprocessor-based controller and multifunction keypad provide the operator with instant access to its comprehensive range of built-in functions. The LCD panel continuously displays the operating status and all user-selected test parameters.



NSG 435 has its own internal, battery-operated high-voltage generator. In addition to the pre-programmed, standard IEC pulses, the user can create custom tests using single or repetitive discharges with selectable rates and manual or automatic polarity switching. An optional mains supply is available for extended test operation or for use when the battery is being charged.



NSG 435 measures and displays true air breakdown voltages. It also detects real or valid air discharges, thereby avoiding misleading discharge counts. This is especially important during long-term tests and remote test setups.

A range of interchangeable discharge networks is available, including EN, ANSI-IEEE, and ISO. The unit comes with a standard 150 pF/330 Ω discharge network for tests to IEC/EN 61000-4-2.

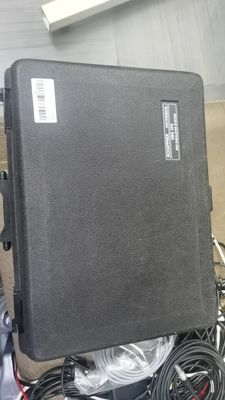

NSG 435 is supplied with standard accessories, including interchangeable test tips, a grounding cable, and a battery charger in a durable carrying case. There is an optional fiber optic remote control trigger for operation inside a screened room or enclosure. The LCD panel gives the operator a clear, continuous indication of all the test parameters, the operational status of the instrument, and the current function of each of the five softkeys.





DATA SHEET

Air Discharge Voltage 200 V to 16.5 kV
Contact Discharge Voltage 200 V to 9 kV
Voltage Resolution 100 Volt Steps
Radiation Rating II
Discharge tips Ball and point as per IEC
Pulse networks Network 150 pF/330 Ω as per IEC/EN 61000-4-2 (included)
Charging voltage measurement kV, accuracy better than ±5% (stabilized);measurement and display of true air fl ashover voltage
Discharge detection (air-discharge only) Indicated by an oval around the kV symbol, also acoustically in the'Single' operating mode (air-discharge only)
Holding time Over 5 seconds (±5%)
Polarity Positive / negative / automatic change
Operating modes Single, repetitive, continuous
Display LCD panel showing: charging voltage, discharge voltage, polarity,air-/contact-discharge, counter/preselect counter content, soft-keyfunctions, battery monitor
Discharge Repetition 0.5/1/5/10/20 or 25 Hz (air); 0.5/1/5 or 10 Hz (contact);
Discharge Counter 0 to 9999
Standards Met IEC/EN 61000-4-2, ANSI C63.16, RTCA/DO-160
Weight 1.2 kg (2.6 lbs) approx.
