TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal

TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal

  • TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal
  • TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal
  • TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal
  • TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal
  • TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal
  • TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal
TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal
Product Details:
Brand Name: TESEQ
Model Number: NSG 5600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Interface: IEEE 488 (GPIB) AC Operating Voltage & Frequency Ranges: 100 V / 120 V / 220 V / 240 V, 47 – 63 Hz
Rack Weight: NSG 5601: 18 Kg (39.7 Lbs) NSG 5602: 26 Kg (57.4 Lbs) Modules: 3(7HU)/ 6 (14 HU)
High Light:

TESEQ NSG 5600 Function Generator

,

TESEQ NSG 5500 Function Generator

,

Function Generator For Test Sinusoidal

TESEQ NSG 5600 Function Generator - Voltage/Magnetic Field/Sinusoidal

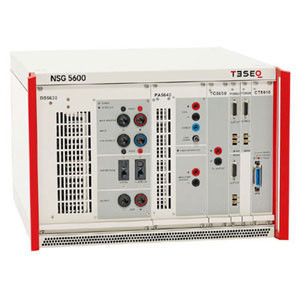

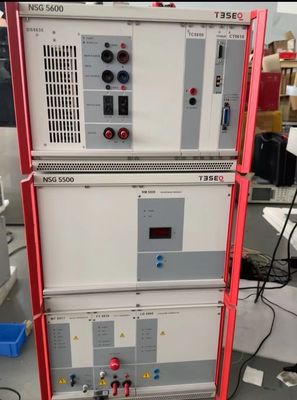

Designed to be used either alone or in combination with an NSG 5500 system, the NSG 5600 is designed to simulate events that include voltage dropouts, sinusoidal noise, and other events superimposed on the automotive battery: Dips and drops, and ISO and SAE pulse 2b and pulse 4 and other starting profiles. The NSG 5600 is the leader in synchronized voltage variations, such as power cycling tests (on up to four FGs) as required by various standards such as CI 230 defined in the Ford ES-XW7T-1A278-AB and AC standards. Additionally, the NSG 5600 may be configured for magnetic field immunity testing.



AC operating voltage & frequency ranges 100 V / 120 V / 220 V / 240 V, 47 – 63 Hz
Dimensions 19” desktop housing (rack mountable), height 330 mm (13”), depth 510 mm (20”)
Interface IEEE 488 (GPIB)
Rack weight NSG 5601: 18 kg (39.7 lbs)
NSG 5602: 26 kg (57.4 lbs)
Safety interlocks Yes

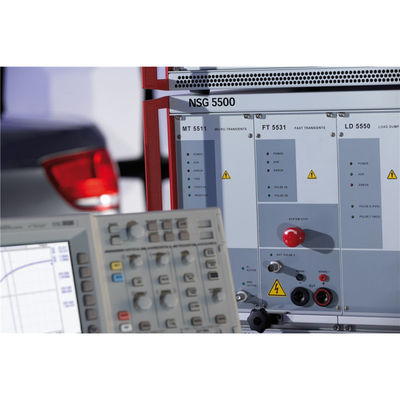

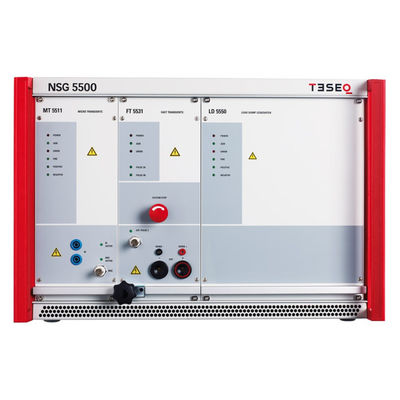

The compact and modular NSG 5500 solution offers the generators necessary for tests with capacitive discharge pulsed interference as called for by ISO, SAE, DIN JASO, and others. The established test specifications for passenger cars together with the new standards for commercial vehicles published by these international and other bodies are fully covered, as are the most company-specific standards from vehicle manufacturers. Based on our exclusive Gemini technology, Teseq offers the most flexible and upgradeable system to protect the user’s investment. NSG 5500 system. This compact mainframe houses the common system components and accommodates the standard pulse generators. All testing is available from one output connector. An electronic switch to connect and disconnect the battery supply is incorporated in the NSG 5500. Additional inputs and outputs are located on the rear panel for test execution control purposes and the monitoring of error signals, oscilloscope triggers, gate start/stop commands, etc. Overall control is via a PC running AutoStar™ under Windows.



TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal 0TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal 1TESEQ NSG 5600/5500 Function Generator For Test Voltage/Magnetic Field/Sinusoidal 2
