Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control

Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control

  • Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control
  • Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control
  • Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control
  • Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control
Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control
Product Details:
Place of Origin: Japan
Brand Name: Kikusui
Model Number: PCR4000W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: DC Power Supply Number Of Outputs: 1
Total Power: 20 To 300 W Nominal Input Ratings:: 100 VAC - 240 VAC; 50/60/400 Hz
Input Range:: 86 VAC - 264 VAC Power Consumption:: 1500 VA Typical
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

High Power DC Power Supply 300W

,

RS232C Control DC Power Supply

,

GPIB Control DC Power Supply

PCR4000W Kikusui AC Source



Additional Features:



Output Voltage Range: 1-150V, 2-300V

Max Current: 40A/20A

Single phase; 4 kVA

Frequency Range: 1 Hz-500 Hz

Output Power: 4000 Watts

Output voltage/current real effective value, peak value, DC mean value, and electric power are displayed on the panel

Achieves less than 0.5% voltage waveform distortion

60μs of voltage response speed

Applicable to GPIB or RS-232C control

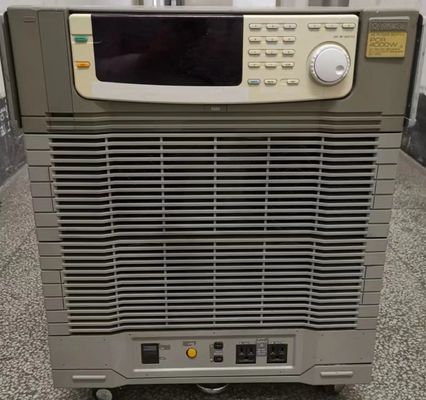

Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control 0

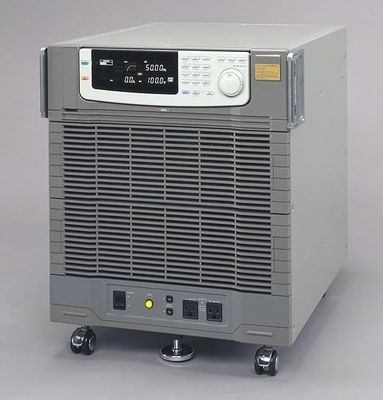

Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control 1

Details:



With a primary development concept of improved efficiency and low cost, the PCR4000W, regulated AC power supply, features a balance of performance, function, quality, and cost based on the technology and know-how established with the PCR-L Series of products. Specifically, PWM inverter system was used for the power unit, providing the power supply with improved efficiency (by approximately 75 %), low-input current demand, and a considerably downsized and lightweight package design.



The PCR-W/W2-Series power supply features a wide input range and high-quality, powerful output (as well as a reduction in low-waveform distortion, and the provision of high response speed and low power-factor load) for worldwide application, and is equipped not only with measurement and output capabilities for AC parameters such as RMS value, peak value, power, and power factor, but also with DC output and AC+DC output modes. With these features, the capabilities of the PCR-W/W2-Series power supply go beyond ordinary AC power supply, providing greater convenience.





Compact design

Small and easy to carry – 429W x 262H x 520D, weighs only 32 kg

Versatile output modes: AC, DC, AC+DC *1

Output frequency range is up to 500 Hz (setting resolution 0.1Hz)

High-quality output waveform Output voltage varies between 1 V and 135 V or 2 V and 270 V (two ranges)

Maximum output current is 40 A (135 V range) or 20 A (270 V range)

Copes with high inrush loads

Output waveform distortion 0.5 % or less

Memory feature

You can store and recall three combinations of settings for voltage and frequency

The memory feature allows recording of changes in output *2

Measurement features

You can measure the voltage, current and power of AC and DC output, apparent power, reactive power, power factor, crest factor and current peak hold *3

Analogue interface

By incorporating an optional interface (EX04-PCR-M), output can be controlled using external analogue signals

Input DC signals can be used to change output AC voltage and modulate output using input waveform

Control using a PC

You can control the PCR-M Series through the standard RS-232C interface, optional GPIB interface, or optional USB interface *4

By using the control software (Easy Controller for PCR-M Series) that comes with the PCR-M Series, you can easily set the parameters of the PCR-M Series and log the output measured values

*1 : You can access AC+DC mode if you have installed an optional interface board: IB21, US21 or EX04-PCR-M – the communications interface is used to set that mode

*2 : An installed appropriate optional interface board allows up to ten combinations of settings to be stored in memory The communications interface is also used to set or call extended memory addresses (4 to 10)

*3 : Use the communications interface to measure apparent power (VA), reactive power (VAR), power factor (PF), crest factor (CF), and held current peak

*4 : Instrument drivers for Microsoft Visual Basic, Microsoft Office VBA, Microsoft Visual C++ LabVIEW, or LabWindows/CVI are also included on the disc



Specifications:



Manufacturer    Kikusui

Condition        Used

Amps             20 A

Frequency     500 Hz

Phase            1

Power (VA)      4 KVA

Volts           300 V

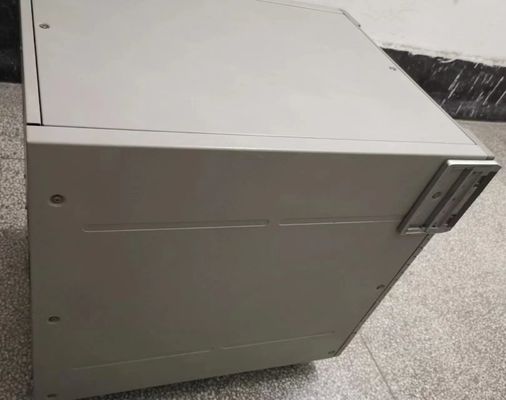

Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control 2

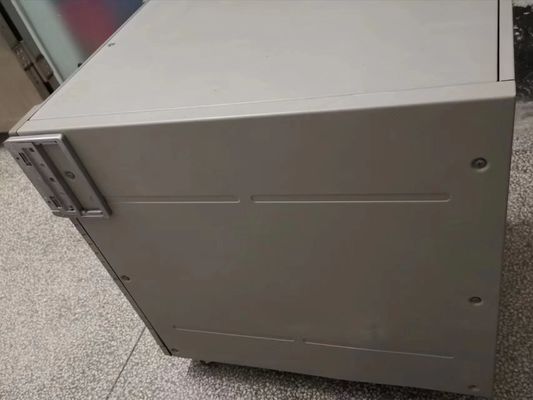

Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control 3Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control 4Kikusui PCR4000W AC Source High Power DC Power Supply 20-300W GPIB/RS232C Control 5
