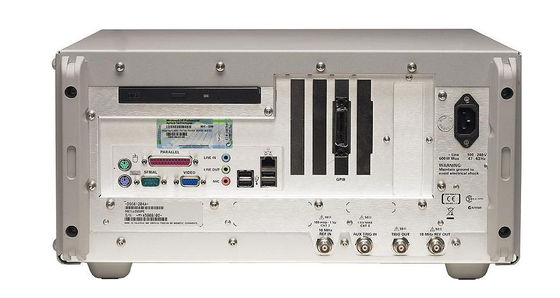

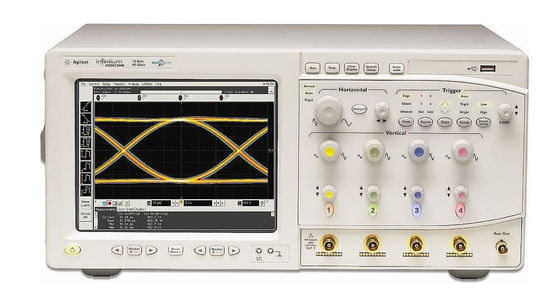

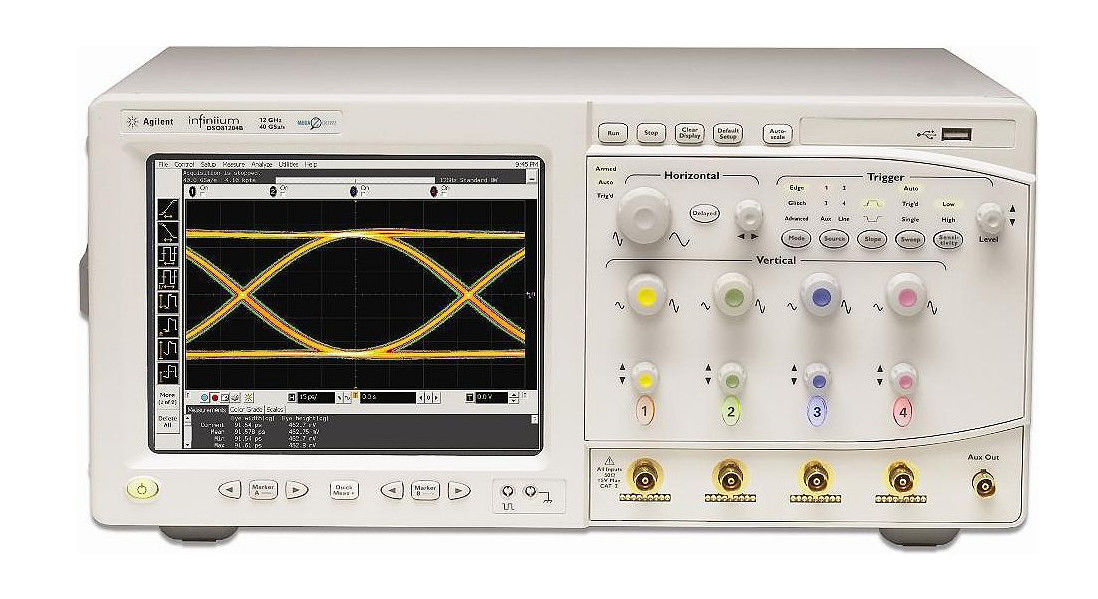

Keysight DSO81304B Mixed Signal Oscilloscopes 13GHz 20 GSa/S Agilent Infiniium Oscilloscope

Keysight DSO81304B Mixed Signal Oscilloscopes 13GHz 20 GSa/S Agilent Infiniium Oscilloscope

  • Keysight DSO81304B Mixed Signal Oscilloscopes 13GHz 20 GSa/S Agilent Infiniium Oscilloscope
  • Keysight DSO81304B Mixed Signal Oscilloscopes 13GHz 20 GSa/S Agilent Infiniium Oscilloscope
  • Keysight DSO81304B Mixed Signal Oscilloscopes 13GHz 20 GSa/S Agilent Infiniium Oscilloscope
Keysight DSO81304B Mixed Signal Oscilloscopes 13GHz 20 GSa/S Agilent Infiniium Oscilloscope
Product Details:
Place of Origin: Malasiya
Brand Name: Keysight (Agilent)
Model Number: DSO81304B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: DSO81304B Mixed Digital Oscilloscope Form Factor: Benchtop
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Bandwidth: 13GHz Sample Rate: 20 GSa/s
High Light:

13GHz Mixed Signal Oscilloscopes

,

Benchtop Mixed Signal Oscilloscopes

,

DSO81304B Agilent Infiniium Oscilloscope

Keysight Agilent DSO81304B Mixed Digital Oscilloscope Infiniium High Performance Oscilloscope

Description of Keysight Agilent DSO81304B Mixed Digital Oscilloscope

13GHz 4CH 40GSa/s Infiniium Oscilloscope
The superior signal integrity, probing and application software selection of Agilent Technologies’ Infiniium 80000B Series and InfiniiMax II probing system will lead to improved measurements and increased design margins.

The signal integrity advantages of Agilent’s Infiniium 80000B Series Scopes and InfiniiMax Probing System include the industry’s lowest noise floor, lowest jitter measurement floor, lowest trigger jitter and flattest frequency response. These foundational capabilities are crucial for achieving accurate and repeatable measurements. These superior signal integrity capabilities come from Agilent’s RF design experience, proprietary packaging technologies and unique CMOS ADC architecture. Superior signal integrity maximizes engineer’s design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system.



Overview and Features of Keysight Agilent DSO81304B



  • 13 GHz bandwidth,upgradeable to 13 GHz
  • 4 analog channels
  • Up to 40 GSa/s sample rate
  • Standard 512 kpts memory with optional 2 Mpts memory (64 Mpts at 4 GSa/s) optional 2 Mpts memory
  • XGA display with 256 levels of intensity grading

Industry Leading Signal Integrity

  • Noise floor: 419 uV @5 mV/div
  • Trigger jitter < 500 fs (rms)
  • Lowest hardware vertical sensitivity: 5 mV/div
  • Industry´s only noise reduction option (opt 005)

Largest Selection of Application Solutions

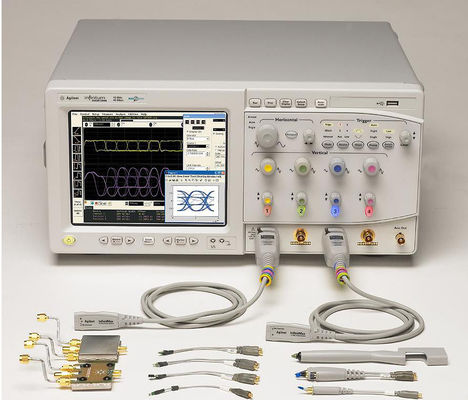

InfiniiMax Probing Solutions (1.5 GHz - 12 GHz)

  • Industry´s lowest noise floor probing system
  • Highest signal fidelity InfiniiMax II probing system
  • Interchangeable probe heads
  • Industry´s only RoHS compliance solder-in probing solution

List of Options

001 1-2M Memory/CH Upgrade On Half Channels
002 EZJIT JITTER ANALYSIS
003 HIGH-SPEED SDA & CLOCK RECOVERY
004 EZJIT Plus Jitter Analysis Software
005 Noise Reduction software
007 LOW-SPEED SDA
009 InfiniScan Event Identification S/W
E2688A HIGH-SPEED SDA & CLOCK RECOVERY
N5393A PCI EXPRESS APPLICATION
N5400A EZJIT+ JITTER SOFTWARE
N5409A FB DIMM OSCOPE APPLICATION
N5411A Serial SATA Electrical Performance Validation & Compliance Software and 14-Day Trial License
N5412A SAS COMPLIANCE APPLICATION
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
VSA Ultra Wideband Vector Signal Analyzer includes oscilloscope and VSA software with options 200, 300, AYA
FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.
