Tektronix DSA8300 Digital Serial Analyzer Equivalent Time Sampling Oscilloscope

Tektronix DSA8300 Digital Serial Analyzer Equivalent Time Sampling Oscilloscope

  • Tektronix DSA8300 Digital Serial Analyzer Equivalent Time Sampling Oscilloscope
  • Tektronix DSA8300 Digital Serial Analyzer Equivalent Time Sampling Oscilloscope
  • Tektronix DSA8300 Digital Serial Analyzer Equivalent Time Sampling Oscilloscope
Tektronix DSA8300 Digital Serial Analyzer Equivalent Time Sampling Oscilloscope
Product Details:
Place of Origin: USA
Brand Name: Tektronix
Model Number: DSA8300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Tektronix DSA8300 Digital Serial Analyzer

,

Optical modules Equivalent Time Sampling Oscilloscope

,

Equivalent Time Sampling Oscilloscope

Tektronix DSA8300 Digital Serial Analyzer Sampling Oscilloscope
Description of Tektronix DSA8300

The DSA8300 is a state-of-the-art Equivalent Time Sampling Oscilloscope that provides the highest fidelity measurement and analysis capabilities for Communications Signal Analysis, Serial Data Network Analysis, and Serial Data Link Analysis applications.

Key performance specifications
  • Low time base jitter:
    • 425 fs typical on up to 8 simultaneously acquired channels
    • <100 fs on up to 6 channels with 82A04B phase reference module
  • Industry’s highest vertical resolution – 16 bit A/D
  • Electrical resolution: <20 µV LSB (for 1 v full range)
  • Optical resolution from <20 nW for the 80C07B (1 mW full range) to <0.6 µW for the 80C10C (30 mW full range)
  • Optical bandwidths to >80 GHz
  • Electrical bandwidths to >70 GHz
  • Over 120 automated measurements for NRZ, RZ, and pulse signal types
  • Automated mask testing with over 80 industry-standard masks
  • Complex jitter/noise/BER/SER analysis (80SJNB), support for complex measurements TDECQ 1, SNDR 2 (applications)
Key features

A wide variety of optical, electrical, and accessory modules support your specific testing requirements.

  • Optical modules
    • Optical modules that support optical data rates from 155 Mb/s to 10 Gb/s to 40 Gb/s to 100 Gb/s to PAM4 for 50G/100G/200G/400G
    • Optical reference receivers (ORR) 1 support specified requirements for standards-mandated compliance testing
    • High optical sensitivity, low noise, and wide dynamic range of the optical sampling modules allows accurate testing and characterization of short-reach to long-haul optical communications standards
    • Fully calibrated clock recovery solutions – no need to manually calibrate for data pick-off losses
    • Calibrated extinction ratio measurements and variable correction ER measurement ensure accuracy and repeatability
  • Electrical modules
    • Very low-noise electrical samplers (280 μV at 20 GHz, 450 μV at 60 GHz, typical)
    • Selectable bandwidths 2 allow the user to trade-off sampler bandwidth and noise for optimal data acquisition performance
    • Remote samplers or compact sampling extender module cables minimize signal degradation by allowing the sampler to be located in close proximity to the device under test
    • High-performance integrated TDR (10 ps typical step rise time) supports exceptional impedance discontinuity characterization and high dynamic range for S-parameter measurements to 50 GHz
  • Analysis
    • Jitter, noise, and BER analysis of high-speed PAM4 and PAM2 NRZ serial data rates from <1 GBd to 60 GBd provides insight into precise causes of eye closure
    • Analysis of PAM4 signals with comprehensive jitter, noise and BER analysis for each individual PAM eye, and a set of global measurements that assess the overall PAM4 signal attributes

    • 100G-SR4/Transmitter and Dispersion Eye Closure (TDEC) automation provides turn-key testing and debug of TX Optical properties key to the SR4 Short Reach Ethernet
    • 80STDEC streamlines high performance Transmitter and Dispersion Eye Closure (TDEC) measurement making it ideal for manufacturing and conformance validation applications
    • Automated mask testing with over 80 industry-standard masks. New masks can be imported into the DSA8300 to support new emerging standards. Users can define their own masks for automated mask testing
    • Jitter, noise, BER, mask testing, and Serial Data Link Analysis (SDLA) are provided through the 80SJNB Essentials and Advanced Software Application Options
    • Advanced TDR analysis, S-parameter measurements, simulation model extraction, and serial link simulation capabilities are provided by the IConnect® Software Application options
    • 400G-M4 Optical Manufacturing Analysis Software provides Optical Transmitter and Dispersion Eye Closure Quaternary (TDECQ) analysis
  • High test throughput
    • High sample acquisition rate up to 200 kS/s per channel
    • Efficient programmatic interface (IEEE-488, Ethernet, or local processor access) enables high test throughput
Applications
  • Design/Verification of telecom and datacom components and systems
  • Manufacturing/testing for ITU/ANSI/IEEE/SONET/SDH compliance
  • High-performance true-differential TDR measurements
  • Impedance characterization and network analysis for serial data applications including S-parameters
  • Advanced jitter, noise, BER and SDLA analysis
  • Channel and eye diagram simulation and measurement-based modeling with IConnect.

Superior performance with extraordinary versatility

The DSA8300 Digital Serial Analyzer is the most versatile tool for developing and testing communications, computers, and consumer electronics which use multi-gigabit data transmission. It is used for optical and electrical transmitter characterization, as well as compliance verification for devices, modules, and systems used in these products.

In addition, the DSA8300 is well-suited for electrical signal path characterization, whether for packages, PCBs, or electrical cables. With exceptional bandwidth, signal fidelity, and the most extensible modular architecture, the DSA8300 provides the highest-performance TDR and interconnect analysis, most accurate analysis of signal impairments, and BER calculations for current and emerging serial data technology.

List of Options
A99 No Power Cord or AC Adapter
ADVTRIG Add advanced triggers with pattern sync
C3 Calibration Service 3 Years
C5 Calibration Service 5 Years
D1 Calibration Data Report
D3 Calibration Data Report 3 Years (with Option C3
D5 Calibration Data Report 5 Years (with Option C5)
G3 Three Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others
G5 Five Year Gold Care Plan. Includes expedited repair of all product failures including ESD and EOS, access to a loaner product during repair or advanced exchange to reduce downtime, priority access to Customer Support among others
ICMX Add IConnect S-parameters and Advanced Modeling
ICON Add IConnect S-parameters and Modeling
JARB Add 80SJARB
JNB Add 80SJNB Essentials
JNB01 Add 80SJNB ADVANCED
L0 ENGLISH MANUAL
L10 RUSSIAN MANUAL
L7 SIMPLE CHINESE MANUAL
L8 STANDARD CHINESE MANUAL
R3 Repair Service 3 Years (including warranty)
R5 Repair Service 5 Years (including warranty)
SW99 No IConnect maintenance
SWS0 1 year of free IConnect maintenance
W7 Windows 7

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

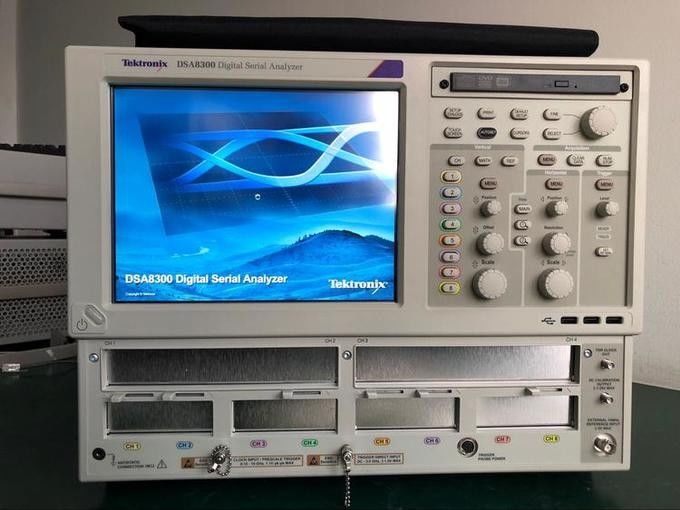

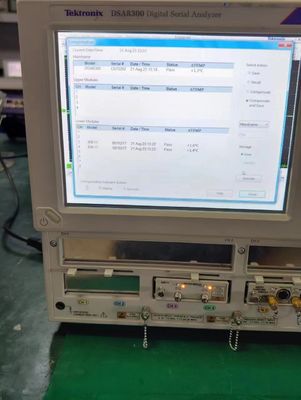

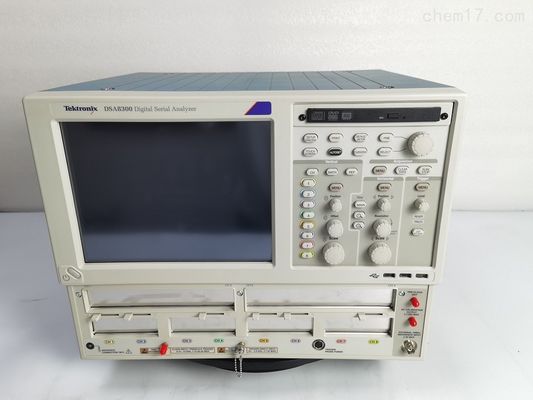

Tektronix DSA8300 Digital Serial Analyzer Equivalent Time Sampling Oscilloscope 0
