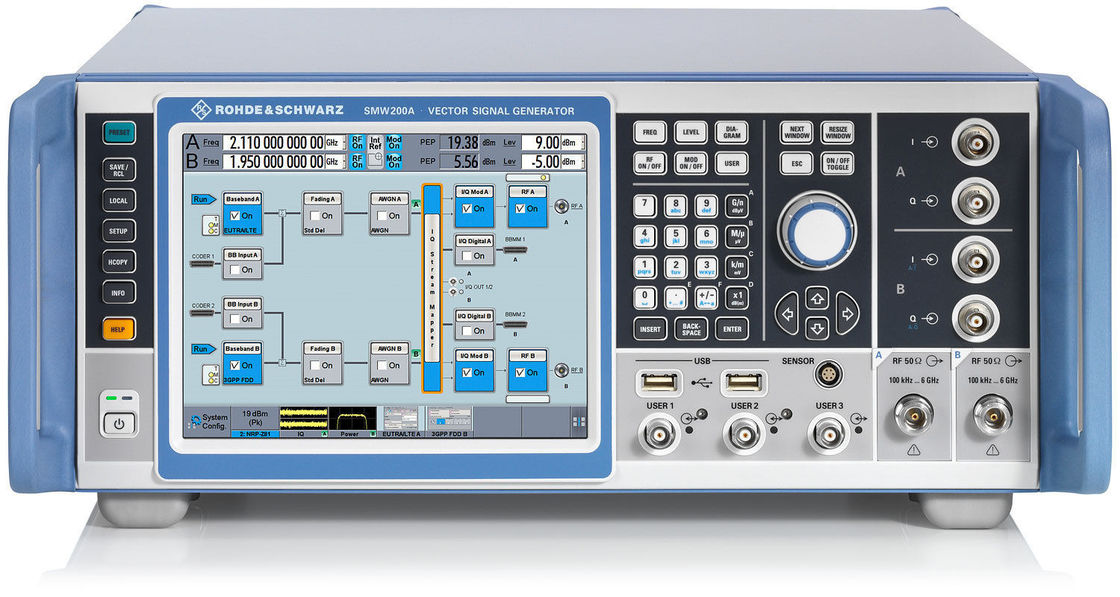

Rohde And Schwarz SMW200A Vector Signal Generator 160 MHz Support MIMO Modes

Rohde And Schwarz SMW200A Vector Signal Generator 160 MHz Support MIMO Modes

  • Rohde And Schwarz SMW200A Vector Signal Generator 160 MHz Support MIMO Modes
  • Rohde And Schwarz SMW200A Vector Signal Generator 160 MHz Support MIMO Modes
Rohde And Schwarz SMW200A Vector Signal Generator 160 MHz Support MIMO Modes
Product Details:
Place of Origin: Malaysia
Brand Name: Rohde and Schwarz
Model Number: SMW200A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Vector Signal Generator Bandwidth: 160 MHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

SMW200A Vector Signal Generator 160 MHz

,

MIMO Modes Vector Signal Generator

,

R&S SMW200A Vector Signal Generator

Rohde and Schwarz SMW200A Vector Signal Generator Multipurpose Used Test Instruments
Description of Rohde and Schwarz SMW200A

Options for all important digital communications standards Optional integrated fading simulator with up to 160 MHz bandwidth Support of all key MIMO modes including 3x3, 4x4, 8x4, 4x8 and 4x2x2



List of Options
1ST B22 Enhanced phase noise performance and FM/Phim modulator, frequency option (R&S®SMW-B1xx/B2xx) and R&S®SMW-B13T/B13XT required, retrofittable in factory only (hardware option)
1ST K540 Envelope tracking
1st-B14 Fading simulator, R&S®SMW-B13/B13T and R&S®SMW-B10 required, retrofittable in Rohde & Schwarz service (hardware option)
2ND B14 Fading simulator, R&S®SMW-B13/B13T and R&S®SMW-B10 required, retrofittable in Rohde & Schwarz service (hardware option)
2ND B22 Enhanced phase noise performance and FM/Phim modulator, frequency option (R&S®SMW-B1xx/B2xx) and R&S®SMW-B13T/B13XT required, retrofittable in factory only (hardware option)
2ND K16 Differential analog I/Q outputs
2ND K42 3GPP FDD, R&S®SMW-B9/B10 required (software license)
2ND K540 Envelope tracking
2ND K55 EUTRA/LTE, R&S®SMW-B9/B10 required (software license)
2ND K62 Additional white Gaussian noise, R&S®SMW-B13/B13T/B13XT required (software license)
2ND K83 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests R&S®SMw-K42 required (software license)
2ND K84 EUTRA/LTE Release 9 and enhanced features, R&S®SMW-K55 required (software license)
2ND K85 EUTRA/LTE Release 10 (LTE Advanced), R&S®SMW-K55 required (software license)
B10 Baseband generator with real-time coder and ARB (64 MSamples)
B1003 100 kHz to 3 GHz
B1006 100 kHz to 6 GHz
B1007 100 kHz to 7.5 GHz
B1012 100 kHz to 12.75 GHz
B1020 100 kHz to 20 GHz
B1031 00 kHz to 31.8 GHz
B1040 100 kHz to 40 GHz
B1040N 00 kHz to 40 GHz, I/Q modulation bandwidth and minimum pulse width limited
B1044 100 kHz to 44 GHz
B1044N 100 kHz to 44 GHz, I/Q modulation bandwidth and minimum pulse width limited
B13T Signal routing and baseband main module, two I/Q paths to RF
B13XT B13XT-Wideband baseband main
B22 Enhanced phase noise performance and FM/Phim modulator, frequency option (R&S®SMW-B1xx/B2xx) and R&S®SMW-B13T/B13XT required, retrofittable in factory only (hardware option)
B9 500MHz 256MS Wideband base
B9 Wideband Baseband Generator with ARB
B90 Phase coherence
FSW-B8
FSW-K144
K16 Differential analog I/Q outputs
K16 - 2ND Differential analog I/Q outputs
K19 Digital Baseband Output for SMW Wideband Baseband
K40 GSM/EDGE
K42 3GPP FDD, R&S®SMW-B9/B10 required (software license)
K46 CDMA2000®, R&S®SMW-B9/B10 required (software license)
K47 1xEV-DO Rev.A, R&S®SMW-B9/B10 required (software license)
K511 ARB memory extension to 512 MSamples
K515 ARB memory ext 2Gs
K522 Baseband extension to 160MHz RF bandwidth
K526 2GHz RF baseband extension
K54 IEEE 802.11a/b/g/n
K541 Digital Predistortion
K541 M/AM, AM/PM Predistortion
K55 EUTRA/LTE, R&S®SMW-B9/B10 required (software license)
K61 K61-Multi carrier
K62 Additional white Gaussian noise, R&S®SMW-B13/B13T/B13XT required (software license)
K69 EUTRA/LTE closed-loop BS test, HARQ feedback, timing adjustment R&S®SMW-K55 required (software license)
K74 MIMO fading and routing, R&S®SMW-B13T, 2 x R&S®SMW-B10 and 2 x R&S®SMW-B14 required (software license)
K83 3GPP FDD HSPA/HSPA+, enhanced BS/MS tests R&S®SMw-K42 required (software license)
K84 EUTRA/LTE Release 9 and enhanced features, R&S®SMW-K55 required (software license)
K85 EUTRA/LTE Release 10 (LTE Advanced), R&S®SMW-K55 required (software license)
K86 IEEE 802.11ac
R&S®SMW-B220 100 kHz to 20 Ghz
SMW-B10 Baseband generator with realtime coder and ARB (64 Msample), 120 MHz RF bandwidth
SMW-B106 100 kHz to 6 GHz
SMW-B120 100 kHz to 20 GHz
SMW-B13T Signal routing and baseband main module, two I/Q paths to RF
SMW-B140 100 kHz to 40 GHz
SMW-B206 100 kHz to 6 GHz
SMW-B220 100 kHz to 20 GHz
SMW-K115 Cellular IOT
SMW-K525 Baseband Extension to 1 GHz RF bandwidth
SMW-K527 Baseband Extension to 2 GHz RF bandwidth
SMW-K55 EUTRA/LTE
