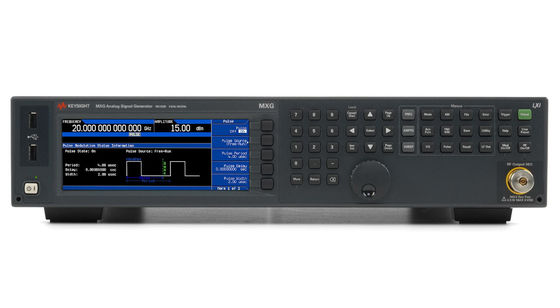

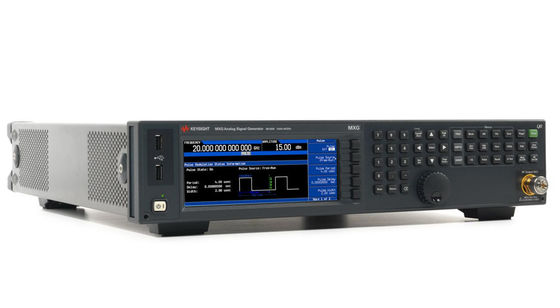

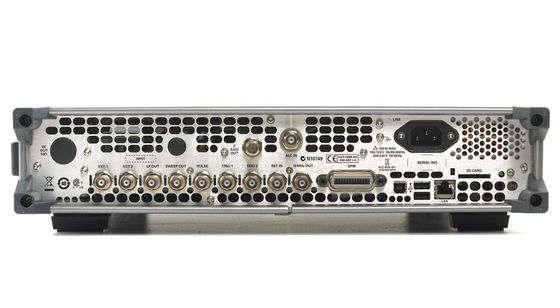

Keysight N5183B MXG X-Series Microwave Analog Signal Generator 9kHz To 40 GHz

Name: Keysight N5183B MXG X-Series Microwave Analog Signal Generator 9kHz To 40 GHz
Brand: Keysight (Agilent)
SKU: N5183B
Rating: 4.8 (200 reviews)

Product Details:

Place of Origin:	Malaysia
Brand Name:	Keysight (Agilent)
Model Number:	N5183B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	1~3 working days
Payment Terms:	T/T,Western Union, MoneyGram
Supply Ability:	In Stock

Contact Now

Detailed Product Description

Product Name:	Keysight Agilent N5183B	Frequency Coverage:	9 KHz To 40
Output Power:	+19 DBm	Type:	Analog,Digital,Microwave,RF ( /1ED /1EM )
Condition:	Full Tested Usable	Harmonics:	-55 DBc
Spurious:	-68 DBc	Switching Speed:	600 µs
High Light:	Keysight N5183B Microwave Analog Signal Generator , 40 GHz Microwave Analog Signal Generator , MXG Microwave Analog Signal Generator

Keysight Agilent Usable N5183B MXG X-Series Microwave Analog Signal Generator 9kHz to 40 GHz

Description Of Keysight Agilent Usable N5183

The MXG is the pure and precise alternative to the analog PSG, with advantages in size and speed.

It delivers the performance you need--spectral purity, output power, switching speed and more--to perform module- and system-level testing.

Generate the signals you need with outstanding hardware performance

Test radar receiver sensitivity with best-in-class phase noise and spurious performance
Shrink your test stand with two rack-unit height
Maximize throughput with fast switching speed
Compensate for system loss, stimulate remote DUTs, and drive high-power amplifiers while retaining signal integrity
Simulate multi-channel composite analog modulation with integrated multifunction generation
Create variable RADAR PRI and pulse width with integrated pulse train generator

Maximize resources with low cost of ownership

Increase uptime with high mean time between failures (MTBF)
Minimize downtime and expenses with self-maintenance strategy and low-cost repairs
Standard 3-year calibration cycle and warranty

Highlights

Maximize speed and rack space with the pure and precise MXG

Get a fast, compact (2U) alternative to the PSG in the lab, depot or field
Address demanding tests of radar modules & systems with near-PSG levels of spectral purity
Compensate for system loss & drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics & -68 dBc spurious 20 GHz
Reduce calibration time with switching speed 600 µs
Simulate narrowband chirps & radar antenna scans with up to five internal function generators that can be used with AM, FM, OM pulse modulation

List of Options:

006	Instrument security and removable memory card
010	Step attenuator, 115 dB
1CM010A	Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs
1CN006A	Handle kit 88.1mm H (2U) - two front handles
1CP004A	Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs
1CR012A	Rack Slide Kit, Mounting lengths 279.4-406.4mm
1E1	STEP ATTEN, 115 dB
1EA	High output power
1ED	Type-N (f) RF output connector
1EM	Move all connectors to rear panel
1ER	Flexible reference input (1-50 MHz)
303	Multifunction generator
320	Pulse train generator, fixed perpetual license
513	Frequency range, 9 kHz to 13 GHz
520	Frequency range, 9 kHz to 20 GHz
532	Frequency range, 9 kHz to 31.8 GHz
540	Frequency range, 9 kHz to 40 GHz
A6J	ANSI Z540-1-1994 Calibration
ABJ	Japan- Japanese printed user guide
AMG	Calibration + Uncertainties + Guardbanding (Accredited)
AXT	Hard transit case
CVR	Front Panel Cover
SDO	No internal non-volatile memory/solid state drive
UK6	Commercial calibration certificate with test data
UNT	AM, FM phase modulation
UNW	Narrow pulse modulation
UNY	Low phase noise
UNZ	Fast frequency switching
UW2	Narrow pulse modulation up to 31.8 GHz
UZ2	Fast frequency switching greater than 1.15 ms and +/-0.05 percent of final frequency
