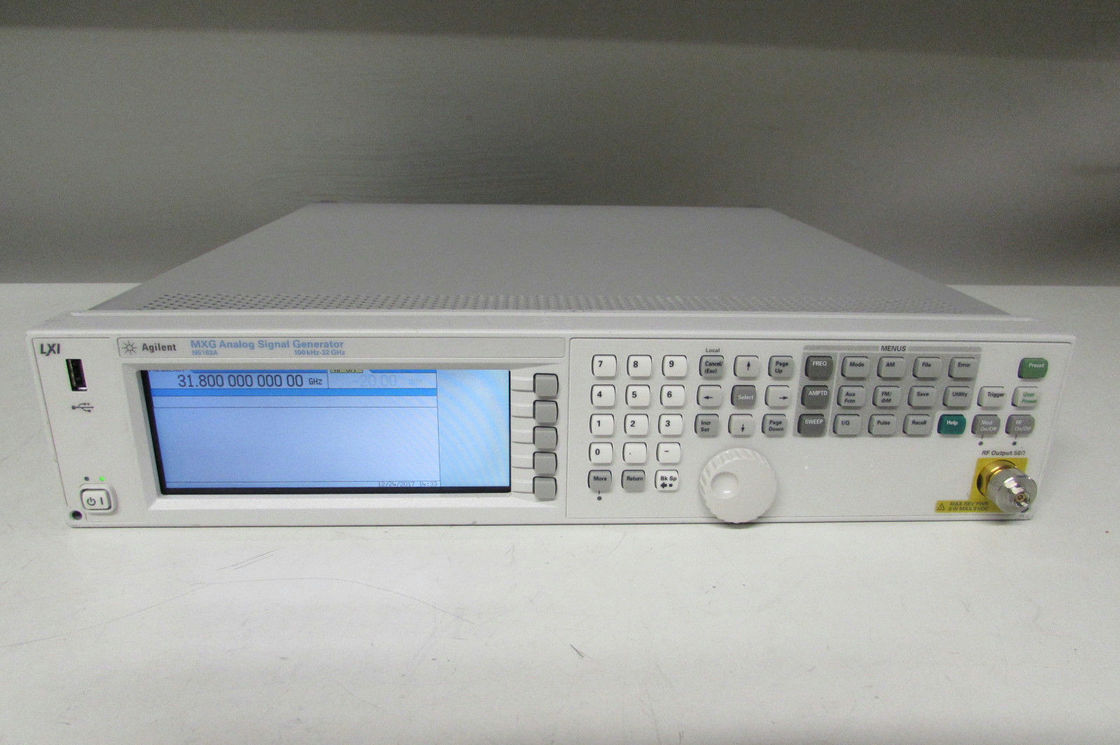

Keysight N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz with Field Replaceable Assemblies and AM FM Phase Pulse Modulation

The Agilent N5183A MXG Microwave Analog Signal Generator delivers exceptional performance for broadband component manufacturing applications up to 40 GHz. With excellent power and level accuracy, the MXG microwave serves as a reliable stimulus for driving high-power devices.

Configured to meet current test requirements—from LO substitution and CW interferer to analog modulation for device characterization—the MXG microwave is easily upgradable to accommodate future testing needs.

Every element of the MXG microwave is engineered to reduce cost of ownership. Featuring field-replaceable assemblies and tools for on-site performance verification, instrument uptime is maximized through simplified self-maintenance and repair procedures.

• Frequency range: 100 kHz to 20, 31.8, or 40 GHz
• Output power: +18 dBm at 20 GHz
• Frequency switching speeds: ≤ 900 µs
• Phase noise: ≤ -98 dBc/Hz typical at 20 kHz offset

• AM, FM, and pulse modulation
• Pulse rise/fall time: < 10 ns with 20 ns pulse widths
• Digital and step sweep capabilities

For applications requiring faster delivery without custom configuration, evaluate the pre-configured N5183AEP MXG Microwave Signal Generator Express Configuration.

• Interfaces: 100BaseT LAN, USB 2.0, and GPIB
• LXI class-B compliant
• SCPI and IVI-COM drivers
• Backward compatible with PSG, 8340, 8360, and 8370 Series signal generators
