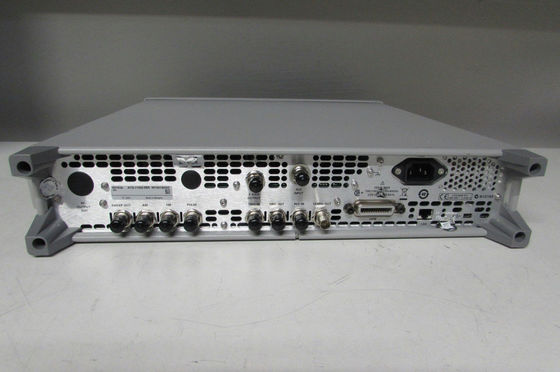

Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz

Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz

  • Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz
  • Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz
  • Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz
Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: N5183A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1~3 working days
Payment Terms: T/T,Western Union, MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Product Name: Keysight (Agilent) N5183A Form Factor: Benchtop
Frequency: 100 KHz - 20 GHz (32 GHz Or 40 GHz Optional) Modulation: AM ( /UNT ),FM ( /UNT ),Phase ( /UNT ),Pulse ( /UNW )
Type: Analog,Digital,Microwave,RF ( /1ED /1EM ) Condition: Full Tested Usable

Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz



Description Of Keysight Agilent N5183A



N5183A MXG microwave analog signal generators deliver the performance needed for broadband component manufacturing up to 40 GHz.Excellent power and level accuracy make the MXG microwave a reliable stimulus for driving

high power devices. The MXG microwave can be configured to meet your test needs today, from LO substitution and CW interferer to analog modulation for device characterization, and is easily upgraded to meet your needs in the future.


Simplified self-maintenance maximizes uptime

Every element of the MXG microwave is designed to reduce cost of ownership, from field replaceable assemblies to tools for

on-site performance verification, instrument uptime is maximized with simplified self-maintenance and repair.



Signal Characteristics

  • 100 kHz to 20, 31.8 or 40 GHz
  • +18 dBm at 20 GHz output power
  • = 900 µs frequency switching speeds
  • = -98 dBc/Hz typical phase noise at 20 kHz offset



Modulation and Sweep

  • AM, FM, FM, and pulse modulation
  • < 10 ns pulse rise/fall time and 20 ns pulse widths
  • Digital and step sweep



Pre-Configurations

  • No application required? Want faster delivery?
    Evaluate the pre-configured N5183AEP MXG Microwave Signal Generator Express Configuration

Automation and Communcation Interface

  • 100BaseT LAN, USB 2.0 and GPIB
  • LXI class-B compliant
  • SCPI and IVI-COM drivers
  • Backward compatible with PSG, 8340, 8360 and 8370 Series signal generators

List of Options:



006

Instrument security

1A7

MXG Series ISO 17025 compliant calibration with test data

1CM

Rackmount kit
1CN Front handle kit
1CP Rackmount with front handle kit
1CR Rack slide kit
1E1 Step attenuator
1EA High output power
1ED Type-N (f) RF output connector
1EM Move RF output to rear panel
1ER Flexible reference input (1-50MHz)
320 Pulse train generator
520 100kHz to 20GHz
532 100kHz to 31.8GHz
540 100kHz to 40GHz
802 Customer Service Kit N5183A-520 Front Panel 3.5mm and Type-N RF connector
803 Customer Service Kit N5183A-520 Rear Panel 3.5 mm RF connector
804 Customer Service Kit N5183A-520 Rear Panel Type-N RF connector
805 Customer Service Kit N5183A-532/540 Front Panel RF connector
806 Customer Service Kit N5183A-532/540 Rear Panel RF connector
A6J MXG Series ANSI Z540 compliant calibration with test data
AKT Russia - russian localization
ALB Add LXi Class B Functionality
AXT Hard transit case
H26 3.5 mm (f) - 2.4 (f) mm adapter supplied with unit.
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
U01 Firmware Enhancement- Adds internal channel flatness correction and a new softkey for I/Q phase adjustment
U02 Firmware Enhancement- When a power meter is used with the source, the reference frequency of the power meter is set to the current frequency of the source.
U03 Firmware Enhancement - Increased maximum specified output power for N5183A and supports pass-through SCPI commands.
U04 Firmware Enhancement- Adds limited SCPI compatibility support for Panasonic VP8300A signal generators - Added capability to allow user to specify repeat count for single triggered waveforms
UK6 Commercial calibration certificate with test data
UNT AM, FM, phase modulation
UNU Pulse modulation
UNW Narrow pulse modulation
UNZ Fast frequency switching speed


Our service:

1.One-stop service from manufacture to shipping.

2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires influent English.
4.Distributor ship is offered for your unique desigh and some our current models.
5.Protection of your sales area, ideas of design and all your private information.





FAQ:

1.Can you ship order to Canada or Australia ?

   Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below.



Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz 0Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz 1Agilent N5183A MXG Microwave Analog Signal Generator 100 kHz to 40 GHz 2
