RF Conducted Immunity EMC Test System Anti Interference 0.15-230MHz

RF Conducted Immunity EMC Test System Anti Interference 0.15-230MHz

  • RF Conducted Immunity EMC Test System Anti Interference 0.15-230MHz
RF Conducted Immunity EMC Test System Anti Interference 0.15-230MHz
Product Details:
Place of Origin: China
Brand Name: Meigaolan
Certification: ISO 17025 Calibration Certificate
Model Number: JS35-CS
Contact Now
Detailed Product Description
Test Scope: 0.15MHz-230MHz Standards Of Measurement: IEC61000-4-6,EN 61000-4-6, GB17626.6 Etc.
Purpose: Test EUT's Anti-interference Ability Test Method: CDN Injection, Electromagnetic Clamp Injection, Current Clamp Injection, Direct Injection
Sofeware: JS35-CS Condition: Fully Working
High Light:

RF EMC Test System

,

Anti Interference EMC Test System

,

230MHz RF Conducted Immunity Test System

RF Conducted Immunity test system/EMC test / EMS



Meet the immunity testing of civil products, light industrial products, engineering and medical products, rail transit and other products; Meet the requirements of wireless peak and nest communication products such as mobile phones

Frequency breakthrough testing requirements; Meet the monitoring requirements of CISPR 35 for display, voice, communication, etc





Test Purpose

This system is used to simulate the application of conducted interference signals to EUT for verification EUT's anti-interference ability

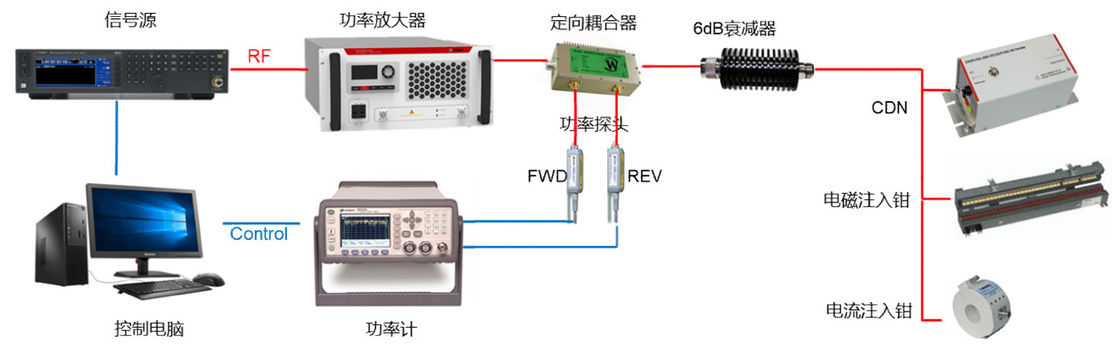

Test general view

RF Conducted Immunity EMC Test System Anti Interference 0.15-230MHz 0



Description

No. Item Recommend Model Description
1 Test Sofeware JS35-CS Conducted Immunity Automated Test Software
2 Signal Generator N5173B/SMA100A/MG3740A 9kHz-40GHz
3 Power Amplifier NTWPAS Series Frequency: 9kHz-230MHz(According to customer requirement)
4 Power Meter   Double Channel
5 Power Sensor   Frequency: 9kHz-230MHz
6 6dB Attenuator   Power:75W(According to customer requirement)
7 CDN   Frequency: 9kHz-230MHz
8 Electronmagnetic Crucible
9 Current Injection Probe





Test Scope

Test Scope:0.15MHz-230MHz

Standards of Measurement: IEC61000-4-6,EN 61000-4-6, GB17626.6 etc.
