EMC Test System
Created with Pixso. AC220V 50Hz EMC Test System , SUS304 High Low Temperature Test Chamber

AC220V 50Hz EMC Test System , SUS304 High Low Temperature Test Chamber

Brand Name: HANDI
Model Number: GDW
MOQ: 1 set
Price: Negotiation
Delivery Time: TBD
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO9001
Product Name:
Temperature Test Chamber
Condition:
New
Functions:
Tested, In Full Working Conditions
Temperature Min.:
-70 °C
Temperature Max:
150 °C
Temperature Accuracy:
0.2 °C
Highlight:

220V EMC Test System

,

50Hz EMC Test System

,

SUS304 High Low Temperature Test Chamber

Product Description

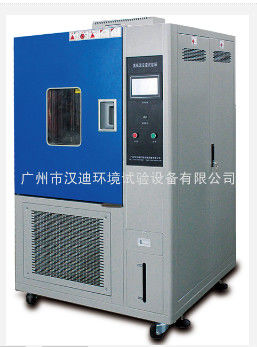

HANDI TEST High-Low Temperature Alternating Change Test Chamber



Description of HANDI TEST High-Low Temperature Alternating Change Test Chamber

Temperature and humidity test chamber simulating product under the condition of temperature and humidity combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself have changed. Temperature humidity test chamber Need to meet the requirements of international standard (IEC, JIS, GB, MIL...). in order to achieve International quantum measurement procedures consistency (including test steps, conditions, methods). To avoid different cognitive, and reduce uncertainly factors scope of measurement.



Overview and Features of HANDI TEST High-Low Temperature Alternating Change Test Chamber



Model No.: GDW-100/GDW-150/GDW-225/GDW-500/GDW-800/GDW-1000

                  GDJW-100/GDJW-150/GDJW-225/GDJW-500/GDJW-800/GDJW-1000



Temperature Range:-70~150℃

Temperature Uniformity±2 °C

●Temperature Accuracy: 0.2 °C

Heating Time:≤ 60min

Enveriment Temperature range:+5~+35℃



Materials:

Shell----Double-sided galvanized steel sheet,Surface spraying with HANDI standard color




Inner side----Stainless steel SUS304
Insulation----Polyurethane foamed glass fiber cotton

Control system:
Fuji Micro Controller for GDW series
TEMI programmable controller with touch screen for GDJW series
Power supply:  AC220V 50Hz/AC380V 50Hz





Inner Chamber  Size LX( mm)


D 400 500 500 700 800 1000
W 500 500 600 800 1000 1000
H 500 600 750 900 1000 1000
Outer Chamber  Size L( mm) D 850 950 950 1150 1250 1450
W 990 990 1090 1290 1490 1490
H 1620 1720 1870 2020 2120 2120





FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .



Five advantages of HANDI TEST Humidity Test Chamber :

1.Temperature humidity chamber Evaporator no frosting under longtime Low temperature and low humidity running. 2.Automatic control system refrigerant demand save electricity above 30%

3.High heat load tested samples test environment

4.realize 95℃ 95%high temperature and high humidity environment.

5.10% 20 ℃ ultra-low temperature range control ability





AC220V 50Hz EMC Test System , SUS304 High Low Temperature Test Chamber 0AC220V 50Hz EMC Test System , SUS304 High Low Temperature Test Chamber 1AC220V 50Hz EMC Test System , SUS304 High Low Temperature Test Chamber 2
