| Place of Origin: | Malaysia |
| Brand Name: | Agilent |
| Certification: | FCC |
| Model Number: | E4419B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton |
| Payment Terms: | T/T |
| Supply Ability: | in stock |
| Product Name: | Dual-Channel Power Meter | Form Factor: | Plug-In |
|---|---|---|---|
| Video Bandwidth: | 400 MHz | Measurement Frequency Range: | 200 (400)MHz To 4 GHz |
| Condition: | Pre-Owned | Functions: | Tested, In Full Working Conditions |
| High Light: | FCC Dual Channel Power Meter,Programmable Dual Channel Power Meter,Agilent E4419B |
||

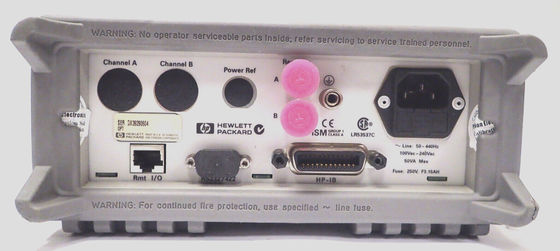

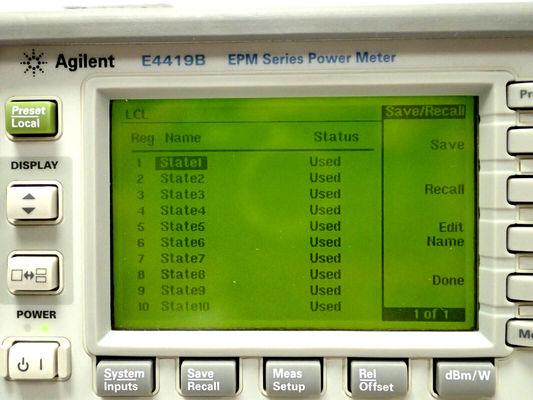

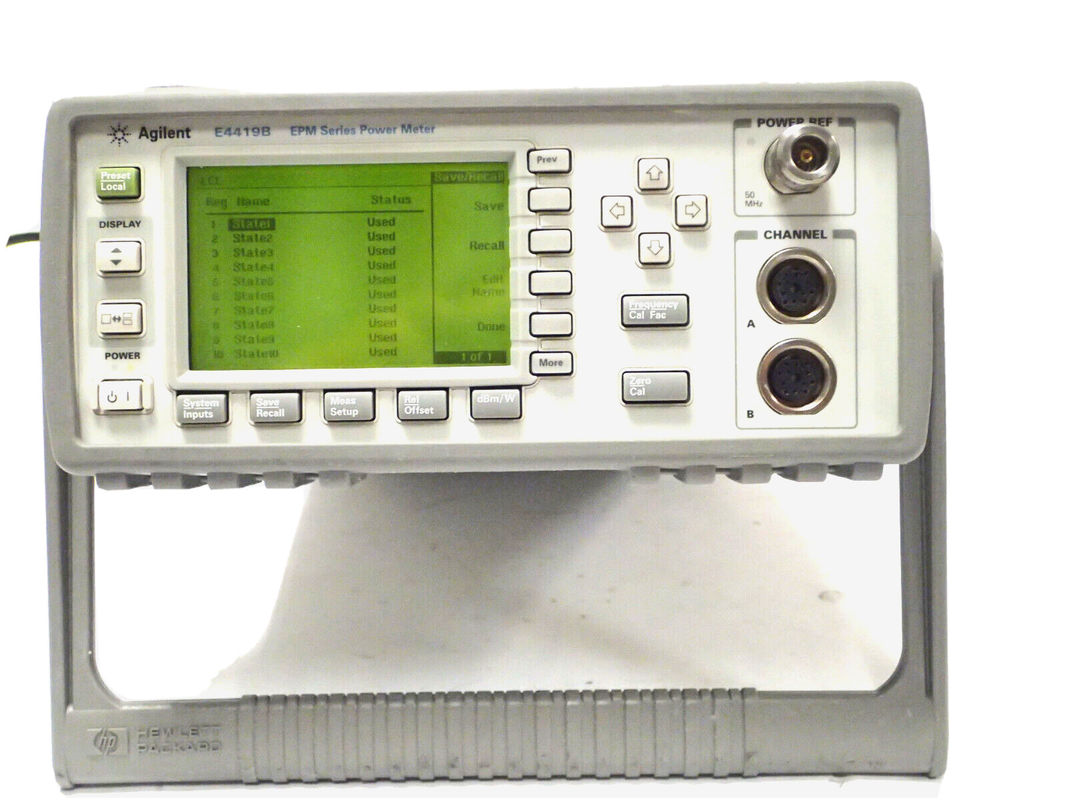

Keysight Agilent E4419B EPM Series Dual-Channel Power Meter
Description of E4419B Power Meter
The Agilent E4419B is a low-cost, high-performance, dual-channel, programmable power meter. It is fully compatible with the 8480 series and the E-series power sensors (except the E9320A family). Depending upon which sensor is used, the E4419B can measure from -70 dBm to +44 dBm at frequencies from 9 kHz to 110 GHz.
Designed for bench and automatic test equipment use (ATE), the E4419B makes fast (up to 100 readings per second with E-series sensors), accurate and repeatable power measurements.
The E4419B is a true dual-channel power meter, which means that you get two simultaneous power readings on the display.
Features:
| 001 | Mains power and Internal rechargeable battery |
| 002 | Parallel rear panel sensor input connectors and front panel reference calibrator connector |
| 003 | Parallel rear panel sensor input connectors and rear panel reference calibrator connector |
| 004 | Deletes HP 11730A sensor cable |
| 006 | Parallel front and rear panel sensor and reference calibrator connectors |
| 007 | Single Reference Calibrator |
| 0B0 | Do not include manuals |
| 1A7 | ISO 17025 Compliant Calibration |
| 1BN | Military Standard 45662A Calibration Certification |
| 1BP | Military Standard 45662A Calibration with Test Data |
| 201 | Rechargeable Battery, implied by E4419B-001 |
| 34131A | Transit Case |
| 34161A | Accessory Pouch |
| 8ZE | Factory Refurbished |
| 908 | One-instrument rackmount kit |
| 909 | Front Handle & Rack Flange Kit |
| 909 | RACKMOUNT-HOLDS 2 INSTR. |
| 915 | Additional Service Manual |
| 916 | Additional Set of User Manuals |
| A6J | ANSI Z540 compliant calibration with test data |
| AB1 | Korea Quick Users Guide (Korean localization) |
| AB2 | China Quick Users Guide (Chinese localization) |
| ABA | U.S. Quick Users Guide (English localization) |
| ABD | Germany Quick Users Guide (German localization) |
| ABE | Spain Quick Users Guide (Spanish localization) |
| ABF | France Quick Users Guide (French localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| ABZ | Italy Quick Users Guide (Italian localization) |
| C2X | 2x Calibration Service Agreement |
| C3X | 3x Calibration Service Agreement |
| H12 | Improved Specification |
| INT | |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| R24 | Extended 24 Month Warranty |
| R36 | Extended 36 Month Warranty |
| RC24 | Extended 24 Month Warranty & 2x Calibration Service Agreement |
| RC36 | Extended 36 Month Warranty & 3x Calibration Service Agreement |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| UK6 | Commercial calibration with test results data |
