Multifunctional Fluke 5522A Calibrator Practical Stable High Performance

Multifunctional Fluke 5522A Calibrator Practical Stable High Performance

  • Multifunctional Fluke 5522A Calibrator Practical Stable High Performance
  • Multifunctional Fluke 5522A Calibrator Practical Stable High Performance
  • Multifunctional Fluke 5522A Calibrator Practical Stable High Performance
Multifunctional Fluke 5522A Calibrator Practical Stable High Performance
Product Details:
Place of Origin: USA
Brand Name: Fluke
Certification: FCC
Model Number: 5522A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Multi Product Calibrator Amplitude Signals: Up To 1100 MHz
Repair Support: Calibration Only Calibration Support: Contact Us
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Multifunctional Fluke 5522A Calibrator

,

Practical Fluke 5522A Calibrator

,

Stable Fluke Calibrator 5522A

Fluke 5522A High Performance Multi-product Calibrator

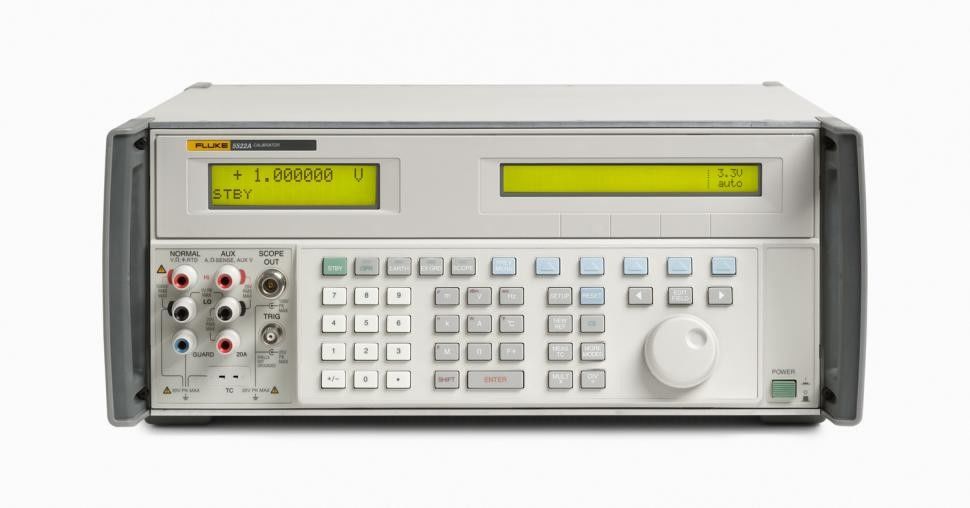

Description of Fluke 5522A Multi Product Calibrator

Robust, transportable wide workload coverage

The 5522A Multi-Product Calibrator replaces the 5520A and addresses a wide calibration workload and comes with internal and external protection features that protect it against damage and make it easier to transport for on-site or mobile calibration. The 5522A can also be fully automated with MET/CAL® Plus Calibration Management Software (version 7.3 SP1 or later). It is the ideal calibrator for metrology professionals who need to perform resistance calibration, voltage calibration, current calibration and more, and who want a transportable instrument that offers them a high return on investment.

The 5522A is a voltage calibrator, a resistance calibrator, a current calibrator and much more. It sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate dc and ac power with phase control, resistance, capacitance, thermocouples and RTDs. The 5522A can also measure thermocouple temperature, and pressure using one of 29 Fluke 700 Series pressure modules. Two options add the capability to calibrate oscilloscopes either 600 MHz or 1.1 GHz. And the 5520A-PQ Power Quality Option enables the 5522A to calibrate power quality instrumentation to the standards of the IEC and other regulatory agencies.

The 5522A calibrator covers many of the electronic test tools you use to keep your company up and running, including:

  • Handheld and bench meters (analog and digital) up to 6 ½ digits
  • Current clamps and clamp meters
  • Thermocouples and RTDs
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Panel meters
  • Graphical multimeters
  • Power quality analyzers (with option)
  • Analog or digital handheld and bench oscilloscopes to 600 MHz or 1.1 GHz (with options)
  • …and more, including pressure gauges and transducers and three-phase power meters

5522A features at a glance

  • Calibrates a wide variety of electrical test equipment
  • Robust protection circuits prevent costly damage from operator error
  • Resistance calibrator, voltage calibrator, current calibrator and more
  • Redesigned carrying handles make the 5522A easy to transport

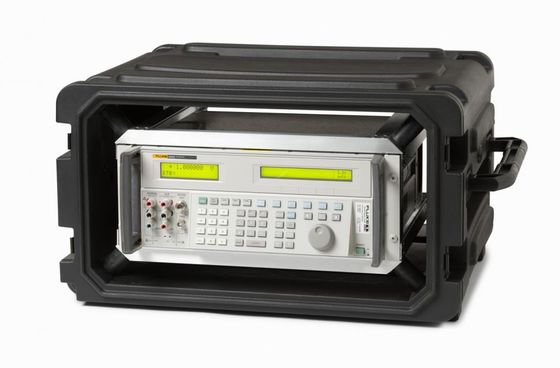

  • Rugged optional carrying case with built-in handles and wheels and removable front/rear access doors for in-situ calibration in almost any environment
  • Remarkably affordable

Summary Specifications

Function & Range
Direct volts 0 to ± 1020 V
Direct Current 0 to 20.5 A
Alternating volts 1 mV to 1020 V
10 Hz to 500 kHz
Volt*Hertz 1000 V@ 10 kHz/330 V@100 kHz
Alternating current 29 μA to 20.5 A
10 Hz to 30 kHZ
Waveforms Sine, square, triangle, truncated sine
Resistance 0 MΩ to 1100 MΩ
Capacitance 220 pF to 110 mF
Power (phantom loads) 20.9 kW
Phase control 0.01°
Thermocouple (source and measure temperature) B, C, E, J, K L N R, S, T, U
10 μV/°C
RTD (source temperature) Pt 385-100 Ω, Pt 3926-100 Ω Pt 3916-100 Ω,
Pt 385-200 Ω, Pt 385-500 Ω, Pt385 1000 Ω,
PtNi 385-120 Ω, (Ni120), Cu 427 10 Ω
Interfaces RS-232, IEEE 488
Phase lock Yes
Frequency uncertainty <2.5 ppm
External frequency reference (10 MHz) Yes
Calibration Documentation 17025 accredited report of calibration included

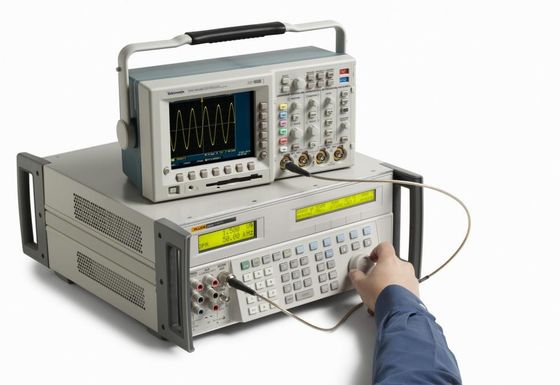

Oscilloscope calibrator (optional) Levelled sine wave from 5 mV to 5.5 Vpp max, frequencies 50 kHz to 600 kHz and 3.5 Vpp max to 1100 MHz; edge rise times of < 300ps, multiple trigger functions, lowest dc, square wave and timing uncertainty
Power calibrator (optional) Composite harmonic, flicker simulation, sags and swells simulation modes

List of Options
Model Name Description
5522A Multiproduct Calibrator
5522A/6 Multiproduct Calibrator with 600 MHz
Oscilloscope Calibration Option
5522A/1GHZ Multiproduct Calibrator with 1100 MHz
Oscilloscope Calibration Option
5522A-PQ Multiproduct Calibrator with Power Quality Option
5522A-PQ/6 Multiproduct Calibrator with Power Quality and
600 MHz Oscilloscope Calibration Options
5522A-PQ/1GHZ Multiproduct Calibrator with Power Quality and
1100 MHz Oscilloscope Calibration Options

Multifunctional Fluke 5522A Calibrator Practical Stable High Performance 0Multifunctional Fluke 5522A Calibrator Practical Stable High Performance 1Multifunctional Fluke 5522A Calibrator Practical Stable High Performance 2


FAQ:

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
