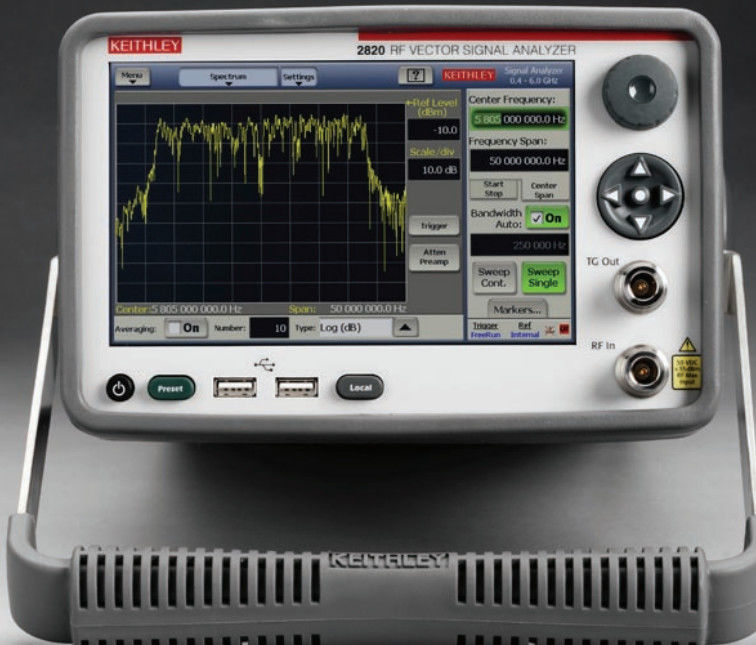

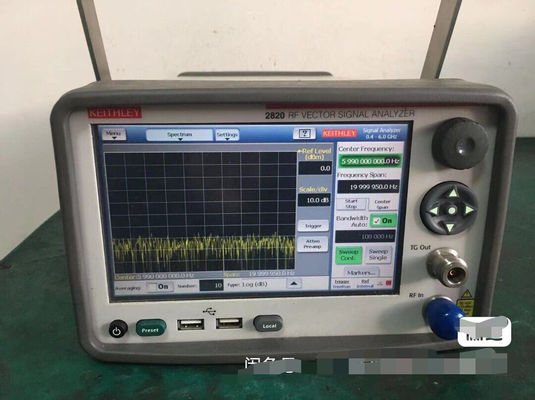

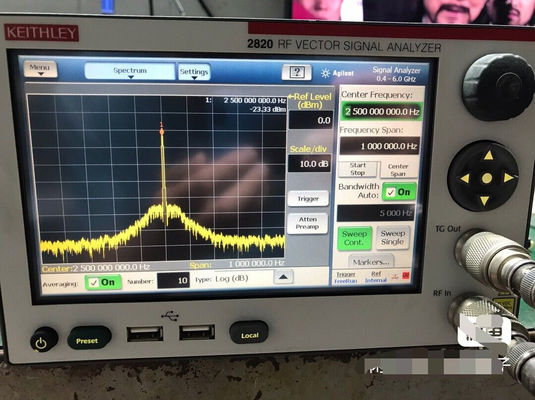

FCC Keithley 2820 RF Vector Signal Analyzer , Flexible WCDMA Mobile Phone Testers

FCC Keithley 2820 RF Vector Signal Analyzer , Flexible WCDMA Mobile Phone Testers

  • FCC Keithley 2820 RF Vector Signal Analyzer , Flexible WCDMA Mobile Phone Testers
  • FCC Keithley 2820 RF Vector Signal Analyzer , Flexible WCDMA Mobile Phone Testers
  • FCC Keithley 2820 RF Vector Signal Analyzer , Flexible WCDMA Mobile Phone Testers
  • FCC Keithley 2820 RF Vector Signal Analyzer , Flexible WCDMA Mobile Phone Testers
FCC Keithley 2820 RF Vector Signal Analyzer , Flexible WCDMA Mobile Phone Testers
Product Details:
Place of Origin: USA
Brand Name: Keithley
Certification: FCC
Model Number: 2820
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Signal Analyzer Frequency: 400MHz To 4GHz Or 6GHz
Warranty: One Month Usage: Spectroradiometer Integrating Sphere Spectrum Analyzer For Led
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

FCC RF Vector Signal Analyzer

,

Keithley 2820 RF Vector Signal Analyzer

,

Flexible WCDMA Mobile Phone Testers

RF Vector Signal Analyzer Keithley 2820 WCDMA Mobile Phone Testers



Description of Signal Analyzer Keithley 2820



Vector Signal Analysis Mode—The Model 2820 is designed to be combined with a variety of signal analysis personality options for testing to the most common wireless standards, such as GSM, EDGE, W-CDMA FDD, cdmaOne, cdma2000, 802.11 WLAN, and 802.16e mobile-WiMAX. A robust set of measurements, instrument settings, and test limits are customized for each of the various standards, saving instrument configuration time and minimizing the potential for operator error. For example, an ACPR measurement for each of the standards is part of the signal analysis personality option.



Keithley 2820

The Model 2820 RF Vector Signal Analyzer is a mid-performance test instrument designed for R&D and production testing of modern RF communications equipment and devices. This next-generation instrument combines state-of-the-art RF and digital signal processing (DSP) technology to measure RF test signals rapidly with high accuracy and excellent repeatability. Its compact half-rack enclosure and competitive pricing make it a cost-effective solution for many test applications. The Model 2820's DSP-based software-defined radio (SDR) architecture and 40MHz bandwidth ensure it has the capability to measure today's signals and also the flexibility to handle tomorrow's. Today's mobile phones are designed to connect to more types of devices than ever before, so they must integrate with a growing number of wireless standards. As new wireless standards emerge, the Model 2820 is engineered for easy upgrades, which extend its useful life and provide an ongoing return on investment far longer than traditional instruments.
Key Features and Benefits:



  •
  • Superior Performance

  •
  • 400MHz to 6GHz frequency range

  •
  • 46dBm to +35dBm measurement range

  •
  • 40MHz signal bandwidth

  •
  • 0.6dB absolute amplitude accuracy

  •
  • 0.15dB amplitude repeatability

  •
  • High Speed

  •
  • 650MHz/s @1kHz bandwidth characteristic spectrum analysis sweep update rate

  •
  • 24ms characteristic signal analysis time for GSM measurement set

  •
  • 30ms characteristic signal analysis personality switching time

  •
  • Flexible

  •
  • MIMO-ready capability for WLAN and WiMAX

  •
  • Multi-purpose measurements: Spectrum Analysis, Adjacent Channel Power Ratio, Channel Power List, Zero Span

  •
  • Signal analysis options: GSM, EDGE, W-CDMA, cdmaOne, cdma2000, WLAN, WiMAX

  •
  • Output I-Q data to a PC for analysis

  •
  • Advanced PC connectivity: GPIB, USB, LAN, and LXI Class C


    Related Applications:





  •
  •
  •
  •
  • R&D and production testing of wireless equipment, modules and sub-assemblies, and RFIC devices

  •
  • Signal monitoring

  •
  • Education

Superior Performance

  • 400MHz to 6GHz frequency range
  • –146dBm to 35dBm measurement range
  • 40MHz signal bandwidth
  • ±0.6dB absolute amplitude accuracy
  • ±0.15dB amplitude repeatability

High Speed

  • 650MHz/s @1kHz bandwidth characteristic spectrum analysis sweep update rate
  • 24ms characteristic signal analysis time for GSM measurement set
  • 30ms characteristic signal analysis personality switching time

Flexible

  • MIMO-ready capability for WLAN and WiMAX
  • Multi-purpose measurements: Spectrum Analysis, Adjacent Channel Power Ratio, Power List, Zero Span
  • Signal analysis options: GSM, EDGE, EGPRS2 (EDGE Evolution), FSK, W-CDMA, cdmaOne, cdma2000, WLAN, WiMAX
  • Output I-Q data to a PC for analysis
  • Advanced PC connectivity: GPIB, USB, LAN, and LXI Class C



Innovative Architecture



The Model 2820’s software-defined radio architecture allows it to analyze and demodulate virtually any signal up to 40MHz bandwidth without needing to upgrade hardware. This provides high flexibility in R&D and production environments and reduces capital equipment cost. Unlike traditional instrument architectures, this DSP-based SDR architecture combines the ability to measure the signals produced by current devices with the adaptability to handle signals future devices will produce, so the instrument remains productive over a longer period. When an RF signal is input to the Model 2820, it’s down-converted to an intermediate frequency (IF), digitized by a fast, high resolution analog-to-digital converter (ADC), and routed into the waveform memory. The high speed DSP analyzes and demodulates the signal waveform. That means the instrument’s RF signal analysis capability is defined through DSP software rather than in hardware. The DSP can switch rapidly between various optional signal analysis personalities. Alternatively, the signal’s I-Q data pairs can be output to an external PC for analysis. A 100MHz fixed-rate ADC and a fixed-bandwidth, brick-wall, anti-alias filter combine to ensure high signal integrity by reducing alias spurs. The Digital Up/Down Converter (DUC/DDC) compresses and decompresses waveforms, which allows multiple signal sampling rates, conserves waveform memory space, and speeds signal processing. The instrument’s Field-Programmable Gate Array (FPGA) supports fast triggering and high speed signal conditioning and routing.
