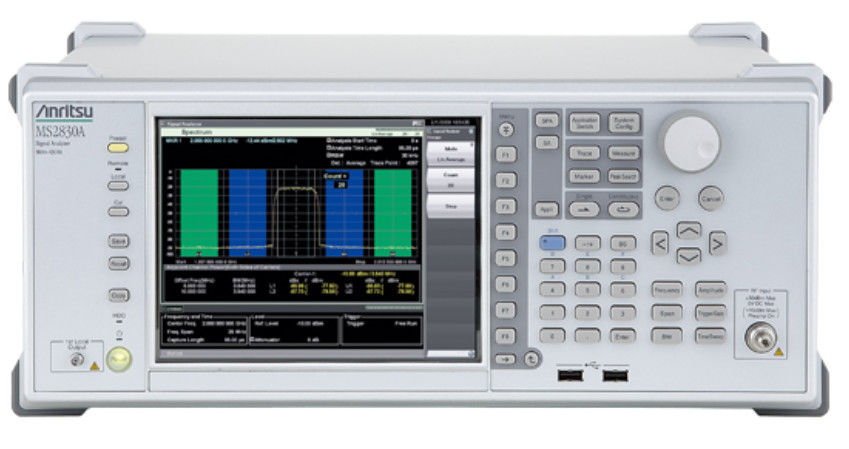

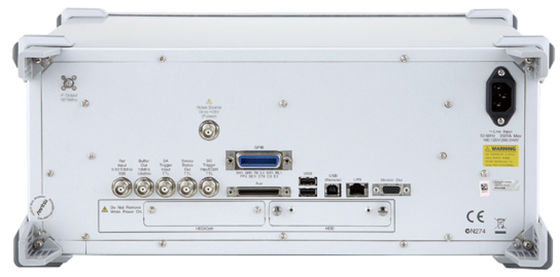

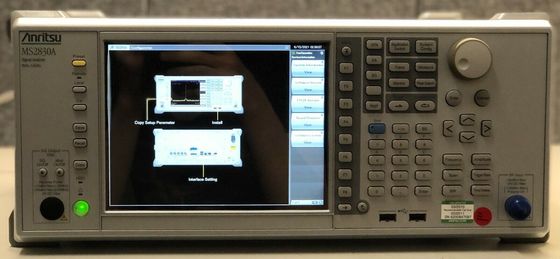

MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned

MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned

  • MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned
  • MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned
  • MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned
  • MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned
MS2830A Microwave Signal Spectrum Analyzer 9kHz-3.6GHz Pre Owned
Product Details:
Place of Origin: USA
Brand Name: Anritsu
Certification: FCC
Model Number: MS2830A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Signal Analyzer Frequency: 9kHz-3.6GHz
Warranty: One Month Usage: Spectroradiometer Integrating Sphere Spectrum Analyzer For Led
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Microwave Signal Spectrum Analyzer

,

9kHz Signal Spectrum Analyzer

,

MS2830A

9kHz-3.6GHz Spectrum Analyzer/Signal Analyzer MS2830A Microwave



Description of MS2830A Signal Analyzer



Overview

  • 9 kHz to 26.5 GHz/43 GHz frequency range; 43 GHz max. built-in preamp option
  • Best-of-class wide dynamic range over 6 GHz
  • 325 GHz max. frequency range; built-in 1st local signal output for external mixer
  • For wideband down-converter; built-in 1 GHz IF output band
  • 10/31.25/62.5/125 MHz analysis bandwidth options (signal analyzer and modulation analysis functions)
  • Supports Noise Figure and BER measurement (options)
  • Measures 50 GHz to 75 GHz and 60 GHz to 90 GHz frequency ranges in combination with either High Performance Waveguide Mixer MA2806A or MA2808A set, respectively

The Microwave Spectrum/Signal Analyzers MS2830A-044 and MS2830A-045 offer frequency coverage to 26.5 GHz and 43 GHz for unmatched value in their class. They are compatible with Anritsu’s External Mixer MA27xxC series, enabling millimeter-wave spectrum analysis to 325 GHz. Moreover, with excellent dynamic range, they also support the High Performance Waveguide Mixer options MA2806A and MA2808A for spectrum analysis of millimeter-wave wideband signals.

Like the rest of the MS2830A product family, these instruments offer excellent performance, versatility, and measurement speed. Features include:
  • Low Displayed Average Noise Level (DANL) and high Third Order Intercept (TOI) enable measurements requiring wide dynamic range
  • Wide variety of built-in measurement functions, including channel power, occupied bandwidth, adjacent channel leakage power (ACLR), spurious emissions, and much more
  • Optional wideband vector signal analysis to 26.5 GHz/43 GHz enables frequency vs. time, phase vs. time, spectrogram, and CCDF measurements
  • Comprehensive vector modulation analysis of proprietary and standard signals to 26.5 GHz/43 GHz, including LTE/LTE-Advanced, W-CDMA, GSM/EDGE, TD-SCDMA, CDMA2000, 802.11a/b/g/j/n/p, and ZigBee
  • Noise Figure Measurement Function option MS2830A-017 and Microwave Preamplifier option MS2830A-068 enable precise noise figure measurements to 26.5 GHz/43 GHz
  • Microwave Preselector Bypass option MS2830A-067 enables use of external equipment to analyze wideband signals with bandwidths to 1 GHz







List of Options
Hardware MS2830A Main frame
MS2830A-044 26.5 GHz Signal Analyzer
MS2830A-045 43 GHz Signal Analyzer
MS2830A-001 Rubidium Reference Oscillator
MS2830A-005 Analysis Bandwidth Extension to 31.25 MHz
MS2830A-006 Analysis Bandwidth 10 MHz
MS2830A-009 Bandwidth Extension to 31.25 MHz for Millimeter-wave (for MS2830A-045)
MS2830A-077 Analysis Bandwidth Extension to 62.5 MHz
MS2830A-078 Analysis Bandwidth Extension to 125 MHz
MS2830A-008 Preamplifier
MS2830A-010 Phase Noise Measurement Function
MS2830A-011 2ndary HDD
MS2830A-016 Precompliance EMI Function
MS2830A-017 Noise Figure Measurement Function
MS2830A-026 BER Measurement Function
MS2830A-067 Microwave Preselector Bypass
MS2830A-068 Microwave Preamplifier
Software
(Measurement Software for Signal Analyzer)
MX269011A W-CDMA/HSPA Downlink Measurement Software
MX269012A W-CDMA/HSPA Uplink Measurement Software
MX269013A GSM/EDGE Measurement Software
MX269013A-001 EDGE Evolution Measurement Software
MX269015A TD-SCDMA Measurement Software
MX269017A Vector Modulation Analysis Software
MX269020A LTE Downlink Measurement Software
MX269020A-001 LTE-Advanced FDD Downlink Measurement Software
MX269021A LTE Uplink Measurement Software
MX269021A-001 LTE-Advanced FDD Uplink Measurement Software
MX269022A LTE TDD Downlink Measurement Software
MX269022A-001 LTE-Advanced TDD Downlink Measurement Software
MX269023A LTE TDD Uplink Measurement Software
MX269023A-001 LTE-Advanced TDD Uplink Measurement Software
MX269024A CDMA2000 Forward Link Measurement Software
MX269024A-001 All Measure Function
MX269026A EV-DO Forward Link Measurement Software
MX269026A-001 All Measure Function
MX269028A WLAN (802.11) Measurement Software
MX269028A-001 802.11ac (80 MHz) Measurement Software
MX269030A W-CDMA BS Measurement Software
Warranty Service MS2830A-ES210 2 years Extended Warranty Service
MS2830A-ES310 3 years Extended Warranty Service
MS2830A-ES510 5 years Extended Warranty Service







FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
