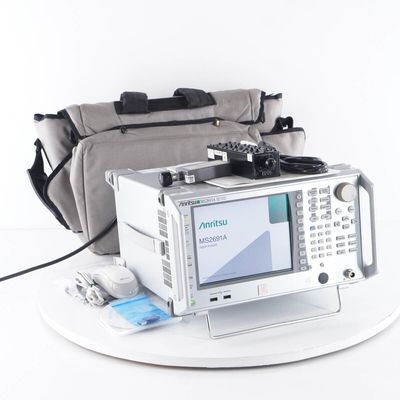

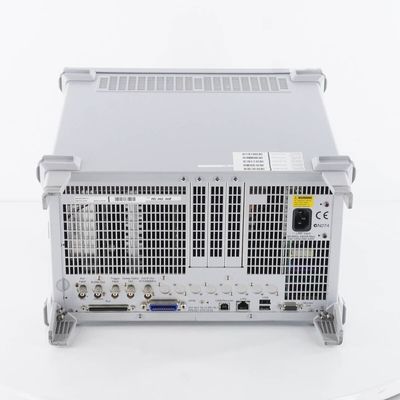

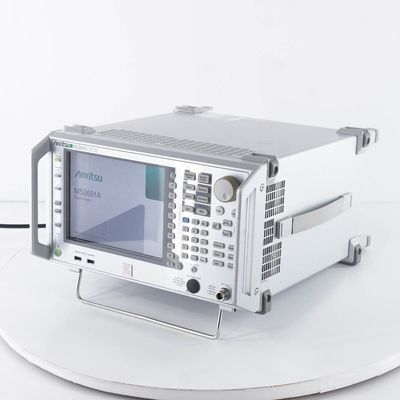

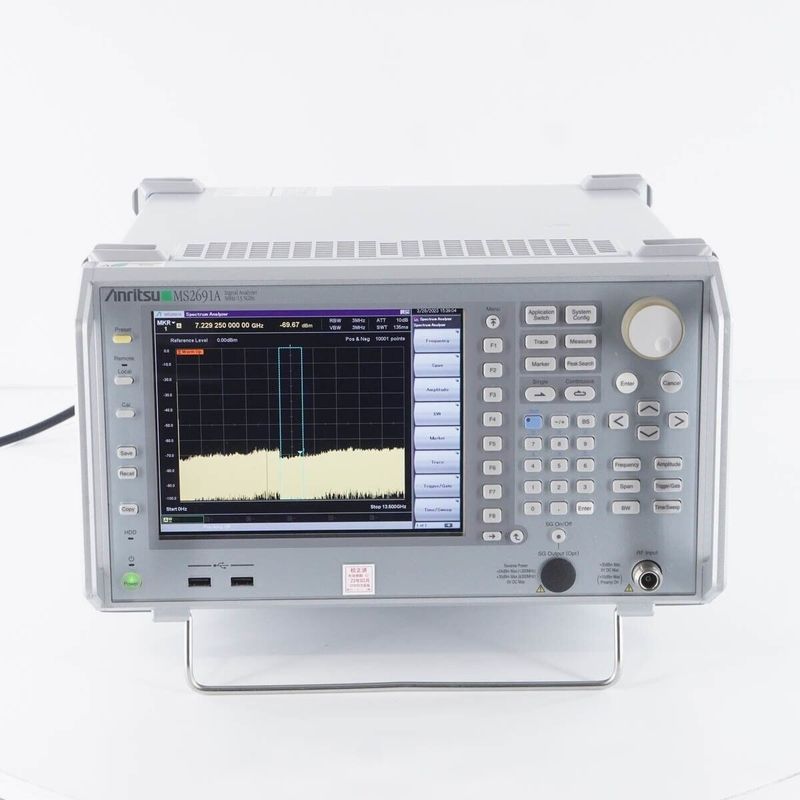

50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer

50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer

  • 50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer
  • 50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer
  • 50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer
  • 50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer
  • 50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer
50Hz-13.5GHz Digital Signal Analyzer , Anritsu MS2691A Spectrum Analyzer
Product Details:
Place of Origin: USA
Brand Name: Anritsu
Certification: FCC
Model Number: MS2691A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Signal Analyzer Frequency: 50 Hz To 13.5 GHz
Warranty: One Month Usage: Spectroradiometer Integrating Sphere Spectrum Analyzer For Led
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

50Hz Digital Signal Analyzer

,

13.5GHz Digital Signal Analyzer

,

Anritsu MS2691A

MS2691A Anritsu Signal Analyzer



Description of MS2691A Signal Analyzer



Signal Analysis will never be the same again

MS269xA Series Signal Analyzers are the latest high performance signal analyzers for next-generation communication applications. The MS269xA Series Signal Analyzer base units include swept spectrum analysis, FFT signal analysis, and a precision digitizer function. Add options to incorporate a Signal Generator, to turn the instrument into a hassle free, plug and play, one box solution.

The MS269xA Series Signal Analyzers support a standard analysis bandwidth of 31.25 MHz that can be extended to 62.5 MHz /125 MHz with optional hardware. Using a patented calibration process, the multipoint amplitude calibration and the phase calibration result in a level accuracy of ±0.5 dB across a 6 GHz span. No other analyzer on the market can meet that specification! These boxes are superlative in every way -- they measure the widest signals and using the latest technology, make measurements faster than ever before. The modular architecture ensures a box that grows as measurement requirements change.

A series of options enables standards-based modulation analysis, vector signal generation, and BER measurement. The end-user can configure a one-box solution that dramatically reduces cost, footprint, and Total Average Cycle Time (TACT) for device evaluation.

The MS269xA Series Signal Analyzers are accurate enough for the most demanding R&D environment, yet are fast enough for the factory floor! Currently supported applications include GSM, GPRS, EDGE, W-CDMA, and LTE.

The wideband FFT signal analyzer (analysis bandwidth of 31.25 MHz with option for 62.5 MHz /125 MHz) supports high-speed continuous measurements including CCDF, frequency vs. time, spectrum, and power vs. time analysis. The standard digitizing function can capture waveforms and immediately play them out using the optional Signal Generator. An extended digitizer option adds the ability to capture signals up to 20 MHz wide for up to 4 hours.





List of Options
Communication system Applicable software
Basic Digital Signal Analysis Vector Modulation Analysis Software
5G NR (TDD) (UPDATED) 5G NR TDD sub-6GHz Downlink Measurement Software
5G NR TDD sub-6GHz Uplink Measurement Software
LTE/LTE-Advanced (FDD) LTE Downlink Measurement Software
LTE-Advanced FDD Downlink Measurement Software
LTE Uplink Measurement Software
LTE-Advanced FDD Uplink Measurement Software
LTE IQproducer
LTE-Advanced FDD Option
LTE/LTE-Advanced (TDD) LTE TDD Downlink Measurement Software
LTE-Advanced TDD Downlink Measurement Software
LTE TDD Uplink Measurement Software
LTE-Advanced TDD Uplink Measurement Software
LTE TDD IQproducer
LTE-Advanced TDD Option
GSM/EDGE
W-CDMA/HSPA/HSPA Evolution
GSM/EDGE Measurement Software
EDGE Evolution Measurement Software
W-CDMA/HSPA Downlink Measurement Software
W-CDMA/HSPA Uplink Measurement Software
HSDPA/HSUPA IQproducer
W-CDMA BTS W-CDMA BS Measurement Software
CDMA2000/1xEV-DO EV-DO Forward Link Measurement Software
All Measure Function
CDMA2000 Forward Link Measurement Software
All Measure Function
TD-SCDMA TD-SCDMA Measurement Software
WLAN WLAN (802.11) Measurement Software
802.11ac (160 MHz) Measurement Software
WLAN IQproducer
802.11ac (80 MHz) Option
TDMA type (PHS, ETC/DSRC, Digital LMR etc.) TDMA IQproducer
ETC/DSRC ETC/DSRC Measurement Software
Composite Waveforms for Signal Generator Option Multi-Carrier IQproducer

Hardware Options Remarks
Rubidium Reference Oscillator Aging rate ±1 × 10-10/month
Wideband Analysis Hardware Extends the Analysis Bandwidth to 125 MHz
Analysis Bandwidth Extension Extends the Analysis Bandwidth to 62.5 MHz / 125 MHz
6 GHz Preamplifier 100 kHz to 6 GHz
Vector Signal Generator 125 MHz to 6 GHz
Extension of Preselector Lower Limit to 3 GHz Extends lower limit of pre-selector to 3 GHz
Noise Figure Measurement Function Y-factor method using a Noise Source



Applications:

  • BTS and UE transmitter testing
  • Receiver testing with the Signal Generator option
  • High-performance for R&D
  • High-speed for manufacturing
  • General Purpose analysis for modulation R&D
  • 5G NR (sub-6 GHz)
  • LTE/LTE-Advanced (FDD/TDD), EDGE Evolution, and HSPA Evolution
  • WLAN testing including IEEE802.11a/b/g/j/n/p/ac
  • Power amplifier testing
  • Satellite Communications
  • Physical layer Testing for all 3GPP technologies
