| Brand Name: | R&S |
| Model Number: | SMBV100B |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
R&S Rohde Schwarz Signal Generator SMBV100B Vector Signal Generator 6GHz
Description of R&S R&S Rohde And Schwarz SMBV100B
The state-of-the-art R&S®SMBV100B vector signal generator sets standards for its class. Ultra high output power, fully calibrated wideband signal generation and intuitive touchscreen operation make the R&S®SMBV100B ideal for all kinds of applications.
The R&S®SMBV100B has many GNSS options that transform the instrument into a reliable, full-featured GNSS simulator. Advanced simulation capabilities can run realistic and complex yet repeatable GNSS scenarios under controlled conditions.
Always in line with the latest major digital communications standards, such as 5G NR, LTE and WLAN, the SMBV100B is the preferred test solution for receiver and component characterization.
Key features of SMBV100B Vector Signal Generator
Perfect for output power
• Ultra high output power: up to +33 dBm at 1 GHz
• Excellent level accuracy for CW and modulated signals: level linearity of < 0.2 dB (meas.)
Perfect for signal quality
• New real-time, user-defined frequency response correction to compensate for the effect of test fixtures
• Very low single-sideband (SSB) phase noise: < –134 dBc (meas.) at 1 GHz and 20 kHz offset
• Wide modulation bandwidth with perfect accuracy: modulation frequency response of < 0.3 dB (meas.) across 1 GHz bandwidth
• Excellent EVM and ACPR up to high power levels
Perfect for upgrading
• Easy upgrading of instrument at customer premises via software keycodes
• Time-limited licenses and waveform package for software options
Perfect for use

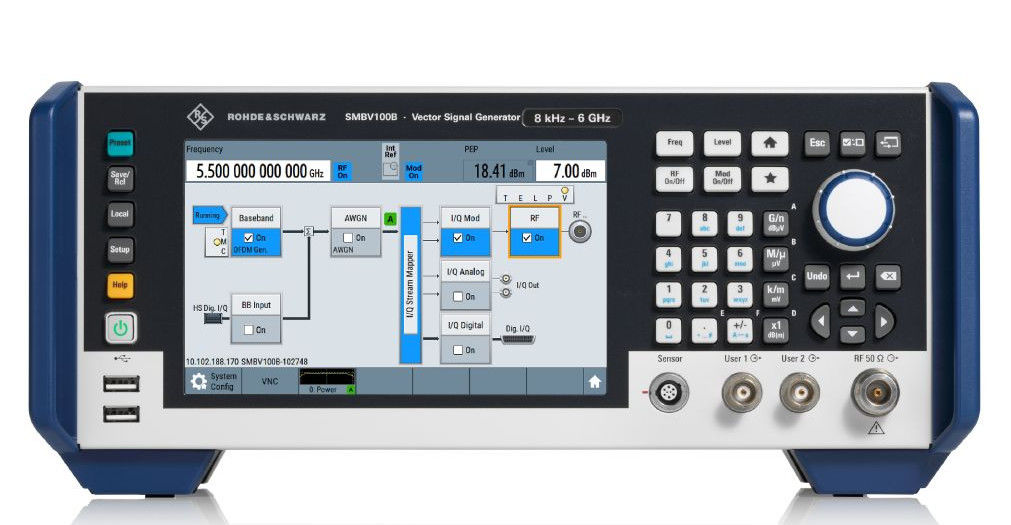

• Convenient operation via 7" touchscreen
• Automation made easy with context-sensitive help system and SCPI recording
• Internal real-time signal generation
• Protecting user data
Measured EVM performance vs. Level
Measured EVM performance vs. RMS level (R&S®SMBV100B equipped with R&S®SMBVB-K31 and R&S®SMBVB-B32 options).
| B103 | 8 KHz to 3 GHz |
| B106 | Frequency Extension to 6 GHz |
| B1 | OCXO Reference Oscillator |
| B1H | High Performance OCXO Reference Oscillator |
| B3 | 1GHz Reference Input/Output |
| K704 | Flexible Reference input from 1 MHz to 100 MHz |
| K22 | Pulse Modulator |
| K23 | Pulse Generator |
| K27 | Pulse train |
| K24 | Multifunction Generator |
| K720 | AM/FM/ |
| K31 | High Output Power |
| B32 | Ultra High Output Power |
| K90 | Phase coherence |

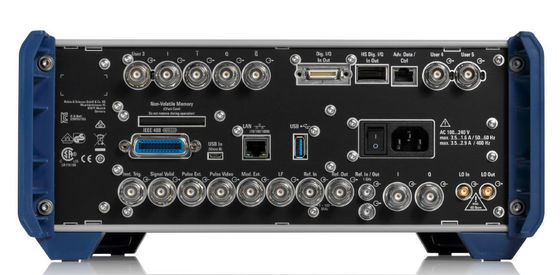

| B81 | Rear panel connectors for RF Path |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
