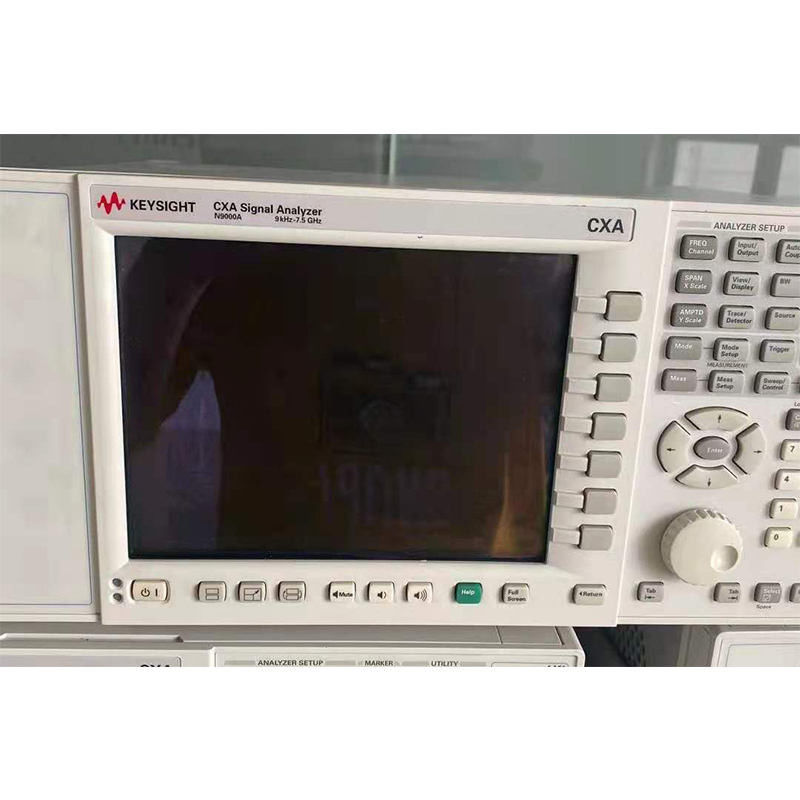

N9000A CXA Keysight Signal Analyzer 9KHZ-7.5GHZ Fit HP Agilent

N9000A CXA Signal Analyzer, 9 kHz to 26.5 GHz

Description of N9000A CXA Signal Analyzer

Master the essentials with the CXA

A great low-cost signal analyzer surpasses the basics and covers what''s essential. That''s the strength of the CXA signal analyzer, the leading low-cost tool for essential signal characterization. Its capabilities provide a foundation for cost-effective testing and seamless integration with the other X-Series models. The CXA is also an excellent teaching tool for RF technology and signal analysis. Get must-have capability with X-Series expandability in the CXA - and master the essentials.

The CXA signal analyzer is a member of the X-Series, which is an evolutionary approach to signal analysis that spans instrumentation, measurements, and software. It gives you the flexibility to satisfy your business and technical requirements across multiple products and programs —now and in the future.

Windows and MS Windows are U.S. registered trademarks of Microsoft Corporation.

Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Agilent Technologies, Inc.


Functionality

• 9 kHz to 3 or 7.5 GHz; internal preamplifier options up to 7.5 GHz
• Optional built-in tracking generator 3 or 6 GHz
• 10 MHz (standard), 25 MHz (optional) analysis bandwidth
• View configuration choices for CXA instrument hardware

Performance

• ±0.5 dB absolute amplitude accuracy
• +17 dBm third order intercept (TOI)
• -163 dBm displayed average noise level (DANL)
• -66 dB W-CDMA ACLR dynamic range (with noise correction on)

Measurement Application & Software

• CXA supports over 25 measurement applications, covering cellular communication, wireless connectivity, digital video, and general purpose. View full list of measurement applications
• Advanced analysis of up to 70 signal formats, software runs inside the CXA. 89600B VSA software
• Agilent''s PowerSuite one-button power measurements included as standard
• No application required? Want faster delivery?*

  Evaluate the pre-configured N9000AEP CXA Signal Analyzer Express Configuration

Automation & Communication Interface

• LXI class C compliant, SCPI, and IVI-COM

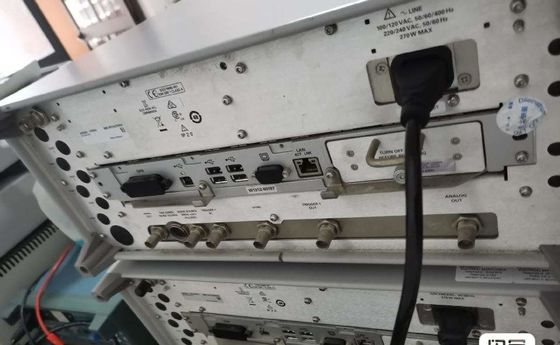

• USB 2.0, 1000 Base-T LAN, GPIB
• Programming remote language compatibility with ESA and other X-Series
• Common X-Series user interface / Open Windows® XP operating system
