Created with Pixso. Rackmount MXG X Series RF Signal Generator Keysight Agilent N5181B

Rackmount MXG X Series RF Signal Generator Keysight Agilent N5181B

Brand Name: Keysight (Agilent)
Model Number: N5181B
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Malaysia
Product Name:
MXG X-Series RF Analog Signal Generator
Frequency:
9 KHz To 6 GHz
Form Factor:
Benchtop/Rackmount ( /1CR112A )
Type:
Analog
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

Rackmount RF Signal Generator

,

MXG RF Signal Generator

,

N5181B MXG Signal Generator

Product Description
Keysight Agilent N5181B MXG X-Series RF Analog Signal Generator 9 KHz To 6 GHz
Description of Keysight Agilent N5181B

The N5181B MXG X-Series RF analog high performance signal generators are fine-tuned to be your “golden transmitter” in R&D with 9 kHz to 6 GHz frequency coverage.



Test your design within and beyond its limits



  • Generate the signals you need with outstanding hardware performance, including unmatched phase noise and spurious characteristics
  • Drive power amplifiers and characterize nonlinear behavior with industry-leading output power
  • Thoroughly test receiver performance by simulating complex analog modulation scenarios with multi-function generator capability
  • Lower your cost of ownership with 3-year cal cycles and comprehensive solutions for self-maintenance


Overview and Features of N5193A UXG X-Series Agile Signal Generator



Signal characteristics

  • 9 kHz to 3 or 6 GHz
  • +24 dBm specified power to 3 GHz with electronic attenuator
  • -146 dBc phase noise at 1 GHz and 20 kHz offset
  • - 96 dBc non-harmonics at 1 GHz and > 10kHz offset

Modulation and sweep

  • AM, FM, ØM, pulse, and narrow pulse
  • Pulse train generator
  • 10 MHz multifunction generator and LF out
  • Digital step and list sweep modes

Automation and communication interface

  • 1000BaseT LAN, LXI, USB 2.0, and GPIB
  • SCPI, IVI-COM, MATLAB drivers
  • Backward compatible with ESG, MXG, PSG, and 8648x signal generators
  • Keysight USB power sensor compatible with embedded display and SCPI control

The pure and precise MXG

Whether you’re pushing for more dynamic range or an optimized receiver rejection, the MXG delivers what you need: phase noise, non-harmonics, output power, and more. Take your devices and designs to the limit with the MXG.

Generate the signals you need with outstanding hardware performance

  • Test radar receiver sensitivity or characterize ADC or mixer signal-to-noise ratio, with unmatched phase noise and spurious performance
  • Drive receiver front-ends for out-of-band rejection with industry-leading output power
  • Simulate multi-channel composite analog modulation with integrated multifunction generator
  • Create variable RADAR PRI and pulse width with integrated pulse train generator

Maximize resources with low cost of ownership

  • Increase uptime with high mean time between failures (MTBF) based on first- generation MXG track record
  • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs
List of Options
006 Instrument security and removable memory card
099 Expanded license key upgradability
1CM110A Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs Phantom Gray Color
1CN106A Handle kit 88.1mm H (2U) - two front handles Phantom Gray Color
1CP104A Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs Phantom Gray Color
1CR112A Rack Slide Kit, Mounting lengths 279.4-406.4mm Phantom Gray Color
1EA High output power
1EM Move all connectors to rear panel
1EQ Low specified power (less than -110 dBm)
1ER Flexible reference input (1-50 MHz)
303 Multifunction generator
320 Pulse train generator, fixed perpetual license
503 Frequency range, 9 kHz to 3 GHz
506 Frequency range, 9 kHz to 6 GHz
A6J ANSI Z540-1-1994 Calibration
AXT Hard transit case
UK6 Commercial calibration certificate with test data
UNT AM, FM, phase modulation
UNW Narrow pulse modulation
UNX Low phase noise
UNY Enhanced low phase noise
UNZ Fast switching
FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

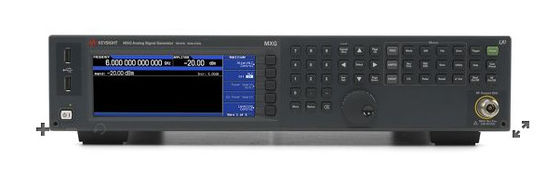

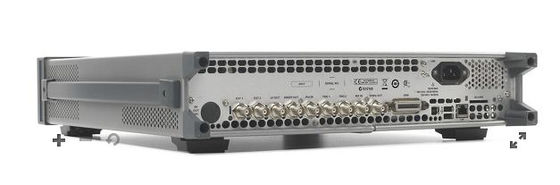

Rackmount MXG X Series RF Signal Generator Keysight Agilent N5181B 0Rackmount MXG X Series RF Signal Generator Keysight Agilent N5181B 1

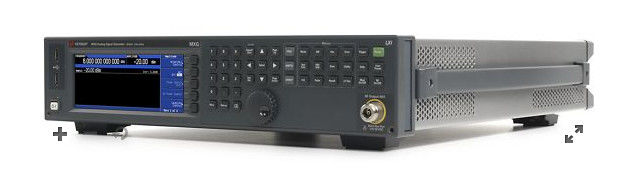

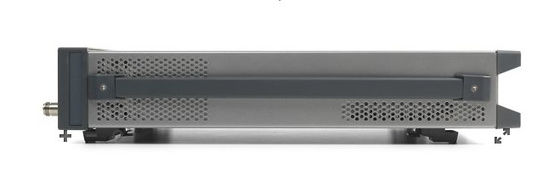

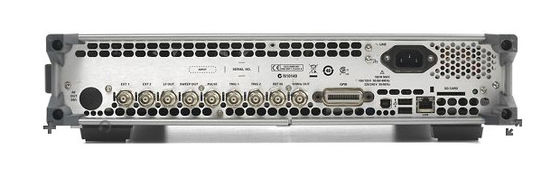

Rackmount MXG X Series RF Signal Generator Keysight Agilent N5181B 2Rackmount MXG X Series RF Signal Generator Keysight Agilent N5181B 3Rackmount MXG X Series RF Signal Generator Keysight Agilent N5181B 4
