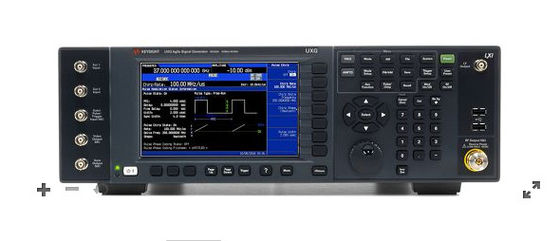

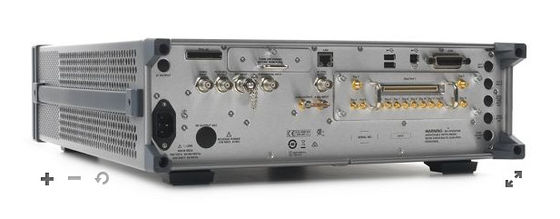

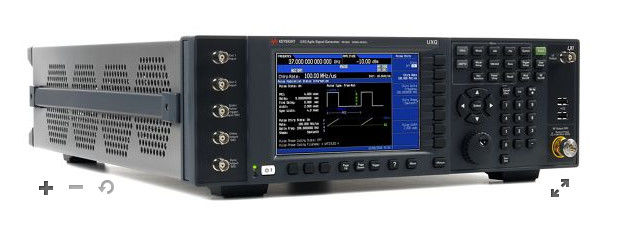

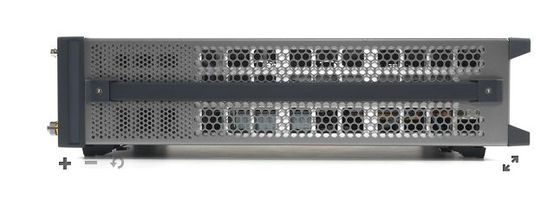

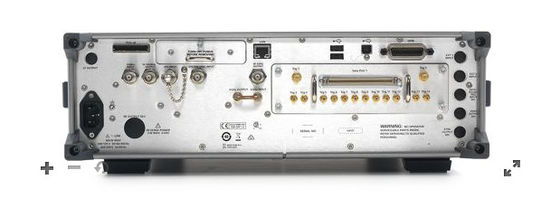

Keysight Agilent N5193A UXG X-Series Agile Signal Generator 10 MHz To 40 GHz

Description of Keysight Agilent N5193A

The N5193A UXG agile signal generator provides fast frequency, amplitude, and phase coherent switching from 10 MHz to 40 GHz.

Overview and Features of N5193A UXG X-Series Agile Signal Generator

• Get closer to reality: simulate increasingly complex signal environments for radar, EW & antenna-test
• Test sooner & increase confidence in EW systems by generating signal simulations when you need them: the UXG is a scalable threat simulator
• Use pulse descriptor words (PDWs) to generate long pulse trains & individually control pulse characteristics
• Accurately simulate multi-threat environments: 180-ns PDW update rate, chirps 10 to 25% of carrier frequency, pulses as narrow as 10 ns

What's included:

• 10 kHz frequency resolution
• 100 μs switching speed
• Amplitude range of +10 to -10 dBm
• Standard phase noise of -117 dBc/Hz (typ) at 20 kHz offset for a 10 GHz carrier frequency
• 3.5 mm (f) to 3.5 mm (f) connector adapter (20 GHz model only)
• 2.4 mm (f) to 2.4 mm (f) and 2.4 mm (f) to 2.9 mm (f) connector adapters (40 GHz model only)
• Country-specific power cord
• Documentation set (CD-ROM)
• One day of on-site startup assistance​
