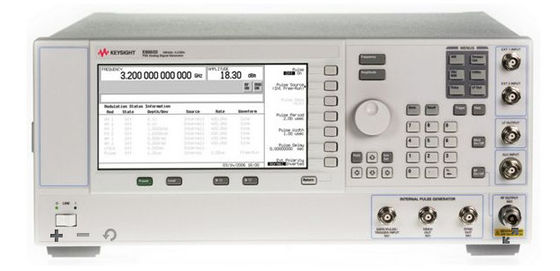

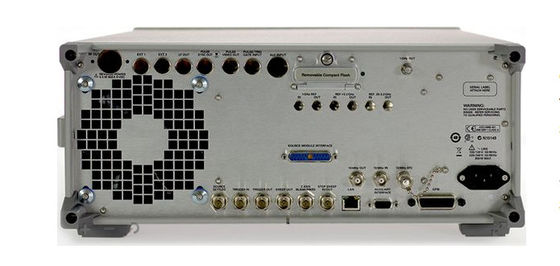

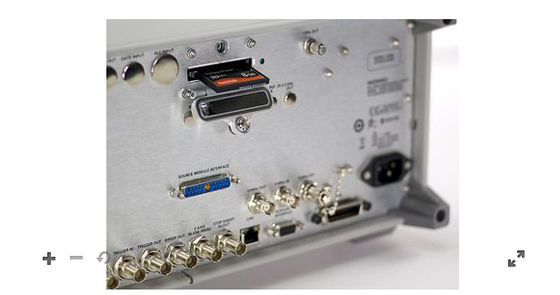

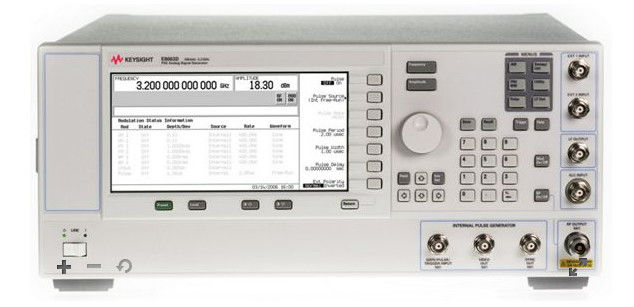

Agilent E8663D PSG RF Function Generator , Multipurpose Keysight RF Generator

Agilent E8663D PSG RF Function Generator , Multipurpose Keysight RF Generator

  • Agilent E8663D PSG RF Function Generator , Multipurpose Keysight RF Generator
  • Agilent E8663D PSG RF Function Generator , Multipurpose Keysight RF Generator
  • Agilent E8663D PSG RF Function Generator , Multipurpose Keysight RF Generator
Agilent E8663D PSG RF Function Generator , Multipurpose Keysight RF Generator
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: E8663D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: PSG RF Analog Signal Generator Frequency: 100 KHz To 9 GHz
Form Factor: Rackmount ( /1CM ) Type: Analog/RF
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Agilent RF Function Generator

,

E8663D RF Function Generator

,

Multipurpose Keysight RF Generator

Keysight Agilent E8663D PSG RF Analog Signal Generator 100 kHz to 9 GHz
Description of Keysight Agilent E8663D

The E8663D is a high-performance analog signal generator with high output power, low phase noise, and tunes over a frequency range from 100 kHz to 9 GHz for radar systems, satellite evaluation, and when a low noise local oscillator is required.



Overview and Features of E8663D PSG RF Analog Signal Generator



Get the industry’s lowest phase noise in a commercially-available signal generator.

  • Tackle demanding radar and satellite communications measurements with metrology-grade performance, including high output power and superior level accuracy
  • Use as an ideal reference in phase noise test systems or for analog-to-digital converter testing with the lowest phase noise in a commercial source
  • Characterize devices and circuits by adding AM, FM, ΦM, and pulse modulation to your signal
  • Improve existing test system performance. The E8663D is built on the outstanding legacy of the 8663A and is fully code compatible

Signal Characteristics

  • 100 kHz to 3.2 or 9 GHz with .001 Hz resolution
  • -135 to +24 dBm typical output power with Option 1EU
  • Industry's best SSB phase noise Option UNY

Modulation

  • AM, FM, ØM, and pulse (may be simultaneously enabled)
  • Typical 8 ns rise/fall times and 20 ns pulse width from 10 MHz to 9 GHz
  • Dual internal function generators: sine, square, triangular, ramp, and noise

Automation and Communication Interface

  • 10BaseT LAN and GPIB
  • SCPI and IVI-COM drivers
  • Backwards compatible with the 8662A, 8663A and E8663B signal generators
  • Compatible with the E5500 and 3048A phase noise test systems
List of Options
007 Analog ramp sweep
008 Removable flash memory
063 E8663B backwards compatibility option bundle - 1EU, 1E1, 1EH, UNX, UNT
0BW Printed Copy of the Assembly-Level Service Manual
1A7 PSG Series ISO 17025 compliant calibration with test data
1CM Rackmount flange kit
1CN Front handle kit
1CP Rackmount flange with front handle kit
1E1 Step attenuator
1EH Improved harmonics below 2 GHz
1EM Moves all front panel connectors to the rear panel
1EU High output power
1SM Scan modulation
503 Frequency range from 100 kHz to 3.2 GHz
509 Frequency range from 100 kHz to 9.0 GHz
A6J PSG Series ANSI Z540 compliant calibration with test data
ABA Printed Copy of the English Documentation Set
CD1 CD-ROM Containing the English Documentation Set
HY2 Enhanced ultra low phase noise level 2
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
U01 Firmware Enhancement- Adds internal channel flatness correction and a new softkey for I/Q phase adjustment
UK6 Commercial calibration certificate and test data
UNT AM, FM, phase modulation, and LF output
UNU Pulse modulation
UNW Narrow pulse modulation
UNX Ultra-low phase noise performance
UNY Enhanced ultra low phase noise
FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
