RF Signal Generator
Created with Pixso. RF Microwave Radio Signal Generator Keysight Agilent E8241A PSG L Series

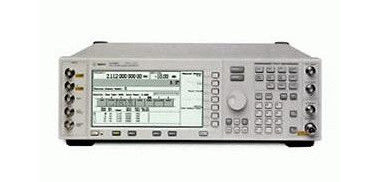

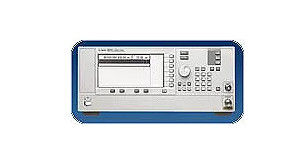

RF Microwave Radio Signal Generator Keysight Agilent E8241A PSG L Series

Brand Name: Keysight (Agilent)
Model Number: E8241A
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Malaysia
Product Name:
PSG-L Series Performance Signal Generator
Frequency:
250 KHz - 20 GHz
Form Factor:
Benchtop/Rackmount ( /1CM /1CP )
Type:
Digital/ Microwave/RF ( /1EA /1ED )
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Highlight:

Microwave Radio Signal Generator

,

E8241A Radio Signal Generator

,

PSG RF Microwave Signal Generators

Product Description
Keysight Agilent E8241A PSG-L Series Performance Signal Generator 20 GHz
Description of Keysight Agilent E8241A

The Agilent Performance Signal Generator series offers accurate characterization of products and eliminates the need of an external amplifier for testing high power devices. The PSG series provides 20 dBm at 20 GHz (option 1EA) reducing overall equipment and test costs. The superior level accuracy of the PSG series (+/- 0.7 dB) reduces test uncertainties and improves production throughput. Standard products have phase noise performance of -85 dBc/Hz at 1khz offset and -110 dBc/Hz at 20 kHz offset and a 10 GHz carrier. The PSG provides improved performance with option UNJ of -98 dBc/Hz at 1 kHz offset and -110 dBc/Hz at 10 kHz offset and a 10 GHz carrier. The new PSG series guarantees accurate evaluation of devices, errors can be pinpointed early on in the design process thus resulting in a reduced development time.



Overview and Features of E8241A PSG-L Series Performance Signal Generator

  • Widest frequency range (250 kHz to 20 GHz) with 0.01 Hz frequency resolution - standard
  • Highest power available (+13/+20) at 20 GHz with excellent level accuracy (0.7 and 0.9 dB)
  • SSB phase noise is -110 dBc/Hz at 20kHz offset at 10 GHz carrier
  • Optional SSB phase noise is -98 dBc/Hz at 1 kHz offset at 10 GHz carrier
  • Digital Sweep functions (list and step) with capability of calibrating every point at the test port using the user flatness correction
  • Easy frequency extension to 110 GHz using the 83550 series Millimeter-Wave Source Modules
List of Options
0BV Service Documentation, Component Level
0BW Service Documentation, Assembly Level
1CM Rackmount Kit
1CN Handle Kit
1CP Rackmount and Handle Kit
1E1 Add step attenuator
1EA High RF output power
1ED Type-N RF output connector
AB1 Korea Quick Users Guide (Korean localization)
AB2 China Quick Users Guide (Chinese localization)
ABA U.S. Quick Users Guide (English localization)
ABD Germany Quick Users Guide (German localization)
ABE Spain Quick Users Guide (Spanish localization)
ABF France Quick Users Guide (French localization)
ABJ Japan Quick Users Guide (Japanese localization)
ABZ Italy Quick Users Guide (Italian localization)
C04 Moves all front panel connectors to rear panel
CD1 CD-ROM - English documentation set
R-51B-001-3C 1 year Return-to-Agilent warranty extended to 3 years
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data
UN5 Standard output power
UNJ Enhanced phase noise performance
UNN No step attenuator




FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
