Agilent basic DC power supplies offer essential features for a tight budget. The Agilent N8731A is a 8V, 400A, 3200W, single output power supply in a small 2U package. It offers flexible AC input options, analog/resistance control of output voltage and current, as well as parallel and series connection of multiple supplies to achieve more output current or voltage respectively.

Please select the AC input voltage option carefully. The AC input voltage hardware is permanently installed at the factory and cannot be changed under any circumstances after delivery.

If the wrong AC input voltage option is purchased and delivered, the unit would need to be returned. Product returns are subject to Agilent approval and applicable charges. A new order would then have to be placed.

DC Output Ratings of Keysight (Agilent) N8731A DC Power Supply.

• Voltage: 8V

• Output Current: 400A

• Output Power: 3200W

​Programming Accuracy of Keysight (Agilent) N8731A DC Power Supply.

• Voltage: 0.05% + 4mV
• Current: 0.1% + 800mA

Output Ripple and Noise of Keysight (Agilent) N8731A DC Power Supply.

• CV p-p: 60mV

• CV rms: 8mV

• Small, high density 2U package

• Built-in voltage and current measurement
• Full protection from over-voltage and over-current
• LAN, USB, and GPIB interfaces standard
• Easy front-panel operation
• Flexible configuration: connect multiple units in parallel or series
• Analog programming and monitoring
• Standard with IVI-COM drivers - supports SCPI

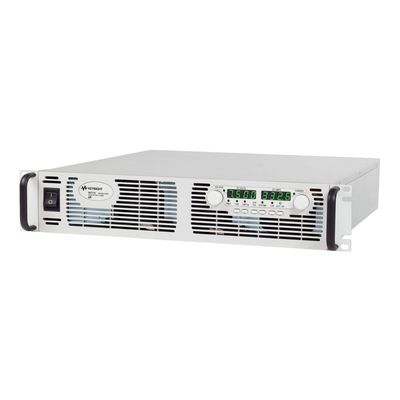

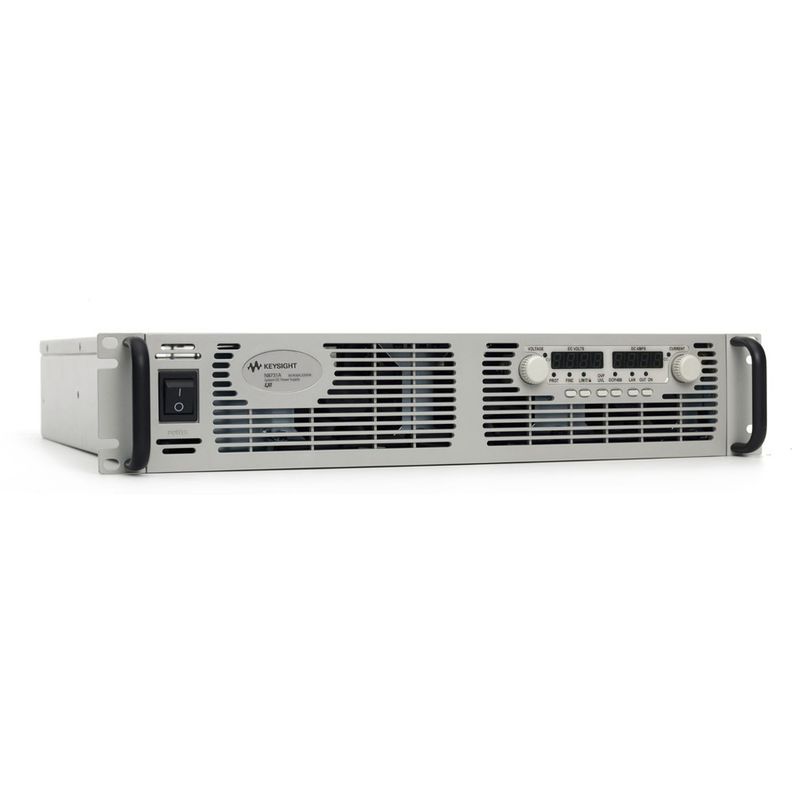

Easy front-panel operation

You can quickly and easily operate the power supply with its rotary knobs and buttons. Using the front-panel controls, you can make coarse or fine adjustments of output voltage and current, protection settings, and set power-on states (last setting memory or factory default setting). The output voltage and current are displayed simultaneously, and LED indicators show power supply status and operating modes. You can lock the front panel controls to protect against accidental power-supply parameter changes.

Remote access and control

The built-in Web server provides remote access and control of the instrument via a standard browser such as Microsoft Internet Explorer or Mozilla Firefox. This control goes above and beyond the LXI specification, giving users the ability to monitor and control the instrument from anywhere. Using the Web browser, you can set up, monitor and operate it remotely.

Small, high-density package saves you rack space

The N8700 provides high power density in a small space-saving 2 U-high, 19-inch-wide package. Its air vents are in the front, side and rear (not on the top or bottom), so you can stack other instruments directly above or below it to save valuable rack space.

About the N8700 Series System DC Power Supplies - N8731A-42A (3.3 kW) And N8754A-62A (5 kW)

The Keysight Technologies, Inc. N8700 series system DC power supplies give you just the right performance - at just the right price - in a compact (2 U) package. This family of affordable 3300 W and 5000 W single-output programmable DC power supplies consists of 21 models for simple DC power applications.

Should you need greater output power, the N8700 series power supplies give you the flexibility to connect in parallel up to four identical units (same model number) for greater output current or connect two identical units (same model number) in series for greater output voltage (see output terminal isolation information).

• N8731A - 8 V, 400 A, 3200 W, 3.3 kW
• N8732A - 10 V, 330 A, 3300 W, 3.3 kW
• N8733A - 15 V, 220 A, 3300 W, 3.3 kW
• N8734A - 20 V, 165 A, 3300 W, 3.3 kW
• N8735A - 30 V, 110 A, 3300 W, 3.3 kW
• N8736A - 40 V, 85 A, 3400 W, 3.3 kW
• N8737A - 60 V, 55 A, 3300 W, 3.3 kW
• N8738A - 80 V, 42 A, 3360 W, 3.3 kW
• N8739A - 100 V, 33 A, 3300 W, 3.3 kW
• N8740A - 150 V, 22 A, 3300 W, 3.3 kW
• N8741A - 300 V, 11 A, 3300 W, 3.3 kW
• N8742A - 600 V, 5.5 A, 3300 W, 3.3 kW
• N8754A - 20 V, 250 A, 5000 W, 5 kW
• N8755A - 30 V, 170 A, 5100 W, 5 kW
• N8756A - 40 V, 125 A, 5000 W, 5 kW
• N8757A - 60 V, 85 A, 5100 W, 5 kW
• N8758A - 80 V, 65 A, 5200 W, 5 kW
• N8759A - 100 V, 50 A, 5000 W, 5 kW
• N8760A - 150 V, 34 A, 5100 W, 5 kW
• N8761A - 300 V, 17 A, 5100 W, 5 kW
• N8762A - 600 V, 8.5 A, 5100 W, 5 kW

Specifications & Attributes for Keysight (Agilent) N8731A DC Power Supply.

List of Options of Keysight (Agilent) N8731A DC Power Supply.
