Portable Keysight Agilent N9953B FieldFox Handheld Microwave Analyzer 54 GHz

Name: Portable Keysight Agilent N9953B FieldFox Handheld Microwave Analyzer 54 GHz
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: N9953B
Availability: InStock

Brand Name:	Keysight
Model Number:	N9953B
MOQ:	1 set

Detail Information

Product Description

Detail Information

Place of Origin:

Malaysia

Certification:

CNAS

Frequency:

54 GHz

Condition:

New

Highlight:

Portable FieldFox Handheld Microwave Analyzer

N9953B FieldFox Handheld Microwave Analyzer

54 GHz FieldFox Handheld Microwave Analyzer

Product Description

Portable Keysight Agilent N9953B FieldFox Handheld Microwave Analyzer 54 GHz

Description of Keysight (Agilent) N9953B

FieldFox Handheld Analyzers 4/6.5/9, 10/14/18/26.5/32/44/50/54 GHz

Models N9912C N9913B/C N9914B/C N9915B/C N9916B N9917B N9918B N9950B N9951B N9952B N9953B N9933B/C N9934B/C N9935B/C N9936B N9937B N9938B N9960B N9961B N9962B N9963B

Introduction:

The Keysight FieldFox handheld analyzers can withstand your toughest working conditions with a ruggedized yet light weight and portable battery powered design for making measurements for RF devices like cables, antennas, filters, amplifiers, and signal/spectrum analysis. Create your specialized handheld analyzer solution by selecting FieldFox options and features to address cable and antenna test (CAT) spectrum analysis (SA) or vector network analysis (VNA) real time spectrum analyzer and over the air digital demodulation analysis required for your application. The FieldFox analyzers are always ready to make RF measurements, ensuring every operating mode is flexible enough to meet the needs of novices and experts alike. The newly introduced C-Series analyzer, N9912C in particular, makes the FieldFox a truly software defined instrument.

Highlights

Never Sacrifice Capability or Portability

Keysight's FieldFox portable analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the software-enabled FieldFox configuration that best meets your needs.

Base model includes a cable and antenna tester (CAT)
Add software-defined measurement functions according to your needs.
Capture elusive signals with 120 MHz gap-free, real-time bandwidth.
Measure all four S-parameters simultaneously.

Make accurate spectrum analyzer measurements without warmup.
Perform over-the-air measurements for 5G NR and LTE.
Use GPS/GNSS for geolocation and timestamping.
Carry one lightweight unit at 3.4 kg (7.4 lb).

Why choose FieldFox?

• A truly software-defined analyzer, the newly introduced N9912C RF analyzer in particular, offers the maximum flexibility and the least initial investment to meet rapidly changing market requirements

• Ideal 5G deployment and field-testing tool with 120 MHz real-time bandwidth and over-the-air (OTA) measurements

• Ability for 5G, satellite and radar operators to make true RF coverage measurements, up to 54 GHz and beyond, and beamforming verification with phased array antenna support

• Simplified field signal monitoring with wideband capture and recording of fully corrected IQ data

• Highly efficient radar and EW systems diagnostics with spectrum analysis, full 2-port VNA, power meter, pulse and noise figure measurements and results that correlate with high-performance bench top instruments

• Durable handheld analyzers that can withstand your toughest working conditions

Cable and antenna analyzer (CAT)

Fifty to sixty percent of microwave-link equipment issues are related to cables, antennas, and connectors. Degraded feeder lines cause poor coverage, link failures, and reduced sensitivity in the receive path. To maintain microwave link quality, it is critical to keep cable and antenna systems in good working condition. FieldFox is uniquely qualified to provide all the necessary measurements to troubleshoot and maintain these systems.

Insertion loss and cable loss

Insertion loss or cable loss characterizes the loss of a jumper cable, feeder cable, diplexer, or gain of a tower-mounted amplifier (TMA). With FieldFox, you can measure both the 1-port cable loss and 2-port insertion loss. Also, FieldFox’s extended range transmission analysis (ERTA) option, is useful for measuring long, lossy in-situ cables.

Return loss/VSWR

Return loss (RL) or VSWR is the single most important parameter used to measure and verify a cable and antenna system. This measurement reflects the power transfer efficiency of a given system.

Distance-to-fault (DTF) and time-domain reflectometry (TDR)

DTF helps you determine the location and nature of discontinuities in feeder lines. For example, short, open, or water ingress. With FieldFox, you can make RL and DTF measurements at the same time. This helps you correlate overall system degradation with specific faults in the cable and antenna system. The built-in cable editor lets you edit existing cable types onsite and save them as new cable types with user-defined names.

Measure both DTF and TDR in single sweep

FieldFox’s TDR complements RL and DTF measurements. TDR measures impedance changes along the cable and helps identify specific faults, RL exposes mismatch issues, and DTF indicates faults and poor connections. FieldFox is the only handheld instrument that can measure both DTF and TDR in a single sweep.

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below.

Portable Keysight Agilent N9953B FieldFox Handheld Microwave Analyzer 54 GHz 0

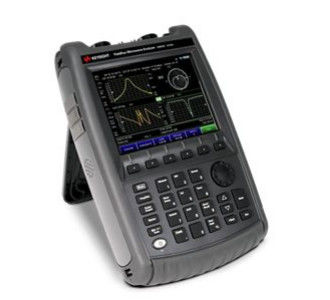

Portable Keysight Agilent N9953B FieldFox Handheld Microwave Analyzer 54 GHz 1

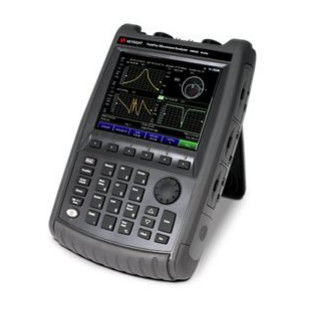

Portable Keysight Agilent N9953B FieldFox Handheld Microwave Analyzer 54 GHz 2

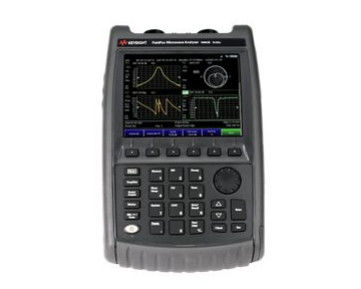

Portable Keysight Agilent N9953B FieldFox Handheld Microwave Analyzer 54 GHz 3
