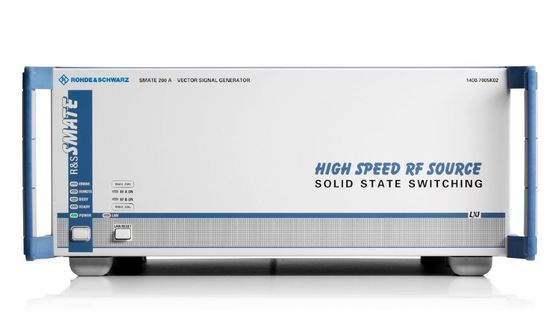

Rohde and Schwarz SMATE200A Vector Signal Generator 100kHz to 3 / 6 GHz
Description of Rohde and Schwarz SMATE200A Vector Signal Generator
Based on the successful Rohde Schwarz SMU200A platform, the SMATE200A is specifically designed for production environments. As such, the display and front panel user interface have been removed, the connectors moved to the rear, and performance has been optimized for fastest setting times to improve factory throughput.
| Form Factor |
|---|
| Benchtop |
| Plug-In ( /B13 ) |
| Rackmount ( /Z20 ) |
| Application Software |
|---|
| 1xEV-DO ( /K47 ) |
| Bluetooth ( /K5 /K60 ) |
| cdma2000 ( /K46 ) |
| DVB ( /K52 ) |
| EDGE ( /K40 /K41 ) |
| GPS ( /K44 ) |
| GSM ( /K40 ) |
| HSDPA ( /K43 ) |
| HSUPA ( /K45 ) |
| LTE ( /K55 ) |
| T-DMB ( /K53 ) |
| TD-SCDMA ( /K50 ) |
| TETRA ( /K8 ) |
| Frequency |
|---|
| 2.5 GHz ( /B33 ) |
| 100 KHz - 3 GHz ( /SMATEB103 /SMATEB203 ) |
| 6 GHz |
| 100 KHz - 6 GHz ( /SMATEB106 /SMATEB206 ) |
| Modulation |
|---|
| FM ( /B22 /K57 /SMU-B20 ) |
| Phase ( /B22 ) |
| Pulse ( /K6 ) |
| Type |
|---|
| Digital ( /K40 /K41 /K42 /K44 /K46 /K47 /K48 /K49 /K50 /K52 /K53 /K55 /K59 /K60 ) |
| RF ( /SMATEB206 ) |
List of Options Schwarz SMATE200A Vector Signal Generator
| 200A-C5 | Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| 200A-R3 | Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair |
| 200A-R5 | Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair |
| B10 | Baseband generator with dig. modulation (real time) and ARB (64 M samples) SMATE-B13 required (factory-fitted) |
| B103 | Frequency range 100 kHz - 3 GHz for 1st RF path (factory-fitted) |
| B106 | Frequency range 100 kHz - 6 GHz for 1st RF path (factory-fitted) |
| B11 | Baseband generator with dig. mod. (realtime) and ARB (16MSamples) SMATE-B13 required (factory fitted only) |
| B13 | Baseband main module (factory-fitted) |
| B16 | Differential I/Q output (SMATE-B13 required) |
| B203 | Frequency range 100 kHz - 3 GHz for 2nd RF path (factory-fitted) |
| B206 | Frequency range 100 kHz - 6 GHz for 2nd RF path (factory-fitted) |
| B22 | FM/PHIM modulator and enhanced phase noise performance SMATE-B10X required (factory-fitted) |
| B31 | High power output for 1st RF path (factory fitted) |
| B33 | Enhanced output power up to 2.5GHz for 1st RF path (SMATE-B103 required,factory fit only) |
| B36 | High power output for 2nd RF path (factory fitted) |
| B9 | Basebandgenerator with dig. modulation (real time) and ARB (128 M samples) (factory fitted, SMATE-B13 required) |
| B90 | Phase Coherence (factory fitted |
| C5 | Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 1 additional depot calibrations |
| DCV-2 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| K40 | Digital standard GSM/EDGE SMATE-B9/B10/B11 required |
| K41 | Digital standard EDGE evolution (SMATE-K40 required) |
| K42 | Digital standard 3GPP FDD SMATE-B9/B10/B11 required |
| K43 | 3GPP FDD enhanced MS/BS tests, incl. HSDPA SMATE-K42 required |
| K44 | Digital standard GPS SMATE-B9/B10/B11 required |
| K45 | 3GPP FDD HSUPA; (SMATE-B9/B10/B11 and K42 required) |
| K46 | Digital standard CDMA2000 incl. 1xEV-DV SMATE-B9/B10/B11 required |
| K47 | Digital Standard 1XEV-DO REV.A SMATE-B9/10/11 required |
| K48 | Digital standard IEEE 802.11 (a/b/g) SMATE-B9/B10/B11 required |
| K49 | Digital standard IEEE 802.16-2004 SMATE-B9/B10/B11 required |
| K5 | Dig. Std. Bluetooth external PC software SMATE-B10/B11 required |
| K50 | Digital standard TD-SCDMA. (SMATE-B9/B10/B11 required) |
| K51 | TD-SCDMA enhanced MS/BS tests (SMATE-B9/B10/B11 and K50 required) |
| K52 | Digital standard DVB-H / DVB-T (SMATE-B9/B10/B11 required) |
| K53 | Digital Standard DAB/T-DMB (SMATE-B9/B10/B11 required) |
| K54 | Option:Digital Standard IEEE 802.11N SMATE-B9/10/11 required |
| K55 | Digital Standard LTE/EUTRA; SMATE-B9/10/11 required |
| K56 | Option:Digital Standard XM Radio SMATE-B9/10/11 requiered |
| K57 | FM stereo modulation (SMATE-B9/B10/B11 required) |
| K59 | Digital standard HSPA+ (SMATE-B9/B10/B11 and SMATE-K43/K45 required) |
| K6 | Pulse sequencer; external PC software (SMATE-B9/B10/B11 required) |
| K60 | Digital standard Bluetooth Enhanced Data Rate (SMATE-B9/B10/B11 required) |
| K61 | Multicarrier CW signal generation SMATE-B9/B10/B11 required |
| K62 | Additive white gaussian noise SMATE-B13 required |
| K68 | Digital standard TETRA release 2 |
| K69 | LTE Closed-Loop BS Test HARQ Feedback, Timing Adjustment (SMATE-K55 required) |
| K8 | TETRA software for SMATE200A (SMATE-B9/B10/B11 required) |
| R3 | Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair - 1st year of repair coverage is provided by the 12-month new product warranty |
| R5 | Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair - 1st year of repair coverage is provided by the 12-month new product warranty. |
| SMATEB103 | Frequency range 100 kHz - 3 GHz for 1st RF path (factory-fitted) |
| SMATEB106 | Frequency range 100 kHz - 6 GHz for 1st RF path (factory-fitted) |
| SMATEB203 | Frequency range 100 kHz - 3 GHz for 2nd RF path (factory-fitted) |
| SMATEB206 | Frequency range 100 kHz - 6 GHz for 2nd RF path (factory-fitted) |
| SMU-B20 | FM/PHIM modulator (SMU-B10X(factory-fitted) required) |
| Z10 | Spare Compact Flash Card (SMA-B80 required) |
| Z20 | Option:Assembled Rack Mount Kit |
| ZZA-411 | 19" adapter, 4 HU, 1/1 for BW2000 cabinets |
Our service:
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
Video
|
|
| Brand Name: | Rohde & Schwarz |
| Model Number: | SMATE200A |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Payment Terms: | Western Union, MoneyGram, T/T |

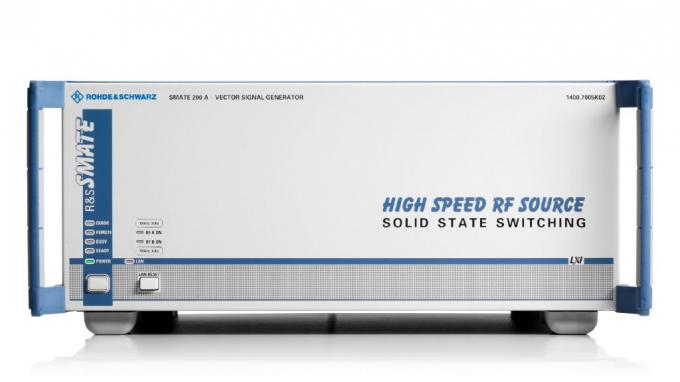

Rohde and Schwarz SMATE200A Vector Signal Generator 100kHz to 3 / 6 GHz
