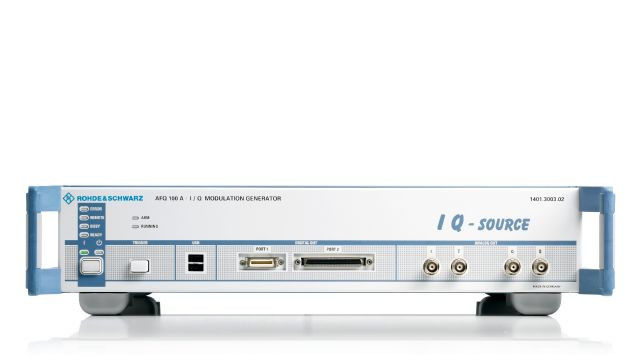

Rohde and Schwarz AFQ100A I/Q Modulation Generator AFQ100A
Description of R&S AFQ100A I/Q Modulation Generator
Digital communications systems are rapidly evolving today, calling for test equipment that can meet the new challenges they present. An important component of such test equipment is a flexible baseband source that allows development and production tests to be performed on state-of-theart receivers for a variety of standards. A self-contained baseband source must fulfill a wide range of signal requirements. Plus, it needs variable digital and analog outputs in order to directly operate the DUT. Used as a modulation source for vector signal generators, the R&S® AFQ100A provides I/Q signals that offer all the sophistication of modern communications standards for generating the required RF signal. Featuring a maximum clock rate of 300 MHz and a waveform memory of up to 1 Gsample, the new R&S® AFQ100A generator provides unprecedented functionality and offers precisely the flexibility that is required. It allows long sequences to be generated for bit error ratio measurements; moreover, its high clock rate provides the necessary bandwidth for supporting future broadband communications systems. Especially in the case of very broadband applications, modules such as I/Q modulators produce a nonlinear frequency response. To compensate for this effect, the R&S® AFQ100A is equipped with an equalizer that linearizes the entire frequency response in realtime. The R&S® AFQ100A combines flexibility with outstanding signal quality. Its spurious suppression, for example, is first-rate, and its frequency response extremely linear. All these basic features combined with a host of other functions make the R&S® AFQ100A a versatile baseband generator that can easily be adapted to changes.
| Form Factor |
|---|
| Benchtop |
| Plug-In ( /EX-IQ-BOX ) |
| Application Software |
|---|
| 1xEV-DO ( /K247 ) |
| Bluetooth ( /K260 ) |
| cdma2000 ( /K246 ) |
| DVB ( /K252 ) |
| EDGE ( /K240 ) |
| GPS ( /K244 ) |
| GSM ( /K240 ) |
| HSDPA ( /K243 ) |
| HSUPA ( /K245 ) |
| LTE ( /K255 ) |
| TD-SCDMA ( /K250 /K251 ) |
| Frequency |
|---|
| 300 MHz |
| Modulation |
|---|
| Pulse ( /K6 ) |
| Type |
|---|
| Analog |
| Digital |
| RF |
List of Options R&S AFQ100A I/Q Modulation Generator
| 0A-C5 | Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| 0A-R3 | Three years of depot repair coverage, including re-calibration if necessary to complete the repair. |
| 0A-R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. |
| A-DKD | ACCREDITED CALIBRATION DKD INCL. CALIBRATION RESULTS |
| B10 | Waveform memory 256 Msamples, only for AFQ100A (factory fitted) |
| B11 | Waveform memory 1 Gsamples (factory fitted) |
| B12 | Waveform memory 512 MSamples only for the AFQ100B (factory fitted) |
| B18 | Digital IQ outputs parallel and serial, 16 bit |
| C5 | Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s). |
| DCV-2 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| EX-IQ-BOX | Digital I/O adapter module for AFQ, AMU, FMU, FSG, FSQ, SMJ, SMU (AFQ-B18, AMU-B17, AMU-B18, FSQ-B17, |
| K240 | Digital standard GSM/EDGE. WinIQSIM 2 required |
| K241 | Digital standard EGDE Evolution (AFQ-K240 and external PC software WinIQSIM2 required) |
| K242 | Digital standard 3GPP FDD. WinIQSIM 2 required |
| K243 | 3GPP FDD enhanced MS/BS tests incl. HSDPA. AFQ-K242 and WinIQSIM 2 required |
| K244 | Digital standard GPS. (1 satellite supported, WinIQSIM 2 required) |
| K245 | Digital standard HSUPA. AFQ-K242 and WinIQSIM 2 required |
| K246 | Digital standard CDMA2000 incl. 1xEV-DV. WinIQSIM 2 required |
| K247 | Digital Standard 1xEV-DO Rev.A (WinIQSIM 2 required) |
| K248 | Digital standard IEEE 802.11 (a/b/g). WinIQSIM 2 required |
| K249 | Digital standard IEEE 802.16. WinIQSIM 2 required |
| K250 | Digital standard TD-SCDMA. WinIQSIM 2 required |
| K251 | Digital standard TD-SCDMA enhanced features. WinIQSIM 2 required |
| K252 | Digital Standar DVB-H. WinIQSIM 2 required |
| K254 | Digital Standard IEEE 802.11n (WinIQSIM 2 required) |
| K255 | Digital Standard LTE/EUTRA. WinIQSIM 2 required |
| K256 | Playback of XM Radio waveforms (license and waveforms from XM Radio required, |
| K259 | Digital standard HSPA+ (AFQ-K243/K245 and external PC software WinIQSIM2 required) |
| K260 | Digital standard Bluetooth Enhanced Data Rate (AFQ-B10/B11/B12 and ext. PC software |
| K261 | Multicarrier CW signal generation WinIQSIM 2 required |
| K262 | Additive white gaussian noise. WinIQSIM 2 required |
| K352 | HD Radio test waveforms (Ibiquity license for customer required, AFQ-B10/B11/B12 required) |
| K6 | Pulse Sequencer; external PC software |
| K80 | Bit error rate tester |
| R3 | Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| R5 | Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| SPL | SPECIAL UPGRADE FROM B10 TO B11 |
Our service:
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
