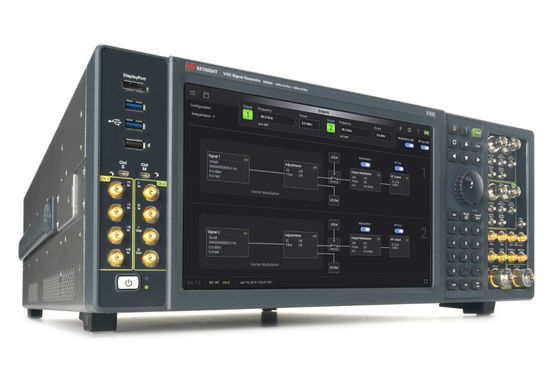

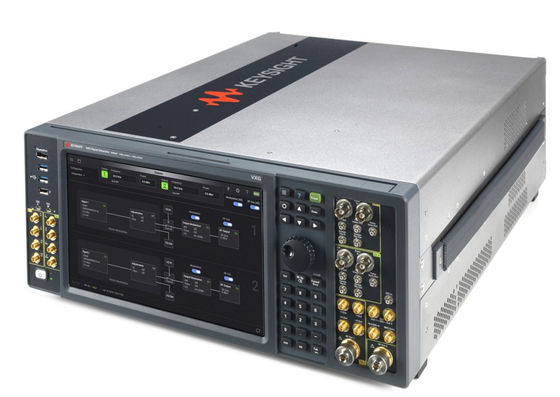

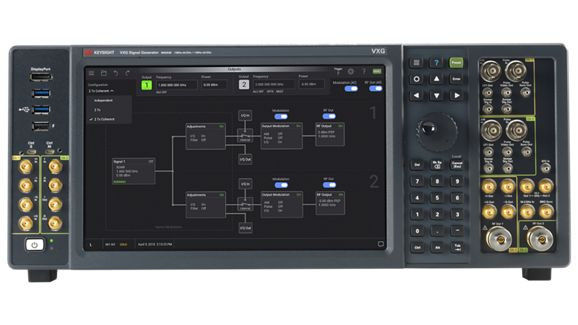

Keysight Agilent M9384B VXG Microwave Signal Generator up to 44GHz

Brand Name: Keysight (Agilent)
Model Number: M9384B
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Malaysia
Product Name:
PSG Vector Signal Generator
Frequency:
Up To 44 GHz
Form Factor::
Benchtop
Maximum Modulation Bandwidth:
2 GHz
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Supply Ability:
in stock
Product Description

Keysight Agilent M9384B VXG Microwave Signal Generator up to 44 GHz
Description of Keysight Agilent M9384B

The M9384B VXG is the industry's first dual-channel microwave signal generators capable of up to 44 GHz signals.



  • Wide RF bandwidth (2 GHz)
  • PathWave Signal Generation software supports application-specific and custom signal creation
  • High output power to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing
  • Phase coherent local oscillator (LO) and baseband synchronization for multi-user or beamforming MIMO OTA testing
  • 3GPP 5G NR standard-compliant signals with channel coding and multi-antenna port support



Overview and Features of M9384B VXG Microwave Signal Generator

  • Bandwidth Options: 500MHz/1 GHz/2 GHz
  • Baseband Generator Mode: Waveform Playback
  • Form Factor: Benchtop
  • Frequency: 44 GHz
  • Frequency Options: 14 GHz/ 20 GHz/ 31.8 GHz/44 GHz
  • Frequency Switching (Typical): 28 ms (meas)
  • Harmonics @1 GHz: -46 dBc
  • Maximum Frequency: 44 GHz
  • Maximum Modulation Bandwidth: 2 GHz
  • Maximum Output Power: 20 dBm
  • Non-Harmonics @1 GHz: -50 dBc
  • Output Power @1 GHz: +20 dBm
  • Performance Level:   ◆◆◆◆◆◇
  • Phase Noise @1 GHz (10 kHz offset): -137 dBc/Hz
  • Phase Noise @1 GHz (20 kHz offset): -137 dBc/Hz (10 kHz offset)
  • Sweep Mode: n/a
  • Type: Vector
  • Waveform Playback Memory:1024 MSa





List of option of M9384B









M9384B-001 Add channel 1
M9384B-D21 RF bandwidth, 2 GHz with 256 MSa memory for frequency options F32 and F44
M9384B-D06 RF bandwidth, 500 MHz with 256 MSa memory for frequency options F32 and F44
M9384B-D11 RF bandwidth, 1 GHz with 256 MSa memory for frequency options F32 and F44
M9384B-D05 RF bandwidth, 500 MHz with 256 MSa memory for frequency options F14 and F20
M9384B-D10 RF bandwidth, 1 GHz with 256 MSa memory for frequency options F14 and F20
M9384B-D20 RF bandwidth, 2 GHz with 256 MSa memory for frequency options F14 and F20
M9384B-D2E RF bandwidth, 2 GHz, 256 MSa memory for frequency options F32 and F44, limited
M9384B-F44 Frequency range, 1 MHz to 44 GHz
M9384B-F32 Frequency range, 1 MHz to 31.8 GHz
M9384B-F14 Frequency range, 1 MHz to 14 GHz
M9384B-F20 Frequency range, 1 MHz to 20 GHz
M9384B-PMR Pulse modulation
M9384B-PME Limited Pulse Modulation
M9384B-320 Pulse Train Generator (SCPI Only)
M9384B-1EB High output power from 20 GHz to 44 GHz
M9384B-1E1 High Output Power from 20 GHz to 43.5 GHz, limited above 43.5 GHz
M9384B-600 Enhanced high performance reference
M9384B-500 High performance reference
M9384B-PCH Phase coherency for N channels
M9384B-1EH Improved harmonics below 2 GHz
M9384B-1ES Improved Signal to Noise Ratio (for 20 GHz and below)
M9384B-ST6 Enhanced low phase noise
M9384B-ST5 Low phase noise
M9384B-DIQ Differential IQ outputs
M9384B-EXT Wideband differential external IQ inputs
M9384B-M05 Baseband generator memory upgrade to 512 MSa
M9384B-M10 Baseband generator memory upgrade to 1024 MSa
M9384B-403 Calibrated AWGN
M9384B-002 Add channel 2
N7600EMBC Signal Studio for W-CDMA/HSPA+, waveform playback
N7601EMBC 1Signal Studio for cdma2000/1xEV-DO, waveform playback
N7602EMBC Signal Studio for GSM/EDGE/Evo, waveform playback
N7606EMBC Signal Studio for Bluetooth, waveform playback
N7608EMBC Signal Studio Pro for Custom Modulation, waveform playback
N7609EMBC Signal Studio for Global Navigation Satellite System (GNSS), waveform playback
N7610EMBC Signal Studio for IoT, waveform playback
N7611EMBC Signal Studio for broadcast radio, waveform playback
N7612EMBC Signal Studio for TD-SCDMA/HSPA, waveform playback
N7615EMBC Signal Studio for mobile WiMAX, waveform playback
N7617EMBC Signal Studio for WLAN 802.11, waveform playback
N7621EMBC PathWave Signal Generation for multitone and noise power ratio (NPR), Embedded Application
N7623EMBC Signal Studio for digital video, waveform playback
N7624EMBC Signal Studio for LTE/LTE-Advanced/LTE-A Pro FDD, waveform playback
N7625EMBC Signal Studio for LTE/LTE-Advanced TDD, waveform playback
N7631EMBC PathWave signal generation for 5G NR, Embedded application
N7640EMBC Signal Studio for LMR, waveform playback
N7642EMBC PathWave signal generation for IQ based AM, FM, phase modulation
N7653EMBC PathWave automatic channel response correction and S-parameter de-embedding
N7632EMBC PathWave Signal Generation for NR V2X, waveform playback
