Anritsu 68169b synthesized sweep generator, 10 mhz to 40ghz microwave signal generator

Name: Anritsu 68169b synthesized sweep generator, 10 mhz to 40ghz microwave signal generator
Brand: Anritsu
SKU: 68169B
Rating: 4.9 (192 reviews)

Brand Name:	Anritsu
Model Number:	68169B
MOQ:	1
Price:	Negotiation
Delivery Time:	5~8 Working Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Frequency:

10 MHz To 40GHz

Functions:

Tested, In Full Working Conditions

Condition:

Pre-Owned

Calibrated:

Yes

Packaging Details:

Carton

Supply Ability:

In Stock

Highlight:

10 mhz microwave signal generator

Anritsu microwave signal generator

40ghz microwave signal generator

Product Description

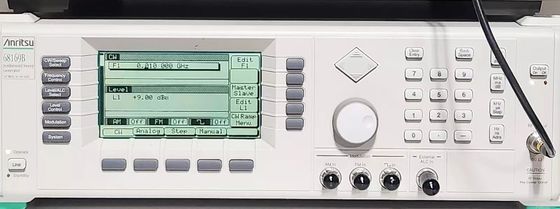

Anritsu 68169B Synthesized Sweep Generator, 10 MHz to 40GHz

The Description of 68169B Synthesized Sweep Generator

The 69000A/68000B Synthesized CW Generators feature 10 MHz to 65 GHz frequency coverage, CW or step sweep, low SSB phase noise and spurious signals, output levels to +17 dBm, and optional 0.1 Hz resolution. The features combine to make these sources ideal for local oscillator replacement applications. To meet requirements that expand over time, economical upgrades are available to any higher performing model. For the most demanding CW requirements, the 69000A and 68000B provide the ultimate in performance.

Features of 68169B Synthesized Sweep Generator

Ultra-low SSB phase noise; - 100 dBc at 10 KHz offset from 10 GHz
0.01 to 65 GHz frequency coverage in a single coaxial output
Waveguide extensions to 110 GHz
+17 dBm maximum power, -125 dBm min. power
Internal AM,FM, phase and pulse modulation
User down-loaded complex modulation
Step, analog , power, alternate, master/slave sweep modes
User level flatness correction

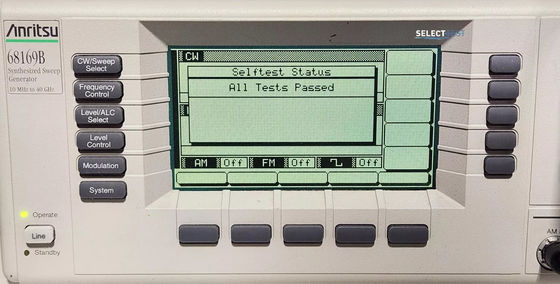

Self-test
Secure mode
Reset
Master/slave operation
360B SS Mode

Specifications & Attributes (Signal Gen/Synthesizers/Sweepers)

Form Factor :Benchtop

Frequency:10 MHz - 40 GHz

Modulation:AM
FM
Phase
Pulse

Type:Analog

Swept measurements

The 69100A/68000B Synthesized Sweep Generators feature 10MHz to 65 GHz analog, slep,and manunl sweep capablity. Output levels to +17 dBm and optional 0,1 Hz resolution are available at prices comparable to CW only sources, To meet requirements that expand over time, econceical upgrades are available to ary higher performing model, Features, performance, and value combine to make the 69100A and 68100B the optimum sources for your network analysis and swept A.T.E source appications

High performance modulation for signal simulation requirements

The 69200A/68200B Synthesized Signal Generators provide AM and FM vin external modulating signals or interral arbitrary wave form generators, The internal ganerators offer 7 modulating wave forms,including Gaussian noise, as well as user-defined arbitrary waveforms. Pulse modulation paramelers can be set externally or by the internal pulse generator, Doublet, tripiet, or quadruplet pulses make RADAR blind spot besting easy, Simultaneous synchronized modulations let you set complex signal scenarios across the entire 10 MHz to 65 GiHz frequancy rango.

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
