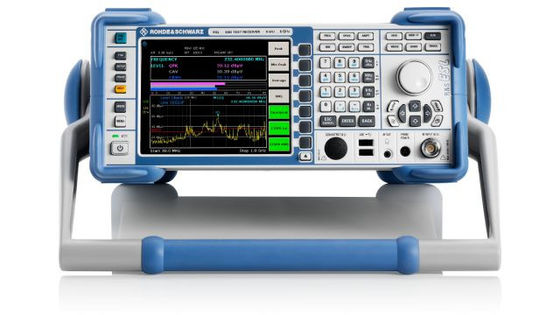

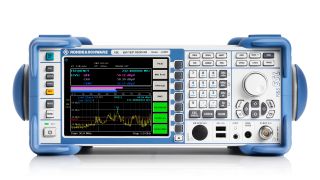

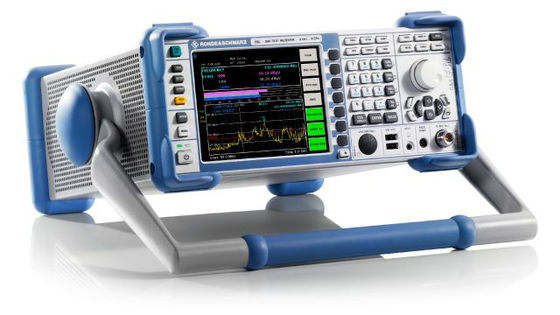

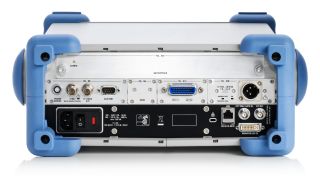

R&S ESL6 EMI Compliance Test Receiver With Touchscreen For EMC Compliance Testing And Spectrum Analysis

R&S ESL6 EMI Compliance Test Receiver With Touchscreen For EMC Compliance Testing And Spectrum Analysis

  • R&S ESL6 EMI Compliance Test Receiver With Touchscreen For EMC Compliance Testing And Spectrum Analysis
  • R&S ESL6 EMI Compliance Test Receiver With Touchscreen For EMC Compliance Testing And Spectrum Analysis
R&S ESL6 EMI Compliance Test Receiver With Touchscreen For EMC Compliance Testing And Spectrum Analysis
Product Details:
Place of Origin: German
Brand Name: Rohde & Schwarz
Model Number: ESL6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Frequency Ranges: 9 KHz To 6 GHz Noise Indication: < -7 DBµV
CONDITION:: Pre-Owned FUNCTIONS:: Tested, In Full Working Conditions
HIGH LIGHT: Midrange EMI Test Receiver For Fast And Reliable Compliance Testing
High Light:

R&S ESL6 EMI Compliance Test Receiver

,

Touchscreen EMI Compliance Test Receiver

,

Spectrum Analysis EMI Compliance Test Receiver

R&S®ESL 6 EMI test receiver for compliance testing



The R&S®ESL EMI test receiver combines two instruments to not only measure EMC interference according to relevant standards, but can also be used as a full-featured spectrum analyzer for a wide range of laboratory applications. The receiver combines excellent RF characteristics and all important functions to quickly and accurately measure and evaluate the EMC of the equipment under test according to commercial standards, making it unique in its class. The R&S®ESL features a wide range of analytical capabilities, fast measurement speeds, and time-saving automated test sequences, making it ideal for any development lab with a small budget that needs to perform EMC certification testing.



Excellent RF characteristics ensure accurate and repeatable measurements



  • 0.5dB amplitude accuracy
  • 1dB compression point: +5dBm
  • Rf input pulse resistance up to 10mWs
  • Display average noise level with preamplifier:<-152 dBm (1 Hz)
  • Resolution bandwidth :10 Hz to 10 MHZ (-3 dB), 200 Hz, 9 kHz, 120 kHz (-6 dB), 1MHz(pulse)

Excellent cost performance

  • ​Two test instruments are integrated into one: an EMI test receiver and a spectrum analyzer
  • Low investment cost
  • Best in class RF characteristics for specific instruments
  • Provides rich measurement and evaluation functions
  • Options are plug-and-play, reducing costs

List of Options



C3 Three years of standard calibration coverage based on the R&S recommended calibration interval - includes test data. ( )
C5 Five years of standard calibration coverage based on the R&S recommended calibration interval - includes test data. ( )
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
FSL-B10 GPIB interface
FSL-B22 RF preamplifier, gain 20 dB (software license)
FSL-B30 DC power supply 12 - 28 V
FSL-B31 NiMH battery pack
FSL-B4 OCXO reference frequency
FSL-B5 Additional interfaces video/IF-output, power meter 28 V - DC for noise source
FSL-B8 Gated sweep function (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
FSL-K30 Application firmware for noise figure and gain measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
FSL-K7 Analogue demodulation AM/FM/PM (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
FSL-K9 Power sensor measurements with NRP (software license)
R3 Three years of depot repair coverage, including standard recalibration and test data if necessary to complete the repair.
R5 Five years of depot repair coverage, including standard recalibration and test data if necessary to complete the repair.



FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below



R&S®ESL EMI 测试接收机

R&S®ESL EMI 测试接收机

R&S®ESL EMI 测试接收机



R&S®ESL EMI 测试接收机
