Portable R&S SMU200A Digital Signal Portable RF Frequency Generator

Portable R&S SMU200A Digital Signal Portable RF Frequency Generator

  • Portable R&S SMU200A Digital Signal Portable RF Frequency Generator
  • Portable R&S SMU200A Digital Signal Portable RF Frequency Generator
  • Portable R&S SMU200A Digital Signal Portable RF Frequency Generator
Portable R&S SMU200A Digital Signal Portable RF Frequency Generator
Product Details:
Place of Origin: Germany
Brand Name: R&S
Model Number: SMU200A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 working days
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Vector Signal Generator Form Factor: Benchtop/Portable/Rackmount
Modulation: FM/IF/Phase/Pulse/Scan Type: Analog/Digital/RF
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

SMU200A RF Frequency Generator

,

RF Frequency Digital Signal Generator

,

Portable RF Frequency Generator

R&S Rohde And Schwarz SMU200A Vector Signal Generator 100 KHz To 6 GHz



Description of R&S SMU200A

The new Vector Signal Generator from Rohde and Schwarz SMU200A is designed to meet all requirements encountered in research and of modern communication systems as well as in their production. The Rohde and Schwarz SMU200A not only combines up to two independent signal generators in one cabinet of only four height units, it also offers unrivalled RF and baseband characteristics. The modern, intuitive concept of the R&S SMU200A ensures fast and easy operation.



Key features of SMU200A Vector Signal Generator

• Two signal generators in one

• Frequency options from 100 kHz to 2.2/3/4/6 GHz for the first RF path

• Optional second RF path up to 2.2 GHz or 3 GHz • Up to two complete baseband paths

• Lossless combination of baseband signals in the digital domain (e.g. for testing multistandard base stations)





List of Options
B10 External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
B102 100 KHz - 2.2 GHz
B103 100 KHz - 3 GHz
B104 100 KHz - 4 GHz
B105 100 KHz - 6 GHz
B11 Baseband Generator with ARB (64 Msample) and Digital Modulation (realtime
B12 Output attenuator for tracking generator
B13 Baseband Main Module
B14 Fading Simulator
B15 Fading Simulator Extension
B16 Differential I/Q Output
B17 Analog Baseband Input
B18 Removable Hard Disk (Flash Card) for R&S® ESU
B19 Second Hard Disk (Flash Card) for R&S® ESU-B18
B20 FM/ Ø Modulation
B202 RF Path B 100 KHz - 2.2 GHz
B203 RF Path B 100 KHz - 3 GHz
B22 FM/ Ø Modulation w/ Enhanced Phase Noise Performance
B24 Internal preamplifier 100kHz to 40GHz; gain 30dB nominal (For EMI Test Receiver R&S® ESU40;
B30 Overvoltage Protection
B31 High Output Power
B32 Overvoltage Protection and High Output Power
B35 RF Path B Overvoltage Protection
B36 RF Path B High Output Power
B37 RF Path B Overvoltage Protection and High Output Power
B4 OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
B9 Baseband Generator with ARB (128 Msample) and Digital Modulation (realtime
C3 Three years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).
C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
DCV-2 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
DKD ESU40 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device)
ESPIK50 Trigger for coverage measurements with EMI Test Receivers R&S ESPI and R&S ESU
ESU26-DKD ESU26 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device)
ESU8-DKD ESU8 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device)
FS-K7 FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
FSP-B10 External generator control for FSP, FSU, FSG, FSQ, ESU, ESCI, ESPI and for retrofit of
FSU-B12 Output attenuator for tracking generator for FSU, FSQ
FSU-B4 OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
FSU-B9 Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
K11 Dig. Std. IS-95
K12 Dig. Std. cdma2000
K40 Digital standard GSM/EDGE, 1160.7609.02
K42 Dig. Std. 3GPP FDD
K43 Dig. Std. 3GPP Enh. BS/MS Test incl. HSDPA
K47 Dig. Std. 1xEV-DO
K53 Time Domain Scan FFT based scan for very fast overview measurements
K55 Dig. Std. E-UTRA
K7 FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
R3 Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
R5 Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.

FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

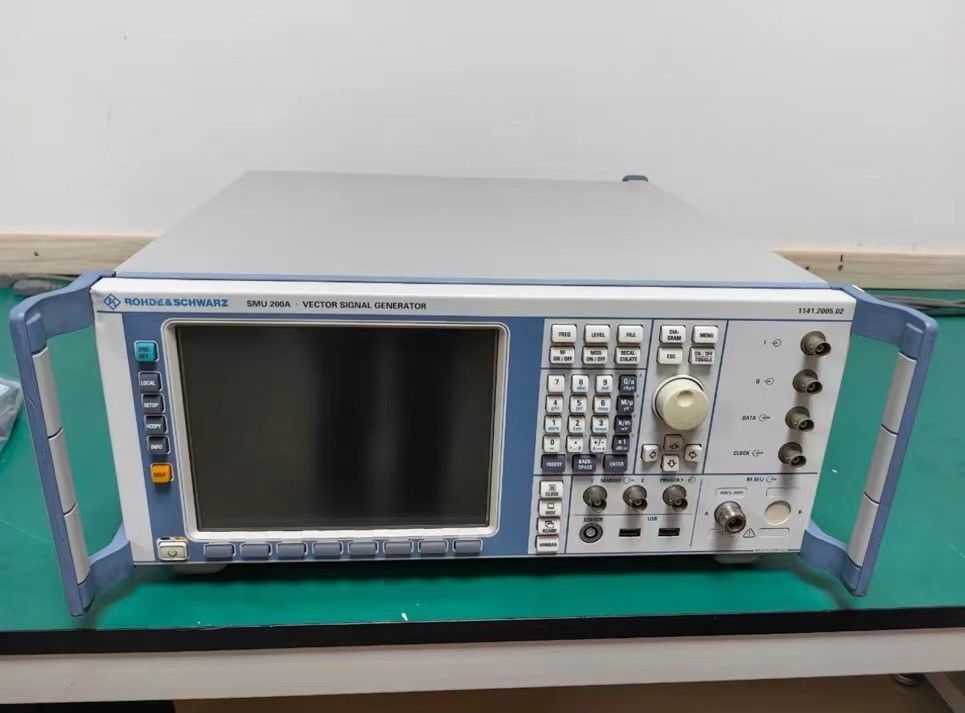

Portable R&S SMU200A Digital Signal Portable RF Frequency Generator 0

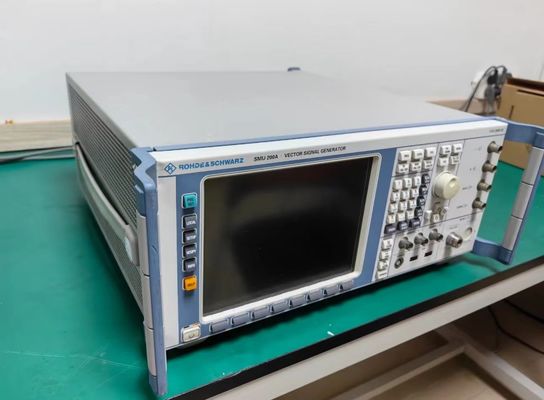

Portable R&S SMU200A Digital Signal Portable RF Frequency Generator 1

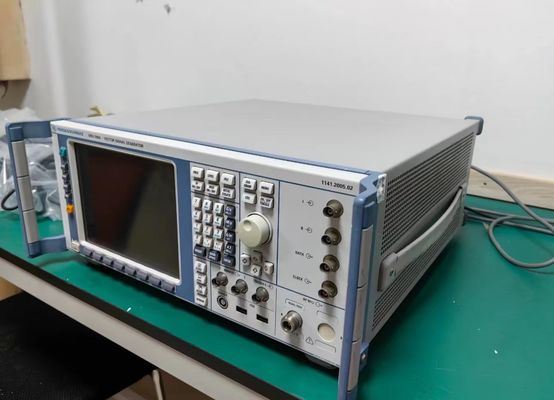

Portable R&S SMU200A Digital Signal Portable RF Frequency Generator 2
