RF Signal Generator
Created with Pixso. Keysight N5183B MXG X-Series Microwave Analog Signal Generator 9kHz To 40 GHz

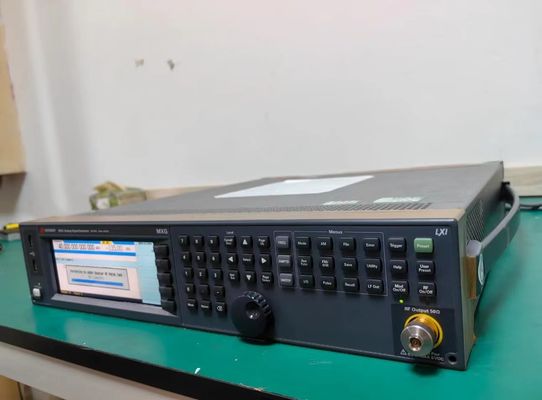

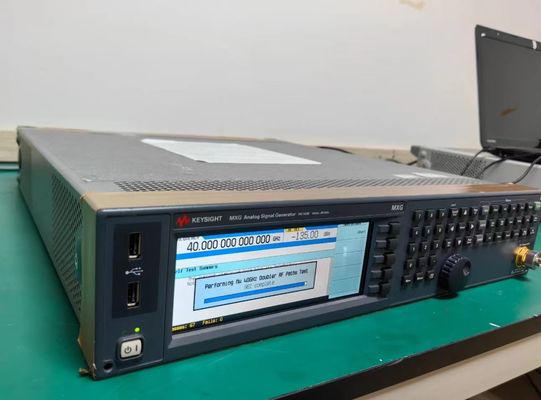

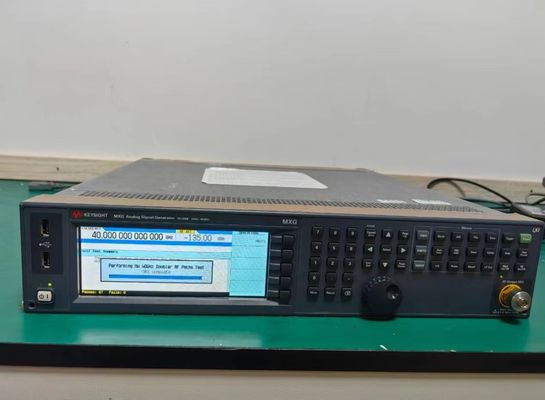

Keysight N5183B MXG X-Series Microwave Analog Signal Generator 9kHz To 40 GHz

Brand Name: Keysight (Agilent)
Model Number: N5183B
MOQ: 1 set
Price: Negotiable
Delivery Time: 1~3 working days
Payment Terms: T/T,Western Union, MoneyGram
Detail Information
Place of Origin:
Malaysia
Product Name:
Keysight Agilent N5183B
Frequency Coverage:
9 KHz To 40
Output Power:
+19 DBm
Type:
Analog,Digital,Microwave,RF ( /1ED /1EM )
Condition:
Full Tested Usable
Harmonics:
-55 DBc
Spurious:
-68 DBc
Switching Speed:
600 µs
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:

9kHz To 40 GHz Analog Signal Generator

,

Microwave Analog Signal Generator

,

Keysight N5183B MXG X-Series

Product Description

Keysight Agilent Usable N5183B MXG X-Series Microwave Analog Signal Generator 9kHz to 40 GHz



Description Of Keysight Agilent Usable N5183B



The Keysight N5183B MXG X-Series Signal Generator is a high-performance RF and microwave signal generator designed for a wide range of applications.

The MXG is the pure and precise alternative to the analog PSG, with advantages in size and speed.

It delivers the performance you need--spectral purity, output power, switching speed and more--to perform module- and system-level testing.

Generate the signals you need with outstanding hardware performance



  • Test radar receiver sensitivity with best-in-class phase noise and spurious performance
  • Shrink your test stand with two rack-unit height
  • Maximize throughput with fast switching speed
  • Compensate for system loss, stimulate remote DUTs, and drive high-power amplifiers while retaining signal integrity
  • Simulate multi-channel composite analog modulation with integrated multifunction generation
  • Create variable RADAR PRI and pulse width with integrated pulse train generator



Maximize resources with low cost of ownership

  • Increase uptime with high mean time between failures (MTBF)
  • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs
  • Standard 3-year calibration cycle and warranty



Highlights

Maximize speed and rack space with the pure and precise MXG



  • Get a fast, compact (2U) alternative to the PSG in the lab, depot or field
  • Address demanding tests of radar modules & systems with near-PSG levels of spectral purity
  • Compensate for system loss & drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics & -68 dBc spurious       20 GHz
  • Reduce calibration time with switching speed 600 µs
  • Simulate narrowband chirps & radar antenna scans with up to five internal function generators that can be used with AM, FM, OM pulse modulation



Main features and specifications of Keysight N5183B MXG X-Series Signal Generator

  • Frequency range: Typically covers from 9 kHz to 3, 6, or 20 GHz, depending on the model, with options for extended frequency ranges up to 67 GHz with external mixing.
  • Output power: Offers high output power levels up to +23 dBm, with excellent level accuracy and stability for reliable signal generation.
  • Phase noise performance: Provides industry-leading phase noise performance for accurate and precise signal generation, even at low power levels and narrow bandwidths.
  • Modulation capabilities: Supports a wide range of modulation types including AM, FM, PM, ASK, FSK, PSK, QAM, and custom modulation, with flexible modulation bandwidths and shaping options.
  • Signal quality: Features low harmonics, spurious emissions, and wideband noise for clean and accurate signal generation.
  • Flexible waveform generation: Allows users to import custom waveforms and create complex modulation schemes using built-in tools or external software for specialized testing requirements.
  • Connectivity: Equipped with various connectivity options including LAN, USB, GPIB, and optional interfaces like IEEE 802.11 WLAN, enabling remote control and integration into automated test systems.
  • User interface: Intuitive front panel with a color display and touch-screen interface for easy operation, along with comprehensive software control options for automated testing, programming, and waveform creation.

Compact and robust design: Designed for both benchtop and rack-mounted use, with a rugged construction for reliability in different environments.



Overall, the Keysight N5183B MXG X-Series Signal Generator offers exceptional performance, flexibility, and ease of use, making it ideal for a wide range of applications including wireless communications, aerospace, defense, and radar testing.



List of Options:





006



Instrument security and removable memory card



010



Step attenuator, 115 dB



1CM010A



Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs



1CN006A



Handle kit 88.1mm H (2U) - two front handles



1CP004A



Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs



1CR012A



Rack Slide Kit, Mounting lengths 279.4-406.4mm



1E1



STEP ATTEN, 115 dB



1EA



High output power



1ED



Type-N (f) RF output connector



1EM



Move all connectors to rear panel



1ER



Flexible reference input (1-50 MHz)



303



Multifunction generator



320



Pulse train generator, fixed perpetual license



513



Frequency range, 9 kHz to 13 GHz



520



Frequency range, 9 kHz to 20 GHz



532



Frequency range, 9 kHz to 31.8 GHz



540



Frequency range, 9 kHz to 40 GHz



A6J



ANSI Z540-1-1994 Calibration



ABJ



Japan- Japanese printed user guide



AMG



Calibration + Uncertainties + Guardbanding (Accredited)



AXT



Hard transit case



CVR



Front Panel Cover



SDO



No internal non-volatile memory/solid state drive



UK6



Commercial calibration certificate with test data



UNT



AM, FM phase modulation



UNW



Narrow pulse modulation



UNY



Low phase noise



UNZ



Fast frequency switching



UW2



Narrow pulse modulation up to 31.8 GHz



UZ2



Fast frequency switching greater than 1.15 ms and +/-0.05 percent of final frequency


Our service:

1.One-stop service from manufacture to shipping.

2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires influent English.
4.Distributor ship is offered for your unique desigh and some our current models.
5.Protection of your sales area, ideas of design and all your private information.



FAQ:

1.Can you ship order to Canada or Australia ?

   Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below.
