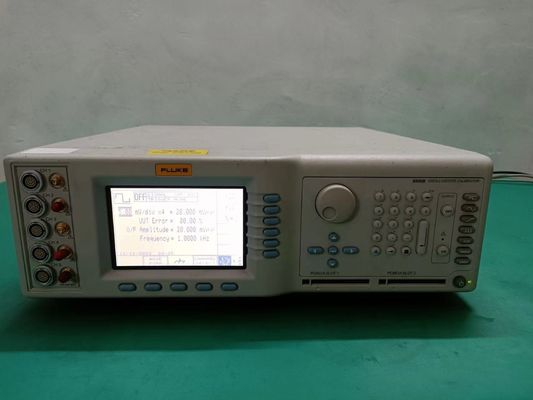

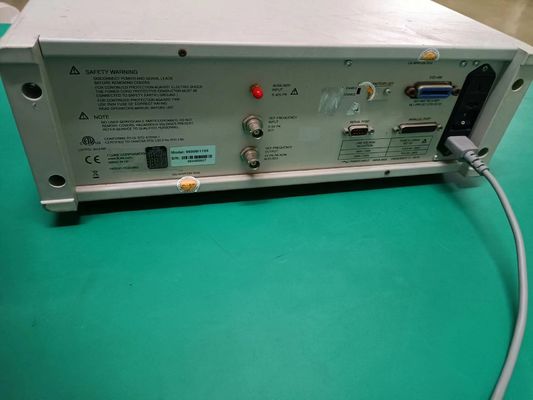

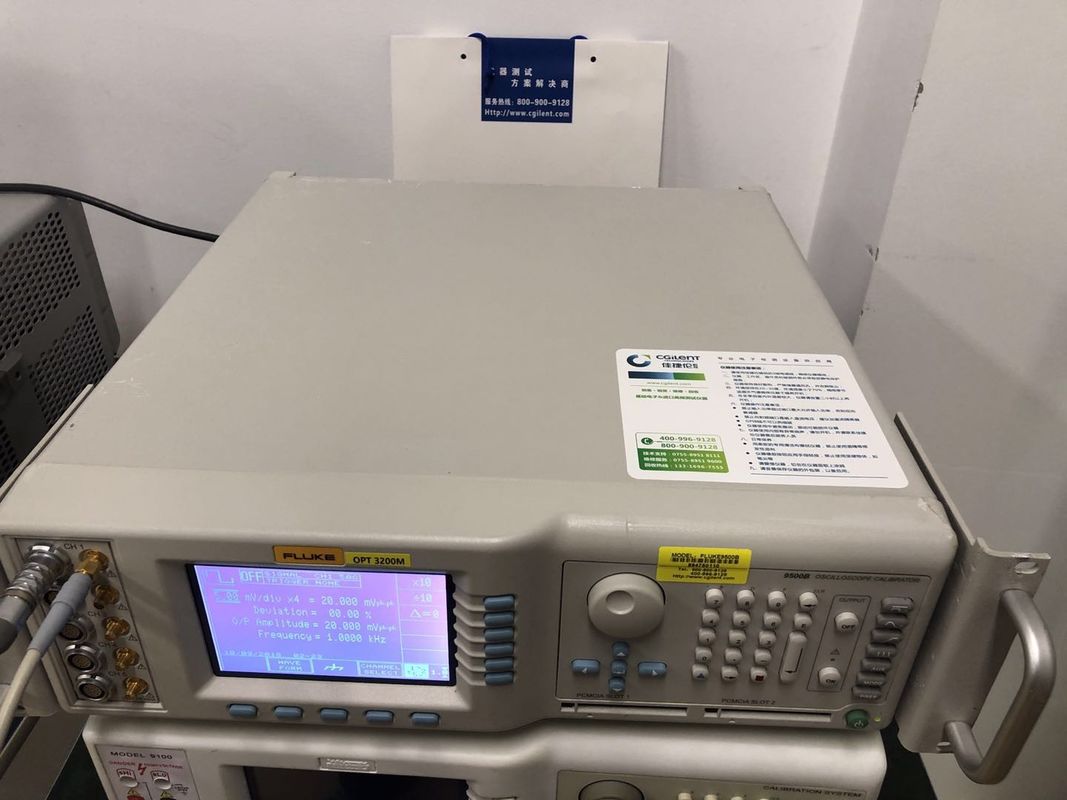

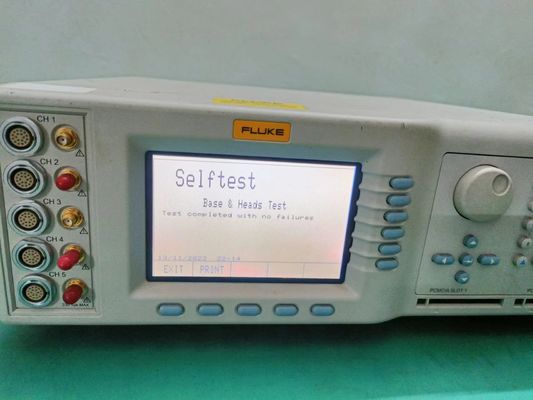

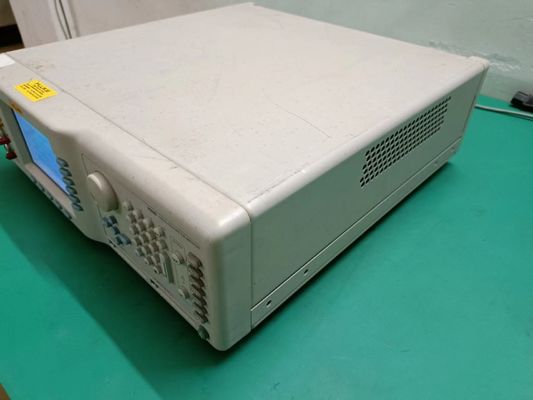

Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator

Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator

  • Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator
  • Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator
  • Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator
  • Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator
  • Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator
Surplus Test Equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator
Product Details:
Place of Origin: USA
Brand Name: Fluke
Certification: CNAS
Model Number: 9500B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Oscilloscope Calibrator Amplitude Signals: Up To 3200MHz
Repair Support: Calibration Only Calibration Support: Contact Us
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

surplus test equipment Oscilloscope Calibrator

,

9500B Oscilloscope Calibrator

,

WAVETEK Fluke 9500B 3200

SELL TO US We buy your surplus test equipment WAVETEK Fluke 9500B 3200 Oscilloscope Calibrator

Meigaolan buys used and second hand Test and Measurement equipment, including:

Spectrum Analysers, Network Analysers, Signal Generators, Oscilloscopes, Calibrators,etc.

We buy used test equipment made by the following manufacturers:

Keysight /Agilent/HP, Rohde & Schwarz, Fluke,Tektronix, Anritsu, Keithley, IFR/ Aeroflex and more.



To sell your surplus test equipment, to free valuable cash and space and we will pay rewards and finder's fee for information that results in transactions including purchase of surplus test equipment due to shop closure, liquidation,etc. Please feel free to write to us anytime, we can cooperate in many ways.



Due to the recent economic downturns many companies have been forced to downsize their facilities. Many repair and maintenance operations and avionics shops who could not sustain losses over this long recession had to close their doors permanently. The equipment owned and used by these facilities is, in most cases, the only asset left for liquidation. In order to maximize the value received for such assets, it would be best to turn to a professional dealer who is specialized in the type of equipment available for sale. This will allow owners of the equipment to negotiate best value for their asset. Meigaolan makes it simple for sellers to offer their test equipment for sale and negotiate the best prices for these equipment. Please provide information, pictures and documents for the equipment you offer for sale, you will receive a fair market value offer from Meigaolan very quickly and can finalize the sale and receive the cash in matter of days.

Description of Fluke 9500B Oscilloscope Calibrator

The 9500B Oscilloscope Calibrator features

Automating oscilloscope calibration is possibly one of the biggest productivity enhancements that can be realised in many calibration labs. Performed manually, this work requires skilled operators to spend a substantial amount of time performing what are essentially repetitive tasks. Semi, or partial automation solutions apparently address this issue and free skilled technicians to perform more valuable tasks. However, in practice, these partial solutions present their own problems.

Over the last decade, the oscilloscope of choice has migrated from a two-channel instrument to a more complex four-channel device. When calibrating these instruments, it is necessary to move the calibrating signal from channel to channel as the procedure progresses. This can be achieved by physically moving cables, though this requires operator intervention. In high performance instruments, this may introduce additional measurement uncertainties as cables and connectors are handled. An alternative is to introduce a switching matrix to route signals, though this may result in problems with signal reflections, poor contacts and path differences that materially impact calibration uncertainties.

Active Heads and full automation

The Fluke Calibration 9500B addresses these issues, and provides true, full automation through the use of its unique Active Heads. With the 9500B, all the signals required to fully calibrate the oscilloscope are generated in detachable heads, remote from the calibrator mainframe. The heads are connected directly to the oscilloscope input without the need for additional cables. All control and switching of waveforms are performed under the control of the mainframe, yet within the head itself - typically only a matter of millimeters away from the oscilloscope input and amplifiers. With each 9500B mainframe able to control up to five heads, all the signals required to calibrate a 4-channel oscilloscope with an external trigger can be supplied, controlled and switched without operator intervention or the need for external switching.

MET/CAL® Plus Calibration Management Software

The final link in the chain of full automation is software. The 9500B Oscilloscope Calibrator can be used with Fluke Calibration’s powerful IEEE-488 (GPIB) based MET/CAL Plus automated calibration management software. While allowing you to automate the calibration process, MET/CAL also documents results, manages your calibration inventory, and allows you to develop new oscilloscope calibration procedures. Running under Microsoft Windows® and supporting multi-user networking, the software implements advanced features such as ISO 9000 compliant traceability, custom certificate and report generation, and high-level procedure programming. The result is higher workload throughput, better calibration consistency, minimization of human error, and less requirement for operator training - in short, higher quality calibration at lower cost.

Gold Support Program

To keep pace with the fast changing oscilloscope market, Fluke Calibration is continuously writing new calibration procedures. For a one-off, low-cost payment (less than it would cost you to have three or four DSO oscilloscope calibration procedures written), you can buy into our MET/SUPPORT Gold Software Support Program which gives you access to every new procedure written by Fluke’s software support team during the next 12 months. On current performance, that’s upwards of 100 new oscilloscope calibration procedures per year. And you won’t have to request updates or wait for delivery; every new procedure we write is available for download from our web site. In addition to the free procedures library, you will receive 60 days priority support to get you up and running with MET/SUPPORT Gold. You also have the option to buy into our MET/SUPPORT Gold program, which offers you various advantages, including the opportunity to download new procedures from our web site or even obtain custom written procedures. If the oscilloscope calibration procedure you require is not available and you need it quickly, we can write it for you at very competitive rates as part of our fast-track procedure writing scheme.

DC Voltage
Amplitude
  ± 1 mV to ± 200V into 1M Ω
  ± 1 mV to ± 5V into 50 Ω
Accuracy
  ± (0.025% + 25 µV)
Ranging
  1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous
Deviation
  ± 11.2%
Squarewave
Amplitude
Range: 40 µV to 200V pk-pk into 1MΩ
  40 µV to 5V pk-pk into 50Ω
Polarity: Positive, negative or symmetrical about ground
Accuracy (10 Hz to 10 kHz): <1 mV ± (1% + 10 µV)
  1 mV-21 mV ± (0.10% + 10 µV)
Ranging: 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous
Deviation: ± 11.2%
Rise/Fall Time
  <100V <150 ns
  >=100V <200 ns
Aberrations
  <2% peak for first 500 ns
Frequency
Range: 10 Hz to 100 kHz
Accuracy: ± 0.25 ppm
Ranging: 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous
Low-Edge Pulse
Amplitude
Range: 5 mV to 3V pk-pk into 50Ω
Accuracy: +50 ps to -150 ps
Ranging: 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous
Rise/Fall Time
  500 ps return to ground
Mk/Sp Ratio
  1:9
Aberrations (into VSWR 1.2:1)
  <± pk in 8Ghz
  <± 1.5% pk in 3Ghz
  (First 10ns)
Frequency
Range: 10 Hz to 2 Mhz
Accuracy: ± 0.25 ppm
Ranging: 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous
High-Edge Pulse
Amplitude
Range: 1mV to 200V pk-pk into 1 MΩ
  1mV to 5V pk-pk into 50Ω
Accuracy: ± 3%
Ranging: 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous
Rise/Fall Time
  <100V <150 ns
  >=100V <200 ns
Mk/Sp Ratio
  1:1
Aberrations
  <2% peak for first 500ns
Frequency
Range: 10 Hz to 100 kHz
Accuracy: ± 0.25 ppm
Ranging: 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous




List of Options
Model Name Description
9500B/600 600 MHz High-Performance Oscilloscope Calibrator Workstation
9500B/1100 1100 MHz High-Performance Oscilloscope Calibrator Workstation
9500B/3200 3.2 GHz High-Performance Oscilloscope Calibrator Workstation
9510 Active Head with 1.1 GHz and 500 ps pulse capability
9530 Active Head with 3.2 GHz and 150 ps/500 ps pulse capability
9550 Active Head with 25 ps pulse capability
9560

Active Head with 6 GHz and 70 ps pulse capability

  • requires 9500B/3200 or upgraded 9500/3200
