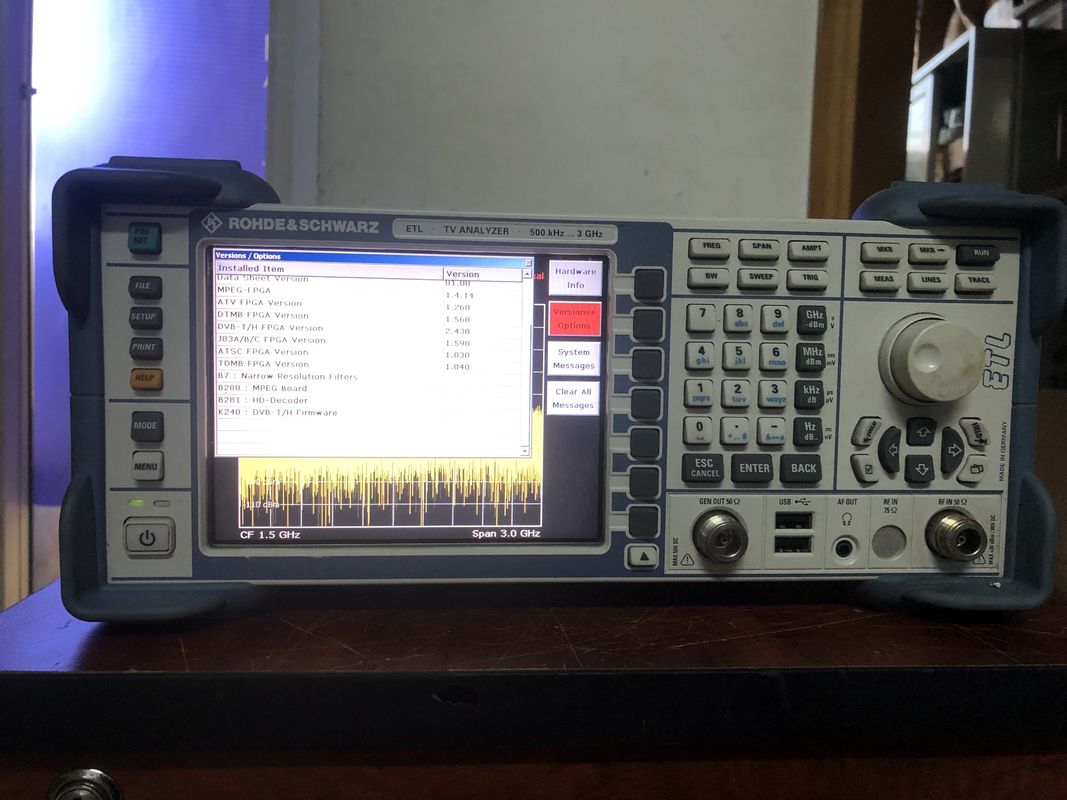

Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test

Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test

  • Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test
  • Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test
  • Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test
  • Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test
  • Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test
Tested Rohde And Schwarz ETL TV Analyzer 500 KHz To 3 GHz With Track TV Test
Product Details:
Brand Name: Rohde & Schwarz
Model Number: ETL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Frequency Range: 500 KHz To 3 GHz Condition: Pre-Owned
Functions: Tested, In Full Working Conditions Warranty: One Month
High Light:

500 KHz To 3 GHz ETL TV Analyzer

,

Track Test ETL TV Analyzer

Rohde And Schwarz ETL TV Analyze 500 KHz To 3 GHz With Track

The Rohde & Schwarz ETL TV Analyzer is the universal reference for the analysis of TV, mobile TV and sound broadcasting signals. Rohde & Schwarz ETL TV Analyzers combine the functionality of a TV and FM (radio) signal analyzer, a video and MPEG TS analyzer and a spectrum analyzer in a single instrument. The R&S ETL also contains generators to create analog video signals, audio signals and MPEG-2 transport streams. The Rohde & Schwarz ETL's innovative instrument concept facilitates the flexible integration of demodulators for analog and digital TV standards as well as sound broadcasting. All of the demodulators work in realtime; fast signal processing allows comprehensive, extremely accurate measurements. Its wide range of functions and flexible configuration make the R&S ETL TV analyzer the universal reference for the analysis of TV signals – for TV and cable network operators, transmitter manufacturers, service technicians and regulatory authorities.





  • Specifications
  • Frequency range from 500 kHz to 3 GHz
  • TV, FM (radio), video, audio, MPEG-2 transport stream and spectrum analysis in a single box
  • FPGA and chip-based realtime demodulators for analog
  • TV, DVB-T, DVB-T2, DVB-H, ATSC/8VSB, ATSC Mobile
  • DTV, ISDB-T(B), J.83/A/C, DVB-C, J.83/B, DTMB, T-DMB/
  • DAB and FM (radio)
  • Baseband outputs
  • Preselection with additional 75 Ω RF input
  • Video signal generator
  • Audio signal generator
  • MPEG-2 transport stream generator/recorder
  • Support of power sensors
  • DC input and rechargeable Li-ion battery
Frequency range FM (radio) 500 kHz to 3 GHz
75 MHz to 110 MHz
Displayed average noise level (DANL) 50 MHz to 3 GHz, preamplifier OFF
500 MHz, preamplifier ON, preselector ON
3 GHz, preamplifier ON, preselector ON
≤ –140 dBm (1 Hz)
typ. –166 dBm (1 Hz)
typ. –161 dBm (1 Hz)
Level Quasi-error-free for digital standards depending on transmission modes
T-DMB/DAB with R&S®ETL-B203 preselector, preamplifier ON
–90 dBm to +10 dBm
–92 dBm
Inherent modulation error ratio (MER) Signal level ≥ –30 dBm, f ≤ 1.3 GHz
DTMB
≥ 40 dB, typ. 46 dB
≥ 34 dB
Video S/N Analog TV mode ≥ 60 dB



  • Features
  • Frequency range from 500 kHz to 3 GHz
  • TV, FM (radio), video, audio, MPEG-2 transport stream and spectrum analysis in a single box
  • FPGA and chip-based realtime demodulators for analog
  • TV, DVB-T, DVB-T2, DVB-H, ATSC/8VSB, ATSC Mobile
  • DTV, ISDB-T(B), J.83/A/C, DVB-C, J.83/B, DTMB, T-DMB/
  • DAB and FM (radio)
  • Baseband outputs
  • Preselection with additional 75 Ω RF input
  • Video signal generator
  • Audio signal generator
  • MPEG-2 transport stream generator/recorder
  • Support of power sensors
  • DC input and rechargeable Li-ion battery



  • Applications
  • Frequency range from 500 kHz to 3 GHz
  • TV, FM (radio), video, audio, MPEG-2 transport stream and spectrum analysis in a single box
  • FPGA and chip-based realtime demodulators for analog
  • TV, DVB-T, DVB-T2, DVB-H, ATSC/8VSB, ATSC Mobile
  • DTV, ISDB-T(B), J.83/A/C, DVB-C, J.83/B, DTMB, T-DMB/
  • DAB and FM (radio)
  • Baseband outputs
  • Preselection with additional 75 Ω RF input
  • Video signal generator
  • Audio signal generator
  • MPEG-2 transport stream generator/recorder
  • Support of power sensors
  • DC input and rechargeable Li-ion battery
Frequency range FM (radio) 500 kHz to 3 GHz
75 MHz to 110 MHz
Displayed average noise level (DANL) 50 MHz to 3 GHz, preamplifier OFF
500 MHz, preamplifier ON, preselector ON
3 GHz, preamplifier ON, preselector ON
≤ –140 dBm (1 Hz)
typ. –166 dBm (1 Hz)
typ. –161 dBm (1 Hz)
Level Quasi-error-free for digital standards depending on transmission modes
T-DMB/DAB with R&S®ETL-B203 preselector, preamplifier ON
–90 dBm to +10 dBm
–92 dBm
Inherent modulation error ratio (MER) Signal level ≥ –30 dBm, f ≤ 1.3 GHz
DTMB
≥ 40 dB, typ. 46 dB
≥ 34 dB
Video S/N Analog TV mode ≥ 60 dB
  • Acceptance testing, maintenance and servicing of TV, mobile TV, DAB and FM transmitters
  • Quality assurance during the production of modulators and TV, DAB and FM transmitters
  • Optimization of TV, mobile TV, DAB and FM transmitter networks



List of Options
ATV-VIDEO Analog TV test patterns additional test signals PAL/NTSC/SECAM ser.no. required
B110 High SNR FM Frontend not with ETL-B210, ETL-B215, ETL-B216, ETL-B300 or ETL-B310
B201 Additional Interfaces Digital TV not with FSL-B5
B203 RF Preselector with additional 75 Ohm RF input (retroffitting by factory)
B209 Harddisk 80 Gbyte (retrofitting by service)
B210 Digitaler demodulator for single carrier
B215 Digital demodulator for DTMBD
B216 Digital demodulator for single carrier and DTMB
B230 DC Power Supply 11 V to 19 V
B235 Li-Ion Battery Pack 10 Ah with battery charger (not with ETL-B280)
B280 MPEG Processing Board (retrofitting by service)
B281 Video and Audio Hardware Decoder Video: SDTV, MPEG-2, H.264 ETL-B280 required
B300 FPGA Extension board not with ETL-B110, ETL-B210, ETL-B215, E and ETL-B310
BCDRIVE Broadcast Drive Test Software for ETL; requires ETL-K208
C3 Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).
C5 Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
DCV Documentation of ETL calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
DV-DVBH DVB-H stream library Ser.no.of basic unit required
DV-H264 H.264 Stream Library SD, HD; MPEG-1 LII, AC-3 Serial number of basic unit required
DV-HDTV HDTV sequences DVB and ATSC, Sr.nr. required DVG: parallel cable required
DV-ISDBT ISDB-T transport stream library Ser.no.of basic unit required
DV-TCM Test Card M sequences DVB and ATSC; Sr.nr. required DVG: parallel cable required
FSL-B10 GPIB interface
FSL-B30 DC power supply 12 - 28 V
FSL-B31 NiMH battery pack
FSL-B4 OCXO reference frequency
FSL-B5 Additional interfaces video/IF-output, power meter 28 V - DC for noise source
FSL-B7 Narrow resolution filters 10 Hz - 300 Hz
FSL-K7 Analogue demodulation AM/FM/PM for FSL and for ZVL with ZVL-K1
FSL-K9 Power sensor measurements with NRP
FSL-K93 Application Firmware for WIMAX# 802.16 OFDM/OFDMA Measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K110 FM(Radio) Firmware ETL-B110 for SNR recommended
K111 FM(Radio) Audio Analysis/Generator ETL-K110 and ETL-B201 mod.03 required
K202 Analog TV Video Analysis
K203 Analog TV Video Generator Multi standard
K208 Measurement Log for digital TV
K210 DVB-C firmware ETL-B210 or ETL-B216 required
K213 J.83/B Firmware ETL-B210 or ETL-B216 required
K220 ATSC/8VSB firmware
K221 ATSC/8VSB SFN Frequency Offset R&S ETL-K220 required
K240 DVB-T/H Firmware for ETL
K241 DVB-T/H SFN frequency offset R&S ETL-K240 required
K250 T-DMB/DAB Firmware for ETL
K251 T-DMB/DAB SFN frequency offset ETL-K250 required.
K260 ISDB-T Firmware
K261 ISDB-T SFN frequency offset R&S ETL-K260 required
K280 MPEG TS Generator/Recorder R&S ETL-B209 and R&S ETL-B280 required
K281 HDTV and Dolby Upgrade ETL-B281 required
K282 MPEG Analysis/Monitoring ETL-B280 required
K283 In-depth analysis ETL-K282 required
K284 Data Broadcast Analysis ETL-K282 required
K285 TS Template monitoring ETL-K282 required
K320 ATSC MDTV, ATSC/8VSB Firmware ETL-B300 or ETL-B310 required
K321 ATSC MDTV, ATSC/8VSB SFN Freq. Offset ETL-K320 or ETL-K322 required
K322 ATSC MDTV Upgrade ETL-K220 and ETL-B300 or ETL-B310 requir
K340 DVB-T2 Firmware ETL-B300 required
R3 Three years of depot repair coverage, including recalibration and test data if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
R5 Five years of depot repair coverage, including recalibration and test data if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
SFU-K222 MediaFLO streams sgnals stress functions ser.no. required
SFU-K224 ISDB-T Transport Streams brazilian ISDB-TB signals (H.264) ser.no. required
SFU-K225 CMMB Transport Streams signals, stress functions ser.no. required
SFU-K226 ATSC and ATSC Mobile DTV Streams video/audio signals, stress functions ser.no. required
