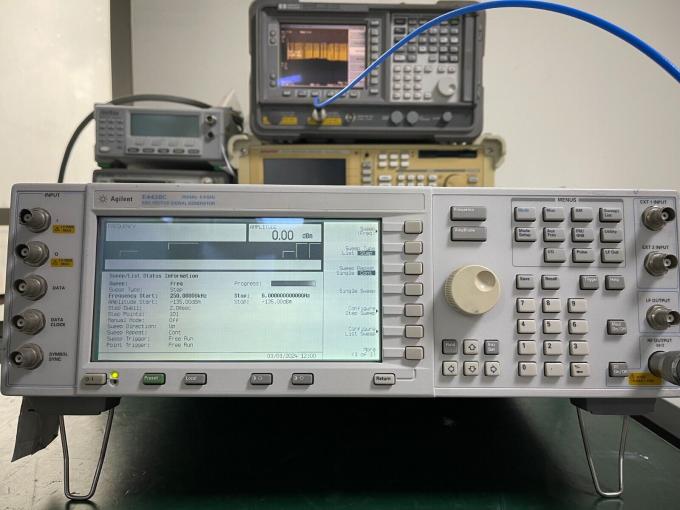

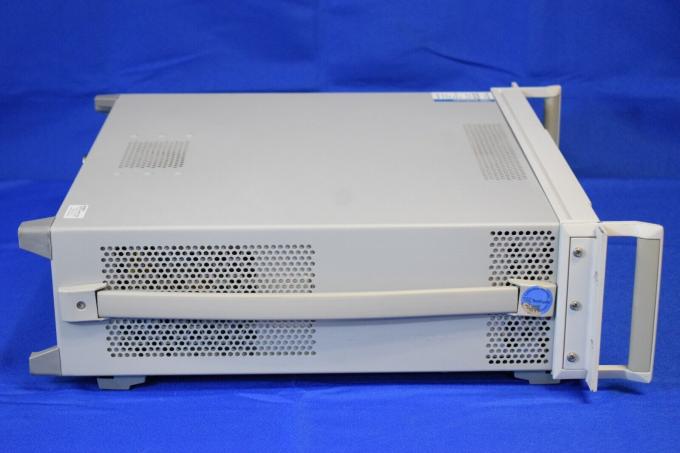

Keysight/Agilent E4438C Portable ESG RF Signal Generator Durable
| Brand Name: | Keysight (Agilent) |
| Model Number: | E4438C |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
Detail Information
Place of Origin:
Malaysia
Product Name:
ESG Vector Signal Generator
Frequency:
250 KHz To 6 GHz
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Type:
Digital/RF ( /H16 )
Supply Ability:
in stock
Highlight:
Keysight E4438C
,Portable ESG RF Signal Generator
,Durable ESG RF Signal Generator
Product Description
Keysight Agilent E4438C ESG Vector Signal Generator Superior Level Accuracy
Description of Keysight Agilent E4438C
- The E4438C ESG Vector Signal Generator combines superior RF performance with sophisticated baseband generation to deliver calibrated test signals at baseband, IF, and RF frequencies up to 6 GHz.
- The Agilent/HP E4438C ESG Vector Signal Generator provides an internal baseband generator with arbitrary waveform and real-time I/Q capabilities, ample waveform playback and memory memory, and a wide RF modulation bandwidth to test today's complex wireless systems and their components.
- The Agilent / HP E4438C ESG Vector Signal Generator is an adaptable platform with optional features to customize instrumentation for baseband and RF test applications, ranging from simple distortion testing and general troubleshooting to baseband coding algorithm development, advanced transceiver design verification, and high-volume manufacturing.
- The modular architecture of the Agilent/HP E4438C ESG Vector Signal Generator makes it easy to configure the instrument to achieve the level of performance and signal creation you need today, with the option to upgrade in the future.
Signal Characteristics
- 250 kHz to 1, 2, 3,4, or 6 GHz
- +17 dBm output power
- <-134 dBc phase noise at 1 GHz and 20 kHz offset typical
Modulation and Sweep
- AM, FM, ØM, and pulse
- ASK, FSK, MSK, PSK, QAM, custom I/Q
- Step, or list, frequency and power
Baseband Generation and Signal Creation
- 80 MHz dual mode internal baseband generator: arbitrary waveform and real-time I/Q
- 64 MSa playback memory and 1 GSa storage
- Create reference signals: LTE, HSPA+, WiMAX™, WLAN, DVB-H, GPS, MATLAB and more - Signal Studio
- Multi-channel baseband generation with N5102A Digital I/O, MIMO fading and RF to RF fading with PXB Baseband Generator and Channel Emulator
Automation and Communication Interface
- 10BaseT LAN and GPIB
- SCPI and IVI-COM drivers
- Backwards compatible with ESG, PSG and 8648 signal generators

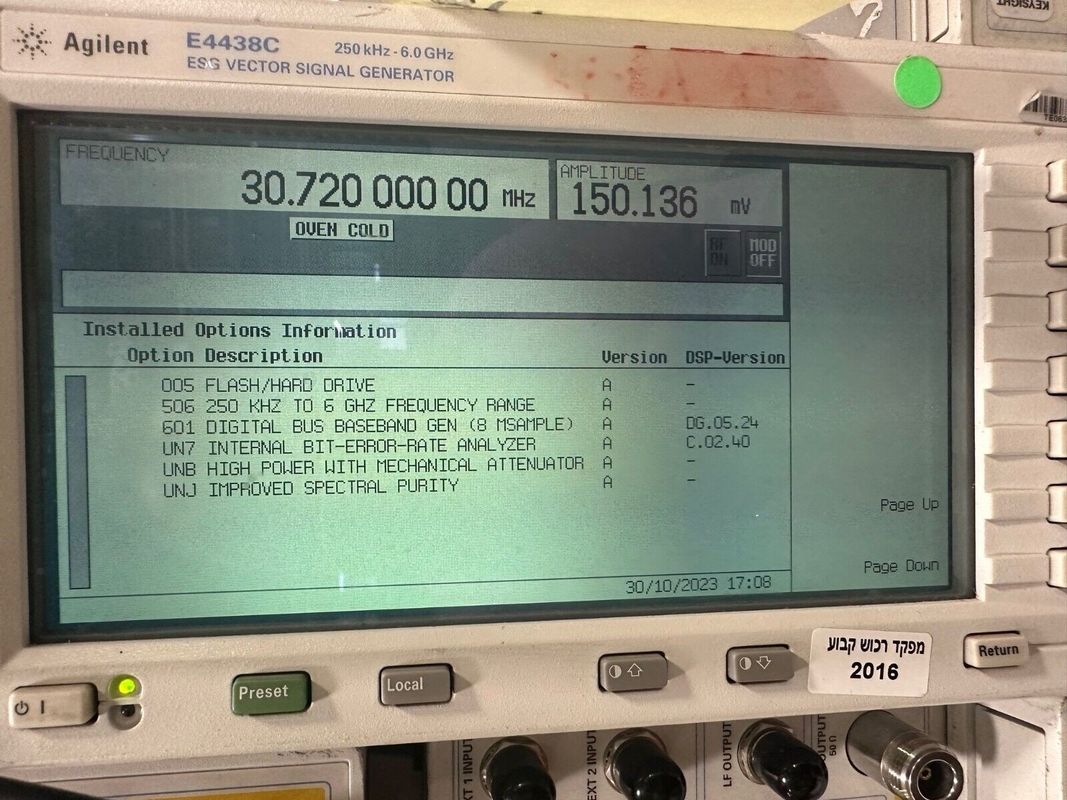

List of Options
| 001 | Internal Base Band Generator w/1 MRAM updated to 601 |
| 002 | Internal Base Band Generator w/ 32 MRAM updated to 602 |
| 003 | Enables ESG digital output connectivity with N5102A |
| 004 | Enables ESG digital input connectivity with N5102A |
| 005 | Hard Drive 6 Gbyte |
| 0BV | Service Documentation, Component Level |
| 0BW | Service Documentation, Assembly Level |
| 1A7 | ESG-C Series ISO 17025 compliant calibration with test data |
| 1CM | Rack mount without handle |
| 1CN | Handle kit |
| 1CP | Rackmount kit with front handles |
| 1E5 | |
| 1E5 | High-stability time-base |

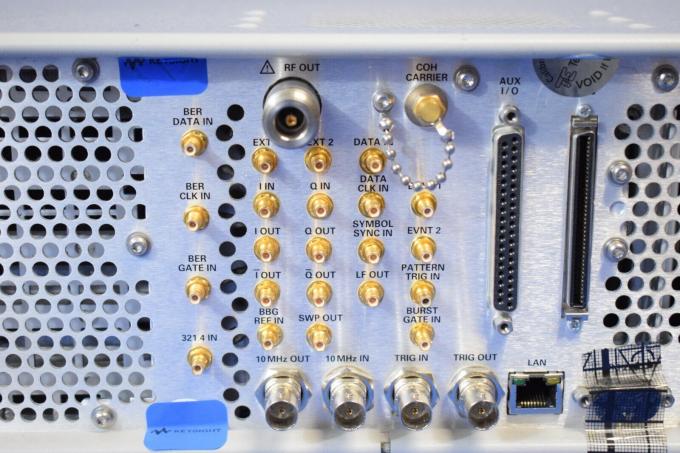

| 1EM | Moves all front panel connectors to rear panel |
| 221 | Waveform license 5-pack1 |
| 222 | Waveform license 5-pack2 |
| 223 | Waveform license 5-pack3 |
| 224 | Waveform license 5-pack4 |
| 225 | Waveform license 5-pack5 |
| 226 | Waveform license 5-pack6 |
| 227 | Waveform license 5-pack7 |
| 228 | Waveform license 5-pack8 |
| 229 | Waveform license 5-pack9 |
| 250 | Waveform license 50-pack1 |
| 251 | Waveform license 50-pack2 |
| 252 | Waveform license 50-pack3 |
| 253 | Waveform license 50-pack4 |
| 254 | Waveform license 50-pack5 |
| 255 | Waveform license 50-pack6 |
| 256 | Waveform license 50-pack7 |
| 257 | Waveform license 50-pack8 |
| 258 | Waveform license 50-pack9 |
| 259 | Waveform license 50-pack10 |
| 300 | GSM/EDGE basestation loop back BER test capability |
| 400 | WCDMA 3GPP (FDD) personalities |
| 401 | CDMA2000 and IS-95-A personalities |
| 402 | TDMA personalities (GSM, EDGE, NADC, PDC, PHS, DECT, TETRA) |
| 403 | Calibrated noise personalities |
| 404 | 1XEV-DO Signal Studio Software |
| 405 | P/O Wireless Lan Package opt 417 |
| 406 | Bluetooth Signal Studio S/W |
| 407 | Signal Studio for S-DMB |
| 408 | Signal Studio for Enhanced Multi-tone signals |
| 409 | GPS personality |
| 410 | P/O Wireless Lan Package OPT 417 |
| 411 | Signal Studio for TD-SCDMA (TSM) |
| 412 | |
| 414 | Option Package of 401 and 404 |
| 415 | Part of Option 417 WLAN Software Suite. |
| 417 | Signal Studio for 802.11 WLAN consists of Opt 405/410/415 |
| 418 | Signal Studio for HSDPA over W-CDMA |
| 419 | Signal Studio for 3GPP W-CDMA HSPA |
| 420 | Signal Studio for Pulse Building |
| 421 | Signal Studio for noise power ratio (NPR) |
| 422 | Scenario generator for GPS personality |
| 423 | |
| 501 | 250kHz to 1 GHz |
| 502 | 250kHz to 2 GHz |
| 503 | 250kHz to 3 GHz |
| 504 | 250kHz to 4 GHz |
| 506 | 250kHz to 6GHz |
| 601 | Internal baseband generator, 8 Msa memory with digital bus capability |
| 602 | Internal baseband generator, 64 Msa memory with digital bus capability |
| 701 | Standard Chassis |
| 702 | IEM Chassis |
| 703 | UN7 Chassis |
| 704 | UNB Chassis |
| 705 | Standard and 005 chassis |
| 706 | 1EM and 005 chassis |
| 707 | UN7 and 005 chassis |
| 708 | UNB and 005 chassis |
| 709 | UN7 and 300 Chassis |
| 710 | UN7 and 300 and 005 Chassis |
| 711 | UN7 and UNB Chassis |
| 712 | UN7 and UNB and 005 Chassis |
| 713 | 506 and UN7 Chassis |
| 714 | 506 and UN7 and 005 Chassis |
| 715 | 506 Chassis |
| 716 | 506 and 005 Chassis |
| 717 | 1EM and UN7 and 300 Chassis |
| 718 | 1EM and UN7 and 300 and 005 Chassis |
| 719 | 1EM and UN7 Chassis |
| 720 | 1EM and UN7 and 005 Chassis |
| 730 | MATERIAL FOR UNM + HCC |
| 731 | MATERIAL FOR 1EM + HCC |
| 791 | Implied by E4438C-OC-SOFTWR |
| 792 | Implied by E4438C-300 |
| A6J | ESG-C Series ANSI Z540 compliant calibration with test data |
| AB0 | Taiwan Quick Users Guide (Chinese localization) |
| AB1 | Korea Quick Users Guide (Korean localization) |
| AB2 | China Quick Users Guide (Chinese localization) |
| ABA | U.S. Quick Users Guide (English localization) |
| ABF | France Quick Users Guide (French localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| CD1 | CD-ROM - English documentation set |
| D01 | Hardware option for E4438C |
| D02 | Hardware option for E4438C |
| D03 | Hardware option for E4438C |
| D04 | Hardware option for E4438C |
| D05 | Hardware option for E4438C |
| D06 | Hardware option for E4438C |
| D07 | Hardware option for E4438C; 503,1EM,UNB,UNP,1E5 |
| D08 | Hardware option for E4438C; 503,1EM,UNB,UNJ,1E5 |
| D09 | Hardware option for E4438C; 504,UNM,UNN,UNP,1E5 |
| D10 | Hardware option for E4438C; 504,UNM,UNN,UNJ,1E5 |
| D11 | Hardware option for E4438C; 504,UNM,UNB,UNP,1E5 |
| D12 | Hardware option for E4438C; 504,UNM,UNB,UNJ,1E5 |
| D13 | Hardware option for E4438C (504/1EM/UNN/UNP/1E5) |
| D14 | Hardware option for E4438C (504/1EM/UNN/UNJ/1E5) |
| D15 | Hardware option for E4438C (504/1EM/UNB/UNP/1E5) |
| D16 | Hardware option for E4438C (504/1EM/UNB/UNJ/1E5) |
| D17 | Hardware option for E4438C (506/UNM/UNB/UNJ/1E5) |
| D18 | Hardware option for E4438C (506/1EM/UNB/UNJ/1E5) |
| H08 | enchancement to E4438C-408 |
| H13 | Signal Studio for WiMAX for Wireless MAN-OFDM physical layer |
| H14 | Improved Phase Noise performance for a specific frequency |
| H16 | Warranted +16dBm maximum leveled RF output over 250MHz to 3GHz with option 506 |
| H20 | Signal studio for pulse building for the E8267C opt. 420 to operate in the E4438C |
| H25 | Extends the lower limit to Swept-Sine frequency to 25 MHz for LF Out |
| H3V | Increases the I/Q output voltage from 1.5V pk-pk to 3.0V pk-pk for the E4438C |
| H58 | Provide ACLR <= 58db for multi-carrier WCDMA |
| HA3 | Tested 100 Hz phase noise at 6 GHz and 100 Hz spurs at 5.18 GHz |
| HA6 | Provide ACLR less than= - 60dbc for muti-carrier WCDMA |
| HA7 | Specify Non-harmonics for frequency 136 MHz to 174 MHz to be less than -75 dBc |
| HBC | Provides frequency from 4GHz up to 6GHz In and Out on the rear panel |
| HCC | .25 - 4 GHZ in/out on rear panel for Phase Coherent Carriers |
| HDS | Provides synchronized DSIM device clock |
| HEC | External Clock Input for synchronization of two or more ESG baseband generators |
| HEC | Provides External BBG Clock Input on Rear Panel |
| HF8 | Extends the Frequency to 6.5 GHz for the E4438C with unspecified performance |
| HM3 | 2nd BaseBand Generator, 8 MSA Memory with I/Q summing ratio and freq offset. |
| HM4 | 2nd BaseBand Generator, 64 MSA Memory with I/Q summing ratio and freq offset. |
| HP3 | Second internal baseband generator for polar modulation with synchronization between two baseband generators, 8 Msa memory |
| HP4 | Second internal baseband generator for polar modulation with synchronization between two baseband generators, 64 Msa memory |
| LIC | License CD-ROM |
| N5102A | BROADBAND STUDIO DIG SIGNAL MODULE |
| N6171A | MATLAB Software |
| N6171A-M01 | MATLAB - Basic Package |
| N6171A-M02 | MATLAB - Standard Package |
| N6171A-M03 | MATLAB - Advanced Package |
| N7060A-101 | Signal Studio for 3GPP W-CDMA with HDSP/HSUPA |
| N7600B | Signal Studio for 3GPP W-CDMA FDD |
| N7600B-1F1 | Connect to E4438C signal generator, fixed, 1 month license |
| N7600B-1FP | Connect to E4438C signal generator, fixed, perpetual license |
| N7600B-1TP | Connect to E4438C signal generator, transportable, perpetual license |
| N7600B-2F1 | Connect to E8267D signal generator, fixed, 1 month license |
| N7600B-2FP | Connect to E8267D signal generator, fixed, perpetual license |
| N7600B-2TP | Connect to E8267D signal generator, transportable, perpetual license |
| N7600B-3F1 | Connect to N5162A/N5182A signal generator, fixed, 1 month license |
| N7600B-3FP | Connect to N5162A/N5182A signal generator, fixed, perpetual license |
| N7600B-3TP | Connect to N5162A/N5182A signal generator, transportable, perpetual license |
| N7601A-SW1 | 1XEV-DO REV.A |
| N7601B | Signal Studio for 3GPP2 CDMA |
| N7602B | Signal Studio for GSM/EDGE |
| N7612A-101 | Signal Studio for TD-SCDMA (LCR) |
| N7613A-101 | Signal Studio for 802.16-2004 WiMAX |
| N7615A-101 | Signal Studio for 802.16 OFDMA |
| N7615B | Signal Studio for 802.16 WiMAX |
| N7616A-101 | Signal Studio for T-DMB |
| N7620A | Signal Studio for pulse building |
| N7620A-101 | License: Internal baseband generator, E4438C |
| N7621-EFP | Enhanced Multitone, fixed, perpetual license |
| N7621-ETP | Enhanced Multitone, transportable, perpetual license |
| N7622A | Signal Studio Kit |
| N7623A-101 | Signal Studio for DVB |
| QUO | N7617B-1FP 802.11 WLAN - connect to E4438C signalá generator, fixed, perpetual license |
| R-50C-011-3 | Agilent Calibration - 3 years |
| R-51B-001-3C | Return to Agilent Warranty - 3 years |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| SK1 | SW KIT- Pre-Installed SW LIC Notice |
| SK2 | SW KIT- SW CD, Pre-Installed SW LIC Notice |
| SP1 | Provides jitter injection for signal studio software |
| SP2 | Provides dynamic sequencing capability in the E4438C |
| U03 | R2C: Core FW Enhancements C.05.84 |
| UBN | |
| UK6 | Commercial calibration certificate with test data |
| UN7 | Internal Bit Error Rate analyzer |
| UNB | High output power with mechanical attenuator |
| UNJ | Enhanced phase noise performance [includes 1E5] |
| UNM | Standard Front and Rear Panel Connector Configuration |
| UNN | Standard output power with electronic attenuator |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
