Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe

Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe

  • Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe
  • Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe
  • Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe
Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe
Product Details:
Place of Origin: USA
Brand Name: Keysight (Agilent)
Certification: ce
Model Number: N2873A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Product Name: Passive Probe Bandwidth: 500 MHz
Pattenuation Ratio: 10:1 Condition: Pre-Owned
Functions: Tested, In Full Working Conditions Scope Compensation Range: 10 – 25 PF
High Light:

General Purpose Keysight N2873A Passive Probe

,

Keysight N2873A Passive Probe

,

500 MHz Keysight N2873A Passive Probe

Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M



Description of Keysight N2873A Passive Probe



The N2873A passive probe offers DC to 500 MHz and 10:1 attenuation factor to address a wide range of measurement needs.

Compact 2.5-mm probe head diameter, low input capacitance, and various fine-pitch probe tip accessories make the Agilent N2870A Series passive probes ideal for probing densely populated IC components or surface-mount devices used in today’s high-speed digital applications.

The sharp probe tip is spring loaded to help engineers keep the probe from slipping off the device under test. Insulating IC caps keep the small probe tip centered on the IC lead and keep it from shorting adjacent leads. Standard flat blade ground connector and self-adhesive copper ground pad help reduce ground inductance while offering easy ground access. Optional probe tip accessories provide specialized capabilities for demanding applications.

Compatible with Agilent InfiniiVision and Infiniium Series oscilloscopes with 1 M? input. This probe ships with Agilent’s 9000 Series Infiniium oscilloscope.


Features:

  • 500 MHz bandwidth
  • 10:1 attenuation ratio
  • 9.5 pF input capacitance
  • 10 M? input resistance (when terminated into 1 M? scope input)
  • 400 V CAT I and 300 V CAT II maximum input voltage
  • Scope compensation range: 10 – 25 pF



FAQ
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.

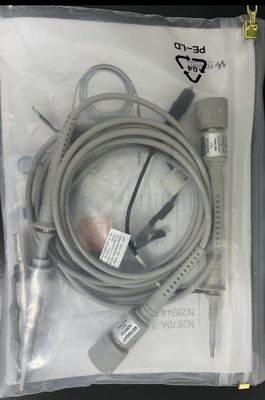

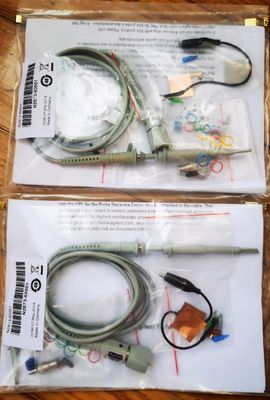

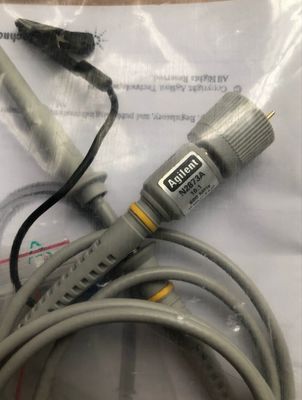

Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe 0Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe 1Tested Keysight N2873A Passive Probe 10:1 500 MHz 1.3 M General Purpose Passive Probe 2
