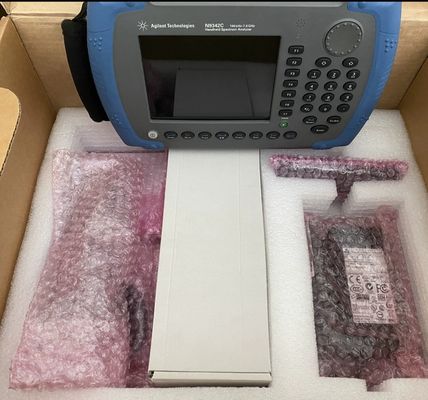

Tested Pre Owened Portable Keysight N9342C FieldFox Handheld Spectrum Analyzer (HSA) 7 GHz

Tested Pre Owened Portable Keysight N9342C FieldFox Handheld Spectrum Analyzer (HSA) 7 GHz

  • Tested Pre Owened Portable Keysight N9342C FieldFox Handheld Spectrum Analyzer (HSA) 7 GHz
  • Tested Pre Owened Portable Keysight N9342C FieldFox Handheld Spectrum Analyzer (HSA) 7 GHz
  • Tested Pre Owened Portable Keysight N9342C FieldFox Handheld Spectrum Analyzer (HSA) 7 GHz
Tested Pre Owened Portable Keysight N9342C FieldFox Handheld Spectrum Analyzer (HSA) 7 GHz
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight
Model Number: N9342C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Handheld RF Analyzer Frequency: 100 KHz To 7 GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Portable: Yes Number Of Built-In Ports: 2 Ports
High Light:

Portable Handheld Spectrum Analyzer

,

Keysight N9342C Handheld Spectrum Analyzer

,

7 GHz Handheld Spectrum Analyzer

Portable Keysight (Agilent) N9342C Handheld Spectrum Analyzer (HSA), 7 GHz





Description of  Keysight Agilent N9342C



Spectrum analyzer

  • 9 kHz to 7 GHz
  • –152 dBm displayed average noise level (DANL)
  • ±1.5 dB amplitude accuracy
  • < 0.4 s sweep time for 7 GHz full span

Tracking generator (TG), cable and antenna tester (CAT)

  • 5 MHz to 7 GHz
  • TG output level: –20 to 0 dBm, 1 dB step
  • Built-in GPS receiver and GPS antenna
  • CAT: Distance-to-fault (DTF), return loss, cable loss

Measurements

  • Channel scanner and spectrum monitor for site survey and interference analysis
  • High-accuracy peak and average power measurement with Keysight U2000 Series and U2020 X-Series USB power sensors
  • AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis
  • Baseband input offers improved performance between 3 kHz and 12 MHz and enables xDSL and AM/FM IBOC measurements

HSA instrument attributes

  • Standard 3-year warranty
  • Battery life: 4 hours
  • Weight: 3.2 kg or 7 lbs
  • Operating temperature: –10 to +50 ºC (14 to 131 ºF)

If you are making measurements in the field, the Keysight N9342C handheld spectrum analyzer (HSA) makes your job easier. MIL PRF 28800 Class 2 compliant, it has the features you need for operating in tough field environments and its measurement performance gives you confidence the job’s been done right. The N9342C HSA lets you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Keysight N9342C HSA.

  • Get field-ready features - rugged and fanless design, clear viewing both day and night
  • Gain confidence in your measurements with benchtop performance in a handheld instrument
  • Reduce test setup time by 95% using the innovative task planner option



List of Options
1DN Automotive 12V DC charger
1TC Hard transit case
ADP Spare AC/DC adaptor
AMA AM/FM modulation analysis
BAT Spare battery pack
BB1 Baseband input
BCG External battery charger
CA7 Cable and antenna test, 7 GHz; Requires option TG7
DMA ASK/FSK modulation analysis
GPA External GPS antenna, SMA-M connector
GPS Built-in GPS receiver, with built-in GPS antenna
N9311X RF and Microwave Accessory Kit for Low-Cost Benchtop and Handheld Analyzers
PA7 Pre-amplifier, 100 KHz to 7.0 GHz
PLG Continental European power cord - only for EU DISTR W MULT PWR Cord standards
PWM USB average power sensor support (U2000 series)
PWP Peak and average power sensor support (U2020 X-series)
SCC Ergonomic soft carrying case with backpack and shoulder strap
SCN Channel scanner
SEC Security features
SIM Spectrum monitor with spectrogram record and playback
TAD Adaptor Type-N(m) 50 Ohm to Type-N (f) 75 Ohm DC to 1 GHz
TG7 Tracking generator, 5 MHz to 7.0 GHz
TMG Time-gated spectrum analysis
TPN Task planner for test automation
UK6 Commercial calibration certificate with test data





FAQ:

1.Can you ship order to Canada or Australia ?

    Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

    100% T/T payment before shipment.

4. How can I ask any other question ?

    You can contact us online or leave us messages below.
