| Place of Origin: | German |
| Brand Name: | Rohde & Schwarz |
| Certification: | ISO17025 |
| Model Number: | SMBV100A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1~3 Working Days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | In Stock |
| Frequency: | 6 GHz | Form Factor: | Benchtop |
|---|---|---|---|
| Modulation: | Pulse ( /K22 /K23 /K6 ) | Condition: | Used But Good Working |
| High Light: | up to 6 GHz Vector Signal Generator,SMBV100A Vector Signal Generator |
||

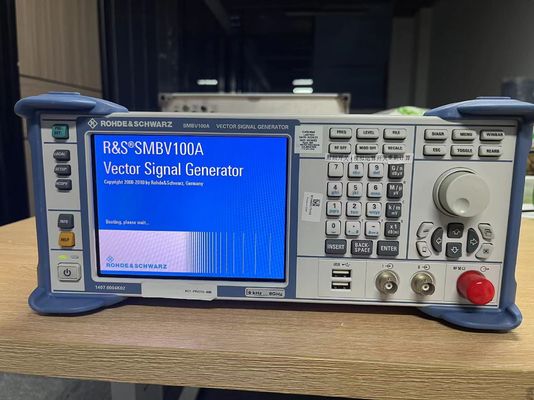

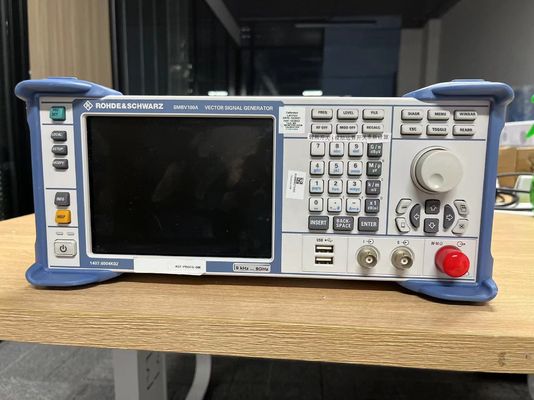

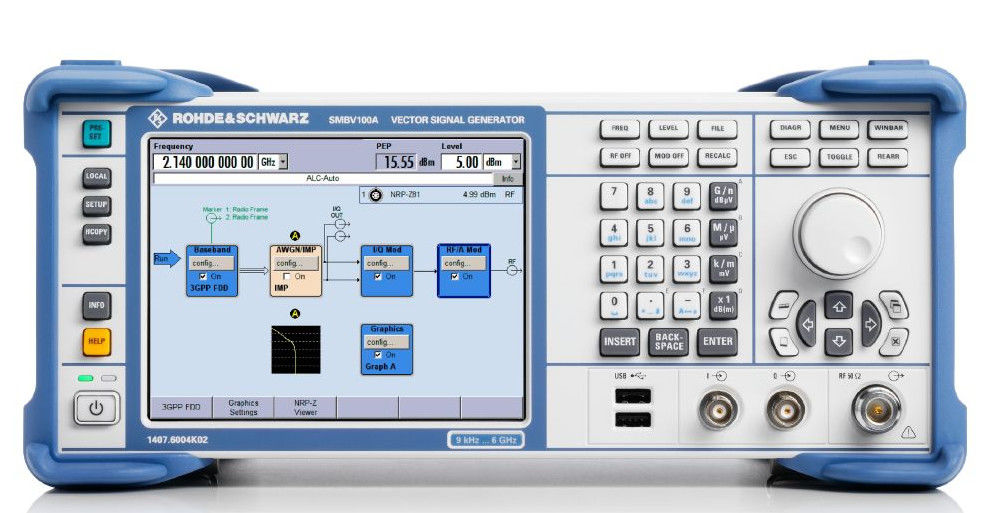

R&S SMBV100A Vector Signal Generator, up to 6 GHz, Generating signals
The Description of R&S SMBV100A Vector Signal Generator
The R&S®SMBV100A offers excellent RF performance along with very high output level and short setting times. At the same time, the R&S®SMBV100A can be equipped with an internal baseband generator to allow generation of a number of digital standards (e.g. WiMAX, HSPA+, LTE). The wide frequency range from 9 kHz to 6 GHz covers all of the important bands for digital modulation.
The R&S®SMBV100A has also been designed for ease of servicing. Together with its scalability, this helps to ensure very low cost of ownership. The instrument’s compact size and graphical user interface for intuitive operation help to fulfill all possible requirements.
These features make the R&S®SMBV100A ideal in development applications as well as in production and service. This instrument truly does the job wherever signals with digital modulation are needed.
| 00A-C5 | Five years of standard depot calibration coverage based on the R&S recommended calibration interval - includes test data. |
| 00A-R3 | Three years of depot repair coverage, including standard recalibration and test data if necessary to complete the repair. |
| 00A-R5 | Five years of depot repair coverage, including standard recalibration and test data if necessary to complete the repair. |
| B1 | Reference oscillator OCXO |
| B10 | Baseband generator. Includes digital modulation (real time) and ARB (32M Samples), 120MHz RF band wi |
| B103 | Frequency range 9kHz to 3.2GHz (factory fit only) |
| B106 | Frequency range 9KHz to 6GHz (factory fit only) |
| B1H | OCXO high performance (hardware option) |
| B1H | High Performance OCXO |
| B32 | Ultra high output power |
| B50 | Baseband generator. ARB only (32MSamples), 120MHz RF band width |
| B51 | Baseband generator. ARB only (32MSamples), 60MHz RF band width |
| B55 | Memory extension for ARB to 256MSamples Requires SMBV-B92 |
| B90 | Phase Coherence (factory fitted only) |
| B92 | Hard disc |
| C5 | Five years of standard depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 1additional depot calibration(s). |
| DCV-2 | Documentation of calibration values |
| DCV-ZP | Printout of DCV (additional, in combination with DCV-Option only) |
| DKD | SMBV100A DKD(ISO17025)calibration including ISO 9000 calibration (order only with device) |
| K18 | Digital baseband connectivity, according to R&S Digital IQ Interface (SMBV-B10/B50/B51 required) |
| K22 | Pulse modulator |
| K23 | Pulse generator |
| K240 | Digital standard GSM/EDGE (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K241 | Digital standard EDGE Evolution (SMBV-K240 and external PC software WinIQSIM2 required) |
| K242 | Digital standard 3GPP FDD (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K243 | 3GPP FDD enhanced MS/BS tests incl. HSDPA (SMBV-B10/B50/B51 + SMBV-K242 + WinIQSIM |
| K244 | Digital standard GPS (SMBV-B10/B50/51 + WinIQSIM2 required) |
| K245 | 3GPP FDD HSUPA (SMBV-B10/B50/B51 + SMBV-K242 + WinIQSIM |
| K246 | Digital standard CDMA2000 incl. 1xEV-DV (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K247 | Digital standard 1xEV-DO Rev.A (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K248 | Digital standard IEEE 801.11 (a/b/g) (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K249 | Digital standard IEEE 802.16 (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K250 | Digital standard TD-SCDMA (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K251 | TD-SCDMA enhanced BS/MS tests (SMBV-B10/B50/B51 + SMBV-K250 + WinIQSIM |
| K252 | Digital standard DVB-H/DVB-T (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K253 | Digital standard DAB/T-DMB, (R&S®SMBV-B10/B50/B51 + R&S®WinIQSIM2 required) |
| K254 | Digital standard IEEE 802.11n (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K255 | Digital standard EUTRA/LTE (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K256 | Playback of XM Radio waveforms (Requires license and waveforms from XM Radio, SMBV-B10/B50/B51 required) |
| K259 | Digital standard HSPA+ (SMBV-K242 or SMBV-K245 + WinIQSIM2 requ |
| K260 | Digital standard Bluetooth Enhanced Data Rate (SMBV-B10/B50/B51 and ext. PC software |
| K261 | Multi carrier CW signal generation (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K262 | Additional white Gaussian noise (SMBV-B10/B50/B51 + WinIQSIM2 required) |
| K268 | Digital standard TETRA Release 2 (R&S®SMBV-B10/B50/B51 |
| K31 | High Power output |
| K352 | HD Radio test waveforms (Ibiquity license for customer required, SMBV-B55 required) |
| K40 | Digital standard GSM/EDGE (SMBV-B10 required) |
| K41 | Digital standard EDGE Evolution (SMBV-K40 required) |
| K42 | Digital standard 3GPP FDD (SMBV-B10 required) |
| K43 | 3GPP FDD enhanced MS/BS tests incl. HSDPA (SMBV-K42 required) |
| K44 | GPS 6 satellites (R&S®SMBV-B10 required) (software license) |
| K45 | 3GPP FDD HSUPA (SMBV-K42 required) |
| K46 | Digital standard CDMA2000 incl. 1xEV-DV (SMB-B10 required) |
| K47 | Digital standard 1xEV-DO Rev.A (SMBV-B10 rwquired) |
| K48 | Digital standard IEEE 802.11(a/b/g) (SMBV-B10 required) |
| K49 | Digital standard IEEE 802.16 (SMBV-B10 required) |
| K50 | Digital standard TD-SCDMA (SMBV-B10 required) |
| K51 | TD-SCDMA enhanced BS/MS tests (SMBV-K50 notwedig) |
| K511 | ARB memory extension to 256 MSamples |
| K52 | Digital standard DVB-H/DVB-T (SMBV-B10 required) |
| K522 | Baseband extension to 160MHz RF bandwidth |
| K53 | Digital standard DAB/T-DMB (R&S®SMBV-B10 required) (software license) |
| K54 | Digital standard IEEE 802.11n (SMBV-B10 required) |
| K55 | Digital standard EUTRA/LTE (SMBV-B10 notwendig) |
| K56 | Digital standard XM Radio (Customer must be licensed by XM Radio, R&S®SMBV-B10 required) |
| K57 | FM Stereo/RDS (R&S®SMBV-B10 required) (software license) |
| K58 | Digital standard Sirius Radio (Customer must be licensed by Sirius, R&S®SMBV-B10 required) |
| K59 | Digital standard HSPA+ (SMBV-K43 or SMBV-K45 required) |
| K6 | Pulse sequencer, external PC software (SMBV-B10/B50/B51 required) |
| K60 | Digital standard Bluetooth Enhanced Data Rate (SMBV-B10 required) |
| K61 | Multi carrier CW signal generation (SMBV-B10 required) |
| K62 | Additional white Gaussian noise (SMBV-B10/B50/B51 required) |
| K65 | Assisted GPS, R&S®SMBV-B10 and R&S®SMBV-K44 required |
| K66 | Galileo 6 satellites, R&S®SMBV-B10 required (software license) |
| K68 | Digital standard TETRA Release 2 (R&S®SMBV-B10 required) |
| K86 | IEEE 802.11ac. |
| K91 | GNSS extension to 12 satellites, R&S®SMBV-B10 and either R&S®SMBVK44 or R&S®SMBV-K66 required |
| K92 | GNSS enhanced (e.g. moving scenarios, multipath), R&S®SMBV-B10 and either |
| K94 | Glonass |
| K95 | Assisted Glonass |
| R3 | Three years of depot repair coverage, including standard recalibration and test data if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| R5 | Five years of depot repair coverage, including standard recalibration and test data if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty. |
| SMBV103 | 9kHz-3.2GHz |
| ZZA-S334 | Adapter for BW2000 3HU 3/4 cabinet with impact protection |
