| Brand Name: | Anritsu |
| Model Number: | MG3692B |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
The MG3690B is the “ideal microwave signal generator” because it offers unsurpassed frequency coverage, leveled output power, spectral purity, switching speed, modulation performance, size, upgradeability, reliability, and service. Our signal generators are configurable for a broad range of applications from R&D to manufacturing and depot repair. Anritsu provides you a total solution including proven reliability and standard 3 year warranty plus pre- and post-sale support that is the best in the industry.
The Anritsu MG3690B series of broadband signal generators covers both RF and microwave frequencies from 0.1 Hz to 70 GHz. For mmW frequencies, the MG3690B’s coverage can be extended up to 325 GHz or beyond, with external multipliers. Thus, the MG3690B series is an ideal signal source for both RF and microwave requirements, fully configurable from simple to high performance applications.
>

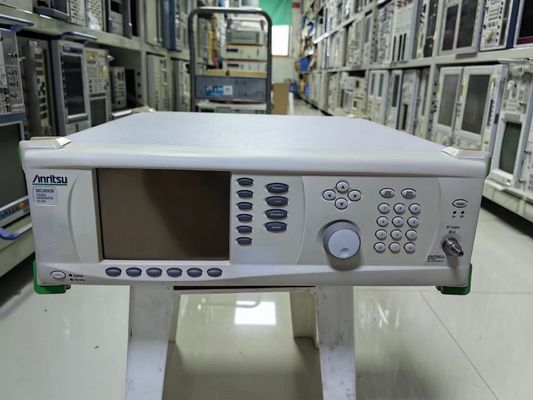

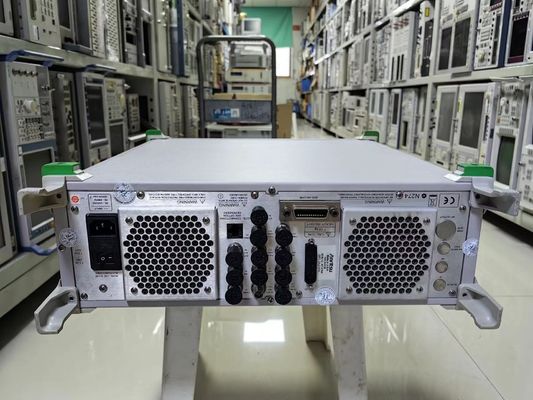

The Anritsu MG3692B covers the frequency range of 2 GHz to 20 GHz.
Warm Up Time:
From Standby: 30 minutes.
From Cold Start (0 deg C): 120 hours to achieve specified frequency stability with aging.
Instruments disconnected from AC line power for more than 72 hours require 30 days to return to specified frequency stability with aging.
Power: 85-264 Vac, 48-440 Hz, 250 VA
maximum Standby: With ac line power connected, unit is placed in standby when front panel power switch is released from the OPERATE position.
Weight: 18 kg maximum Dimensions: 133 H x 429 W x 450 D mm
List of options
| 03 | Ultra Low Phase Noise, main band |
| 04 | RF DOWNCONVERTER .01 to 2.2 GHZ |
| 05 | |
| 06 | Analog Sweep Capability |
| 15A | High Power |
| 1A | RACKMOUNT WITH SLIDES |
| 1B | |
| 26A | External Pulse Modulation |
| 27 | Internal LF and Pulse Generators |
| 28A | Full Modulation Suite |
| 2A | STEP ATTENUATOR |
| SM5815 | 100 MHZ EXT REF LOOP |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.
