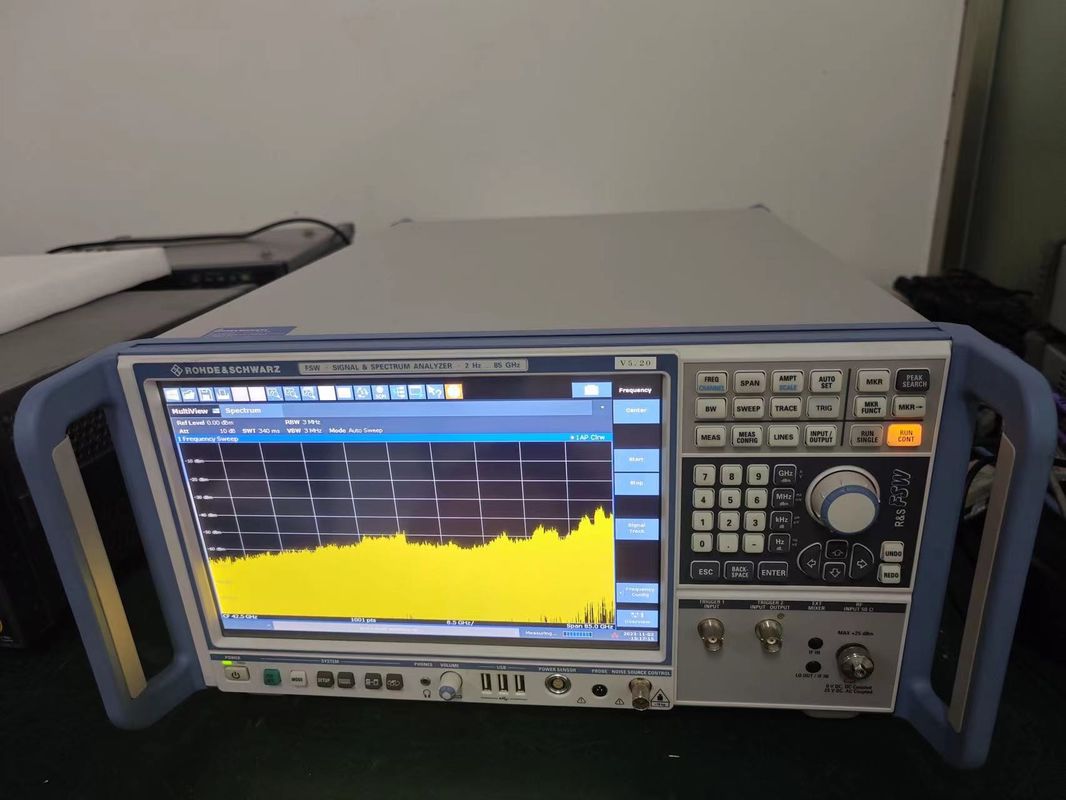

2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85

2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85

  • 2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85
  • 2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85
  • 2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85
  • 2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85
  • 2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85
2Hz-85GHz Signal And RF Spectrum Analyzer Rohde And Schwarz FSW85
Product Details:
Place of Origin: Czech Republic
Brand Name: Rohde and Schwarz
Certification: CNAS
Model Number: FSW85
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 2 Hz To 85 GHz
Form Factor: Benchtop Phase Noise: < –136 DBc (1 Hz) (f = 1 GHz, 10 KHz Offset)
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

2Hz-85GHz RF Spectrum Analyzer

,

r&s fsw85

,

FSW85 RF Spectrum Analyzer

2Hz-85GHz Signal and RF Spectrum Analyzer Rohde And Schwarz FSW85



Description of FSW85 Spectrum Analyzer



The high-performance R&S®FSW signal and spectrum analyzer was developed to meet demanding customer requirements. Offering low phase noise, wide analysis bandwidth and straightforward and intuitive operation, the analyzer makes measurements fast and easy.

Features:

  • Frequency range from 2 Hz to 8/13.6/26.5/43.5/50/67 GHz (with external harmonic mixers from Rohde & Schwarz up to 110 GHz)
  • Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
  • WCDMA/HSPA/HSPA+
  • 3GPP LTE
  • GSM/EGPRS/EDGE Evolution/VAMOS
  • CDMA2000® 1xEV-DO

The Rohde & Schwarz FSW85 takes analysis to the next level, providing capability to measure multiple standards simultaneously. Users can quickly and easily detect and eliminate errors caused by interaction between signals. Various measurements can be displayed simultaneously in separate windows on the large 12.1" screen, which greatly facilitates result interpretation. Rapid identification of spurious emissions, low phase noise, extensive pulse analysis functions and wide analysis bandwidth make the Rohde & Schwarz FSW85 signal and spectrum analyzer an essential tool in the development and production of radar systems.

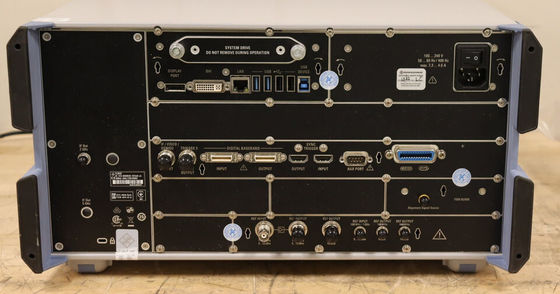

The FSW85 has a modular design, i.e. subassemblies such as the controller, the power supply and the digital backend are inserted into slots on the rear. Optional modules, such as for extending I/Q demodulation bandwidth, are likewise accommodated on the rear. Measurement applications can be activated with a key code. The Rohde & Schwarz FSW85 offers up to 5 GHz analysis bandwidth for measuring wideband-modulated or frequency agile signals. With a sweep rate of up to 800 sweep/s in manual operation and 1000 sweep/s in remote control, the Rohde & Schwarz FSW85 offers performance superior to that of comparable signal and spectrum analyzers.



Specifications for the ROHDE & SCHWARZ FSW85 Signal and Spectrum Analyzer Include:

  • Low phase noise of –137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
  • -88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
  • Up to 5 GHz analysis bandwidth
  • < 0.4 dB total measurement uncertainty up to 8 GHz
  • Real-time analysis up to 512 MHz bandwidth



List of Options
B10
B21
B4
B5000
B512
B90G



FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
