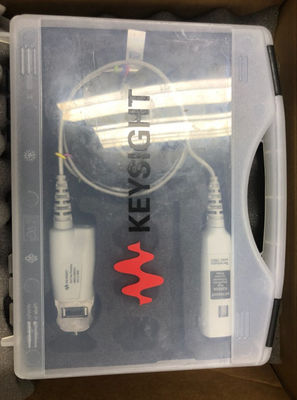

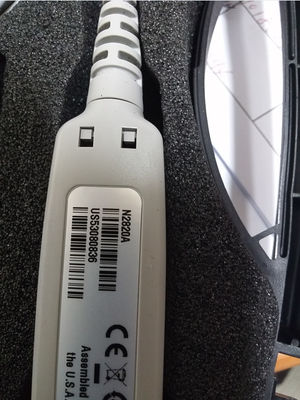

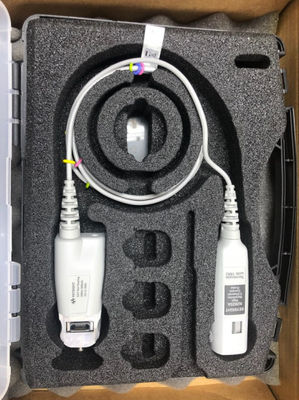

Keysight N2820A 3 MHz/50uA High Sensitivity AC DC Current Probe 2-Channel Battery Powered

Keysight N2820A 3 MHz/50uA High Sensitivity AC DC Current Probe 2-Channel Battery Powered

  • Keysight N2820A 3 MHz/50uA High Sensitivity AC DC Current Probe 2-Channel Battery Powered
  • Keysight N2820A 3 MHz/50uA High Sensitivity AC DC Current Probe 2-Channel Battery Powered
  • Keysight N2820A 3 MHz/50uA High Sensitivity AC DC Current Probe 2-Channel Battery Powered
  • Keysight N2820A 3 MHz/50uA High Sensitivity AC DC Current Probe 2-Channel Battery Powered
Keysight N2820A 3 MHz/50uA High Sensitivity AC DC Current Probe 2-Channel Battery Powered
Product Details:
Place of Origin: USA
Brand Name: Keysight (Agilent)
Certification: ce
Model Number: N2820A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Product Name: USB Power Sensor Frequency Range: 10 MHz
Power Measurements: -60 To +20 DBm Condition: Pre-Owned
Functions: Tested, In Full Working Conditions Form Factor: Plug-In
High Light:

Keysight N2820A AC DC Current Probe

,

Battery Powered N2820A current probe

,

High Sensitivity N2820A current probe

Keysight (Agilent) N2820A 3 MHz/50uA High Sensitivity AC/DC Current Probe (2-ch)



Description of N2820A High Sensitivity AC/DC Current Probe


Industry’s highest sensitivity



  • Minimum current range of 50 uA
  • Maximum current range of 5 A
  • Wide dynamic range of >20,000:1 or 86 dB
  • Bandwidth
  • 3 MHz - zoom-out channel
  • 500 kHz - zoom-in channel



See the details N2820A without losing sight of the big picture



  • Ideal for capturing and analyzing low level current flow in the DUT to characterize sub-circuits or measure current consumption of wireless battery-powered devices or integrated circuits
  • Simultaneous high- and low- gain views of the current waveform for more precise wide dynamic range measurement
  • Probe accessories included with the probe or orderable separately: interchangeable sensor heads, MBB receptacles, headers and hook-up wires.



As modern battery-powered devices and integrated circuits become more green and energy efficient, there is a growing need to make high-sensitivity, low-level current measurements to ensure the current consumption of these devices is in acceptable limits. The N2820A high-sensitivity probe is engineered to make high-dynamic-range, high-sensitivity measurements to meet today’s challenging current measurement needs.

The ultra-sensitive N2820A AC/DC current probe can support measurements from 50 uA to 5 A on Keysight oscilloscopes. The N2820A interface uses a make-before-break (MBB) connector, allowing you to quickly probe multiple locations on your DUT without having to solder or unsolder the leads.

The N2820A 2-channel current probe connects to two oscilloscope channels to provide simultaneous low- and high-gain views for wider dynamic range measurement, while the N2821A 1-channel current probe provides one user-selectable view at a time.

Use N2820A in combination with the 9000 H-Series HD Infiniium oscilloscopes for the ultimate high-definition measurement solution. Use an area-under-the-curve measurement (Charge) on Infiniium oscilloscopes where you can easily calculate the integrated current consumptions over time in Coulombs.



Bandwidth (with N2825A head): 3 MHz (Zoom-Out Channel); 500 kHz (Zoom-In Channel)
Rise time: <0.116µsec (Zoom-Out Channel); 0.7 µsec (Zoom-In Channel)
Min current range N2820A: 100nA (with N2825A user-defined 1 kΩ, 500 mW)
Max current rangeN2820A: 120A (with N2825A user-defined 1.5 mΩ installed, 20 W)
High-sensitivity, high dynamic range AC/DC current probe, connect to 2 oscilloscope channels
Compatible with high impedance AutoProbe interface; Probe powered by scope
Interchangeable Rsense heads included (20 mΩ, 100 mΩ, user-defined: 1 mΩ to 1 MΩ)
Measure current consumption of wireless battery-powered devices or integrated circuits
Simultaneous high/low gain views of current waveform for precise wide
