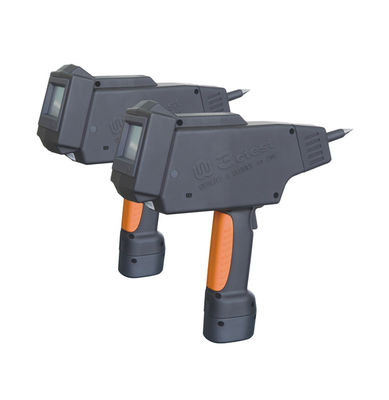

EDS 16H ESD Simulator Gun LCD Touch Screen Handheld ESD Generator

EDS 16H ESD Simulator Gun LCD Touch Screen Handheld ESD Generator

  • EDS 16H ESD Simulator Gun LCD Touch Screen Handheld ESD Generator
  • EDS 16H ESD Simulator Gun LCD Touch Screen Handheld ESD Generator
EDS 16H ESD Simulator Gun LCD Touch Screen Handheld ESD Generator
Product Details:
Place of Origin: CHINA
Brand Name: 3ctest
Certification: IEC/EN 61000-4-2
Model Number: EDS 16H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
High Light:

Handheld ESD Simulator Gun

,

LCD Screen ESD Simulator Gun

,

EDS 16H Handheld ESD Generator

EDS 16H Handheld Electrostatic Discharge Simulator

Profile


The ESD Guns EDS 16H is the state-of-art handheld ESD generator, and the first of its kind independently researched and developed in China.



Feature

The ESD Guns EDS 16H is the state-of-art handheld ESD generator, and the first of its kind independently researched and developed in China. It is designed according to IEC/EN 61000-4-2 with ergonomic design, integration design, battery powered and mains powered via an adaptor. It boasts easy touch screen operation, safe operation with temperature and humidity monitoring, and stable operation suitable from different testing occasions.



Features:

  • Ergonomic design
  • LCD touch screen
  • All-in-one design (no base unit)
  • Changeable R / C networks
  • Automatic polarity switching
  • Long battery life for continuous tests
  • Temperature and humidity monitoring
  • Built-in standards library
  • Intelligent detection of air discharge failure



Parameter EDS 20H

Technical Parameters

Contact Discharge 1 kV – 16.5 kV(±5%)
Air Discharge 1 kV – 16.5 kV(±5%)
Voltage Step 100 V
Hold Time 5 s
Polarity Positive, negative
RC Module LCD display
Humidity &Temperature Built-in hygrothermograph, for recording and protection
Repetition Frequency Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger Mode Manual/automatic
Pulse 1 – 9,999
Contact Discharge 150 pF / 330 Ω
Su Mmary Procedure Test according to different standard levels
Rise Time 0.8 ns ± 25%
Quick Start Test Program Simple and easy to reset data online
Evaluation Procedure Contact discharge test at 20 Hz, evaluate the test points of DUT
Standard Test Procedure According to IEC / EN 61000-4-2

General Parameters

Operating Temperature 15 -35
Operating Humidity 30%-60%
Operating Air Pressure 86 kPa-106 kPa
Operating Power 100 V / 240 V (±10%); 50 / 60Hz;
Default configuration: 220 V, 50 Hz (for Mainland China)
Weight Approx. 8.5 kg
Weight (EDS gun) Approx. 1.8 kg




Standard Accessories

No. Item Model Qty Specification
1 RC Module (Replaceable) EDS 16H-RC 1 150 pF / 330Ω,
2 Discharge Tip EDS 16H-CONT 1 Contact discharge tip,
3 Discharge Tip EDS 20H-AIR 1 Air discharge tip,
4 Battery Charging Module EDS 20H-BATC 1 Containing 6 pcs of 2,600 mAh Ni-MH batteries
5 Power Adaptor EDS 20H-ACDC 1 Used as a substitute of battery pack during long-time tests
6 Grounding Wire / 1 2 m
7 Suitcase / 1 /
8 Quality Guarantee / 1 /
9 Factory Inspection Report / 1 /
10 User Manual / 1 /

Optional Accessories(Not included with host)

No. Item Model Specification
1 RC module (resistance-capacitance module) (same as respective specification) 100 pF / 1500 Ω (EDS)
150 pF / 150 Ω (EDS)
150 pF / 2000 Ω (EDS)
200 pF / 0 Ω (EDS)
330 pF / 2000 Ω (EDS)
330 pF / 330 Ω (EDS)
500 pF / 0 Ω (EDS)
500 pF / 100 Ω (EDS)
500 pF / 500 Ω (EDS)
500 pF / 5000 Ω (EDS)
DMX: as customized.
2 Discharge tip EDS 20H-CONT 150 pF / 330 Ω,
fast relay discharge module;
rise time: 200 ps – 300 ps.
3 Testing table ESDD As per IEC 61000-4-2:
Grounded HV resistance: 2 x 470 k Ω;
Vertical coupling plane: 500 x 500 mm;
Horizontal coupling plane: 1600 x 800 mm;
Reference ground plane: 2700 x 1800 mm;
Testing table: 1600 x 800 x 800 mm, solid wood
4 ESD calibration kits ESD CALA Used for waveform calibration as per IEC / EN61000-4-2, including 2 Ω target / 4 GHz,coaxial cable,user manual
5 Attenuator JZ 602 Resistance: 50 Ω, attenuation: 20 db
6 Attenuator JZ 603 Resistance: 50 Ω, attenuation: 30 db
7 Communication Module EDS 20H-REMOTE Enabling PC control
8 Control Software CoreLab Graphical UI, superior human-machine interactions;
Enriched standards library, easy parameters setting;
Powerful test sequencing and scheduling;
Easy test report generating;
