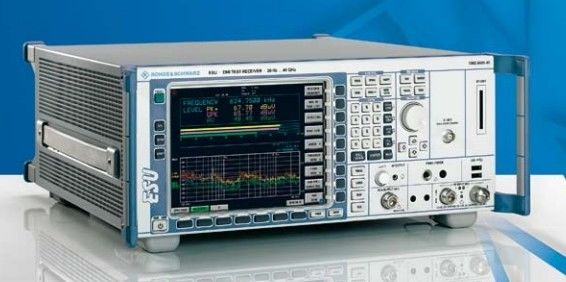

Straightforward R&S®ESU8 EMI Receiver Test 20 Hz To 8 GHz

Straightforward R&S®ESU8 EMI Receiver Test 20 Hz To 8 GHz

  • Straightforward R&S®ESU8 EMI Receiver Test 20 Hz To 8 GHz
Straightforward R&S®ESU8 EMI Receiver Test 20 Hz To 8 GHz
Product Details:
Place of Origin: German
Brand Name: Rohde & Schwarz
Certification: ISO 9001
Model Number: R&S®ESU8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Frequency Range: 20 Hz To 8 GHz Frequency Resolution: 0.01 Hz
Display Range For Frequency Axis: 0 Hz, 10 Hz To Max. Frequency 3 DB Bandwidths: 10 Hz To 10 MHz In 1/2/3/5 Sequence
Display Range: Displayed Noise Floor To 137 DBµV CONDITION: Pre-Owned
FUNCTIONS: Tested, In Full Working Conditions
High Light:

20 Hz EMI Receiver

,

Straightforward EMI Receiver

,

8 GHz EMI Test Receiver

R&S®ESU8 EMI Test Receiver 20 Hz to 8 GHz



Performance features

Frequency ranges from 20 Hz to 8/26.5/40 GHz Excellent RF characteristics Very low measurement uncertainty Full compliance with CISPR16-1-1 standard All commercial and military standards met.



Measurement speed

Extremely short total measurement times with time-domain scan (FFT) option Fast overview measurements in analyzer mode (sweep time min. 2.5 ms) Receiver mode with parallel realtime IF analysis Fast time-domain analysis (resolution starting at 10 µs, monitoring time >2 h) Remote control via GPIB and LAN (Ethernet).



Innovative engineering

All EMC detectors incl. CISPR-AV and CISPR-RMS Fully automatic measurements (preview/final measurement) Integrated report generator (PDF, HTML, RTF file format) Windows XP, USB interfaces e.g. for memory stick Removable hard disk (flash card) optional

  • Leading in performance
  • High measurement speed
  • Simple, well-designed documentation

Straightforward R&S®ESU8 EMI Receiver Test 20 Hz To 8 GHz 0

Straightforward R&S®ESU8 EMI Receiver Test 20 Hz To 8 GHz 1

Straightforward R&S®ESU8 EMI Receiver Test 20 Hz To 8 GHz 2
