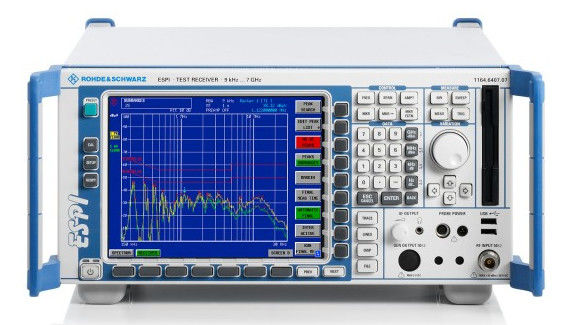

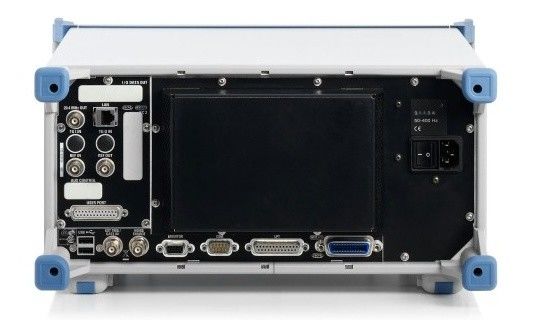

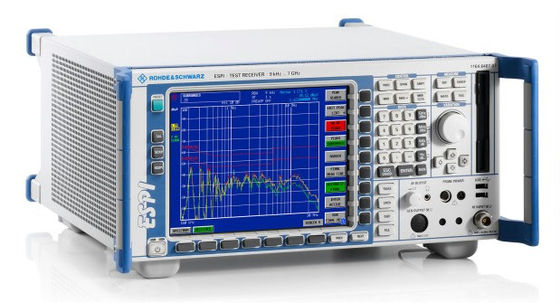

R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz

R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz

  • R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz
  • R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz
  • R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz
R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz
Product Details:
Place of Origin: German
Brand Name: Rohde & Schwarz
Certification: ISO 9001
Model Number: ESPI3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Frequency Range: 9 KHz To 3 GHz Frequency Resolution: 0.01 Hz
External Reference Frequency: 10 MHz 3 DB Bandwidths: 10 Hz To 3 MHz, In Steps Of 1/3/10
EMI Bandwidths 6dB Bandwidths: 200 Hz, 9 KHz, 120 KHz Pulse Bandwidth: 1MHz
Video Bandwidths Analyser Mode: 1Hz To 10MHz, In Steps Of 1/3/10 RF Attenuation ≥ 10dB: 30dBm
High Light:

9kHz EMI Analyzer

,

CISPR EMI Analyzer

,

EMI Test Receiver 3 GHz

R&S®ESPI3 EMI Test Receiver(9kHz to 3 GHz)



The Rohde & Schwarz ESPI-3, which are suitable for all commercial EMI standards in line with CISPR, EN, ETS, FCC, ANSI C63.4, VCCI and VDE, have been specially designed for precompliance measurements in development. The aim is to perform EMC diagnostic measurements on the devices under test as quickly as possible and as accurately as necessary and to document the results. The final compliance test will then be purely a formality. The advantages of test receiver accuracy and selectivity combined with the measurement speed of a spectrum analyzer define the crucial performance features for a new class of test receivers.



Standard-conforming EMI measurements

R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz 0



  • Optional tracking generator 9 kHz to 3 GHz
  • Optional LAN interface
  • Easy generation of reports owing to PC compatibility

R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz 1



R&S®ESPI3 EMI Analyzer Test Receiver 9kHz to 3 GHz 2
