EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact

EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact

  • EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact
  • EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact
  • EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact
  • EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact
  • EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact
EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact
Product Details:
Place of Origin: German
Brand Name: Rohde & Schwarz
Certification: ISO 9001
Model Number: ESL3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: In Stock
Contact Now
Detailed Product Description
Frequency Range: 9 KHz To 3 GHz Measurement Range: –70 DBm To +23 DBm
Amplitude Accuracy: 0.5 DB 1 DB Compression: +5 DBm
RF Input Pulse-resistant: Up To 10 MWs Displayed Average Noise Level With Preamplifier: <–152 DBm (1 Hz)
Resolution Bandwidths: 10 Hz To 10 MHz (–3 DB), 200 Hz, 9 KHz, 120 KHz (–6 DB), 1 MHz (impulse)
High Light:

EN Emc Receiver

,

Compact Emc Receiver

,

EN EMI Test Receiver

R&S®ESL3 EMI test receiver

Compact, cost-effective measuring receiver


The R&S®ESL 3 EMI test receiver combines two instruments in one, measuring EMC disturbances in accordance with the relevant standards and also serving as a full-featured spectrum analyzer for diverse lab applications. The combination of very good RF characteristics and all of the important functions needed for fast, precise measurement and evaluation of the EMC of a device under test in accordance with commercial standards is unmatched in this instrument class. The diverse analysis capabilities, high measurement speed and time-saving automated test routines make the R&S®ESL the obvious choice for any development lab with small budget that needs to prepare for EMC certification tests.

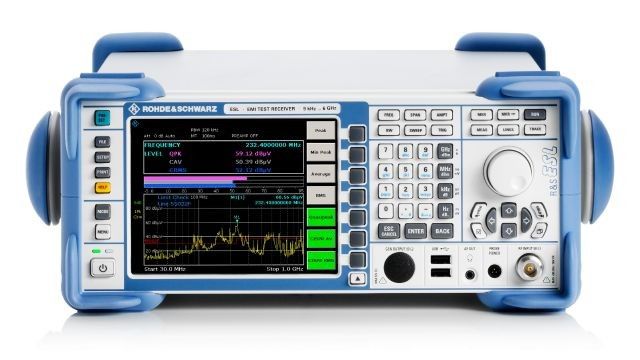

EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact 0



Key Facts:

  • Frequency range from 9 kHz to 3 GHz or 9 kHz to 6 GHz covering almost all commercial EMC standards
  • First-ever combination of an EMI test receiver and spectrum analyzer in the entry-level class
  • All major functions of an advanced EMI test receiver, including fully automated test sequences
  • Weighting detectors: max./min. peak, average, RMS, quasi-peak as well as average with meter time constant (CISPR-Average) and RMS-Average in line with the latest version of CISPR 16-1-1
  • Compact, lightweight instrument, can be battery-powered for mobile applications

EN Emc Receiver R&S®ESL3 9 KHz To 3 GHz Compact 1
