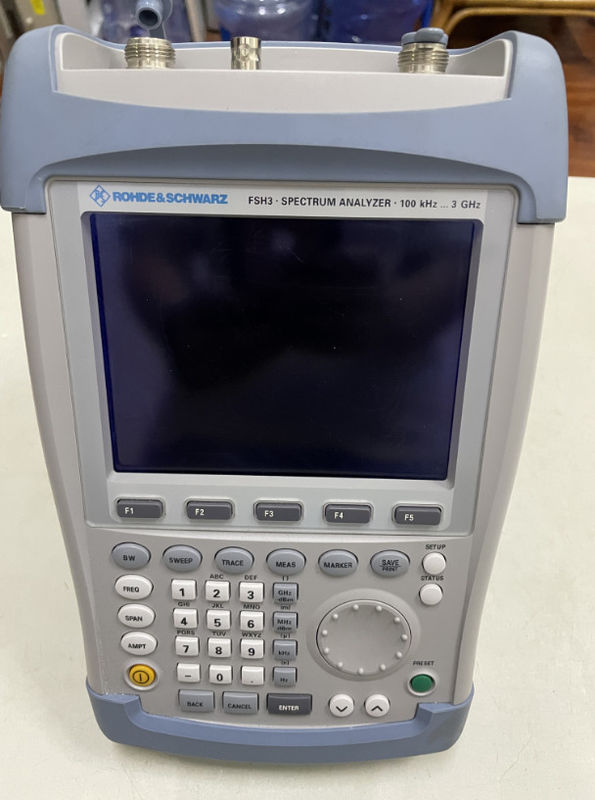

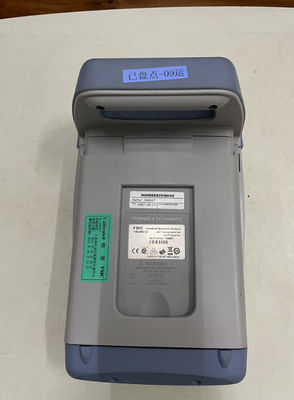

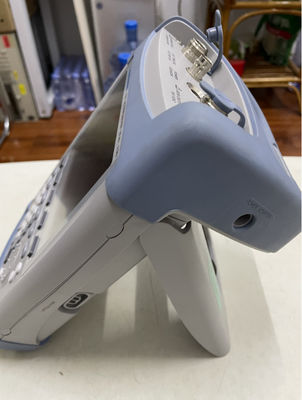

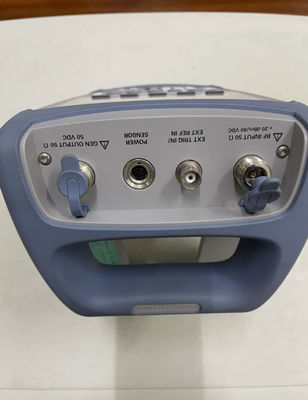

Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz

Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz

  • Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz
  • Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz
  • Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz
  • Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz
Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz
Product Details:
Place of Origin: Japan
Brand Name: R&S
Certification: CE
Model Number: FSH3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 100 KHz To 3 GHz
Form Factor: Portable Rackmount Average Noise Level: -151 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Rohde And Schwarz Spectrum Analyzer Handheld

,

100kHz Spectrum Analyzer Handheld

Rohde and Schwarz FSH3100kHz - 3GHz Spectrum Analyzer Handheld

Description
The FSH is the ideal spectrum analyzer for rapid, high-precision, cost-effective signal investigations. It provides a large number of measurement functions and so can handle anything from the installation or maintenance of a mobile radio base station up to on-site fault location in RF cables as well as development and service - an extensive range of applications. The FSH has been designed as a robust,
portable spectrum analyzer that can be used in the field.

* Frequency range 100 kHz to 3 GHz
* Internal preamplifier with frequency range from 100 kHz to 3 GHz
* Displayed average noise level typ. -135 dBm (RBW 100 Hz)
* High level accuracy: 0.5 dB typ
* Resolution bandwidths 100 Hz to 1 MHz, 1 and 3 steps
* Wide range of detectors: sample, max/min peak, auto peak, RMS



List of Options
C3 Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
DCV-1 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
HZ-15 Probe set for E and H nearfield emissions 30 MHz to 3 GHz
HZ-16 Preamplifier 100 kHz to 3 GHz, 20 dB power supply 100 - 230 V for probe HZ-15
K1 Remote control (via RS-232) for FSH3/6
K3 RECEIVER MODE
R3 Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
R5 Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
RAZ Matching pad 50/75 Ohm, 0 - 2700 MHz, matching at one end, N-connectors
Z1 10 MHz to 8 GHz POWER SENSOR
Z14 Directional power sensor 25 MHz - 1 GHz, 30 mW - 120(300)W N-female for FSHx
Z18 Average power sensor 10 MHz - 18 GHz, 200 pW - 200 mW for FSHx
Z2 VSWR BRIDGE & POWER DIVIDER(50ohm)
Z21 12V CAR ADAPTER
Z22 SERIAL/PARALLEL CONVERTER
Z25 SOFT CARRYING CASE
Z26 TRANSIT CASE
Z32 SPARE BATTERY PACK
Z33 Spare power supply for FSH3/6/18 including mains plug for EU, GB and US
Z34 Optical RS232 interface cable 1.5 m for FSH3/6/18 (spare)
Z35 CD-ROM including FSH view software and manual for FSH3/6/18 (spare)
Z36 Spare headphones for FSH3/6/18, additional haedphones for FSH4/8
Z37 Optical USB interface cable, 1.5 m for FSH3/6/18 (spare)
Z44 Directional power sensor 200 MHz - 4 GHz, 30mW - 120(300) W for FSHx
Specifications & Attributes (Spectrum Analyzers)
Form Factor
Handheld
Portable
Application Software
Cable Fault Location
Phase Noise
Average Noise Level
-135 dBm
Frequency
100 KHz - 3 GHz

Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz 0Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz 1Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz 2Rohde And Schwarz FSH3 Spectrum Analyzer Handheld 100kHz - 3GHz 3



FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .
