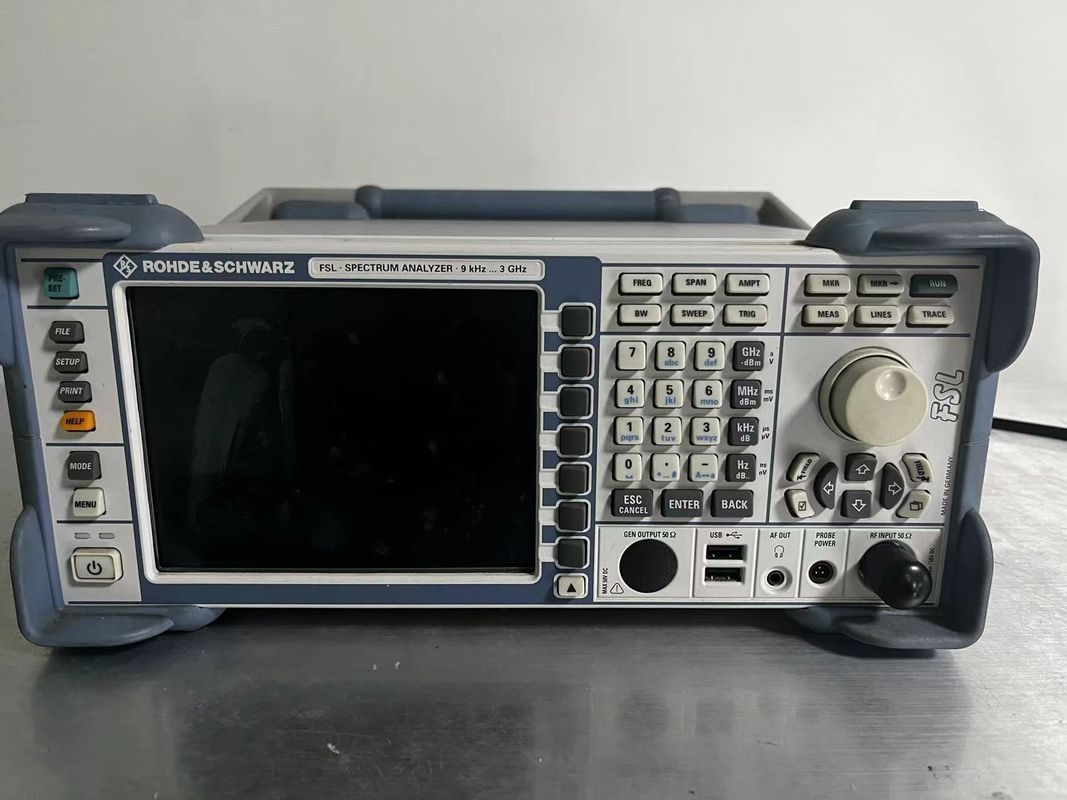

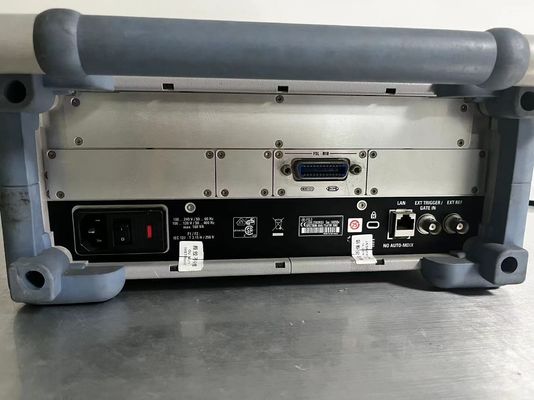

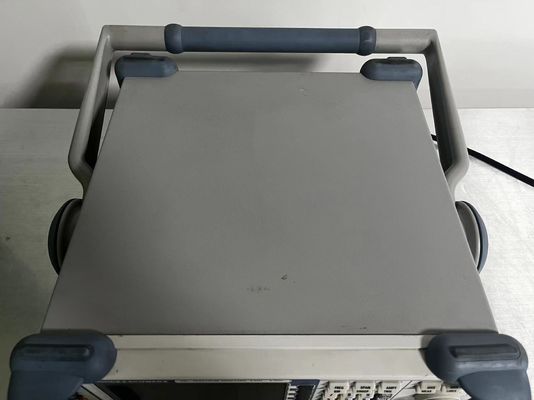

Rohde And Schwarz FSL3 Compact Spectrum Analyzer Lightweight 9kHz-3 GHz

Rohde And Schwarz FSL3 Compact Spectrum Analyzer Lightweight 9kHz-3 GHz

  • Rohde And Schwarz FSL3 Compact Spectrum Analyzer Lightweight 9kHz-3 GHz
  • Rohde And Schwarz FSL3 Compact Spectrum Analyzer Lightweight 9kHz-3 GHz
  • Rohde And Schwarz FSL3 Compact Spectrum Analyzer Lightweight 9kHz-3 GHz
Rohde And Schwarz FSL3 Compact Spectrum Analyzer Lightweight 9kHz-3 GHz
Product Details:
Place of Origin: Germany
Brand Name: Rohde and Schwarz
Model Number: FSL3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyze Frequency: 9 KHz - 3 GHz
Warranty: One Month Average Noise Level: -20 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Form Factor: Benchtop Application Software: Bluetooth Phase Noise
High Light:

Lightweight Compact Spectrum Analyzer

,

3 GHz Compact Spectrum Analyzer

Rohde And Schwarz FSL3 Lightweight and compact Spectrum Analyzer 9kHz-3 GHz



Description

The spectrum analyzer R&S FSL leads its class with respect to its large number of standard functions. The R&S®FSL is an extremely lightweight and compact spectrum analyzer. Its low weight and optional battery/DC power make it the ideal instrument for the lab and in the field. The R&S®FSL features many measurement options for analyzing signals in line with common standards. With an optional tracking generator, scalar network analysis up to 18 GHz is possible.

  • Tracking generator for directional power measurements with Model .13
  • Full choice of detectors: max, min, auto-peak, sample, RMS, average, quasi-peak
  • CP/ACP/fast ACP measurement functions with a host of predefined standards (see ACP screenshot)
  • Time domain power measurement
  • Measurement of carrier-to-noise ratio C/N or C/N0 referenced to 1 Hz or channel bandwidth
  • CCDF: measurement of crest factor and amplitude probability function
  • Automatic test routines for: - Occupied bandwidth (OBW) - Third order intercept point (TOI) - AM modulation depth
  • Adjustable number of trace points, max. 32001
  • Editable limit lines including PASS/FAIL indication
  • Level units: - dBm, dB?V, dBmV, dB?A, dBpW, V, W, A
  • Frequency counter featuring resolution of 1 Hz with measurement time of 50 ms
  • Phase noise and noise marker with dBm/Hz and dBc/Hz results
  • n-dB down functionality for fast determination of bandwidth
  • Channel filters, shape factor <2
  • EMI filters: 200 Hz (optional), 9kHz, 120 kHz
  • FFT filters from 300 Hz to 30 kHz, optional 1Hz to 30 kHz
  • WLAN option for TX measurements on 802.11a, b, g, j signals
  • Firmware option for measurements on Bluetooth transmitters, including EDR
  • USB interface
  • Tracking generator (Freq. 1 MHz to 6 GHz; output -20 dBm to 0 dBm)
Key specifications
Frequency 9 kHz to 3/6/18 GHz
DANL at 1 GHz typ. –160 dBm (preamp ON)
Spurious response < –60 dBc
Analysis bandwidth 28 MHz
Phase noise at 1 GHz (100 kHz offset) typ. –105 dBc (1 Hz)
Total level accuracy < 0.8 dB TOI at 1 GHz typ. +18 dBm (R&S®FSL3/FSL6) typ. +13 dBm (R&S®FSL18) Weight < 8 kg



List of Options
B10 GPIB interface
B22 RF preamplifier, gain 20 dB (software license)
B30 DC power supply 12 - 28 V
B31 NiMH battery pack
B4 OCXO reference frequency
B5 Additional interfaces video/IF-output, power meter 28 V - DC for noise source
B6 TV trigger (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
B7 Narrow resolution filters, 10 Hz - 300 Hz (software license)
B8 Gated sweep function (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
C3 Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
C5 Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
DCV-1 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
DKD FSL3 DKD (ISO17025) calibration incl. ISO 9000 calibration (order only with device)
K14 Spectrogram measurement, application firmware (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K20 Application firmware for cable TV and TV measurements (software license)
K30 Application firmware for noise figure and gain measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K400 RFEX-Launcher for FSL Required for installation and operation of EMF software RFEX on FSL
K7 Analogue demodulation AM/FM/PM (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1) (software license)
K72 3GPP Code Domain Power measurements for base station (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K8 Application firmware for TX measurements acc. to Bluetooth v. 1.1 and 2.0 (EDR) (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K82 CDMA2000® base station analysis (software license)
K84 Analysis of 1xEV-DO base station signals (software license)
K9 Power sensor measurements with NRP (software license)
K91 Application firmware for WLAN 802.11A,B,G measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
K91N Upgrade of FSL-K91 to 802.11n (software license)
K92 Application firmware for WiMAX# 802.16, OFDM measurements (software license)
K92U Upgrade from R&S®FSL-K92 to R&S®FSL-K93 (software license)
K93 Application Firmware for WIMAX# 802.16 OFDM/OFDMA Measurements (for R&S®FSL and R&S®ZVL w. R&S®ZVL-K1)
R3 Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
R3 Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
R5 Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
R5 Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
Z3 Soft carrying bag
Z4 Additional charger unit for FSL-B31. Allows charging the battery without FSL
ZZA-S334 Adapter for BW2000 3HU 3/4 cabinet with impact protection

Your benefits

One instrument for multiple tasks

Can take it with you everywhere

Signal analysis functions



Features

Spectrum analysis

► Power meter

► Analog and digital signal analysis Scalar network analysis

► Carrying handle and low weight

► Optional battery pack

► Optional 12/24 V DC power supply

► Many measurement options for analyzing signals in line with IEEE (WLAN, WiMAX™ and Bluetooth®) and 3GPP standards 1)
